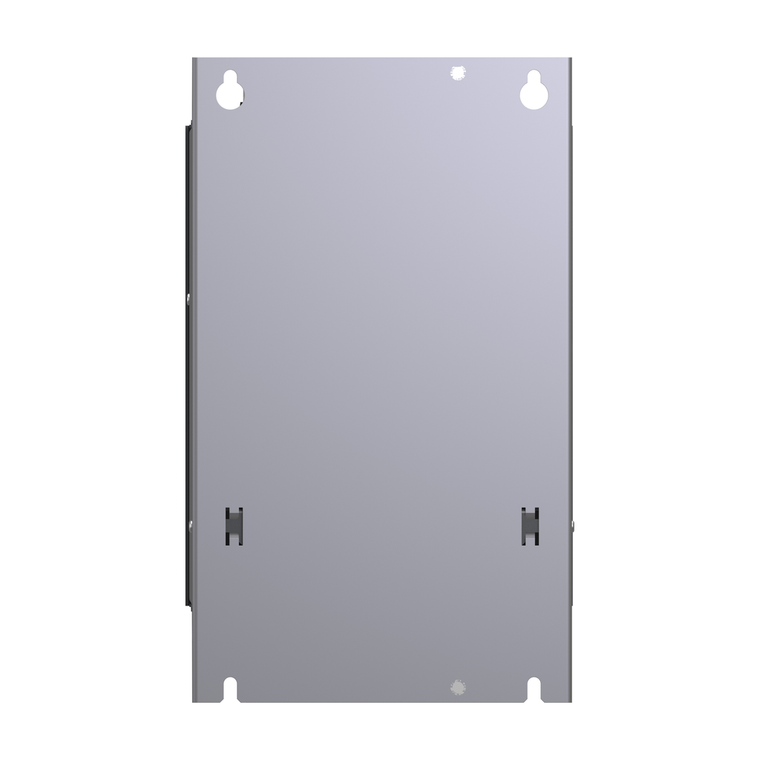

Schneider Electric ATS480C17Y Soft Starter Ats480 170A 208 To 690V

Schneider Electric ATS480C17Y Soft Starter Ats480 170A 208 To 690V

Schneider Electric
SKU:
ATS480C17Y
|
UPC:
3606481089090
Availability:
Contact us to confirm availability and lead times.
$3,276.24
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 170A in normal duty, it supplies motor from 45kW to 160kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 200mm (width) x 272mm (depth) x 340mm (height) and it weighs 12,4kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
Additional Information
Standards:
IEC 60947-4-2 || UL 60947-4-2 || IEC 60664-1
Option Card:
communication module Profibus DP V1 || communication module PROFINET || communication module Modbus TCP/EtherNet/IP || communication module CANopen daisy chain || communication module CANopen Sub-D || communication module CANopen open style
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Power Loss Per Device Current Dependent:
459.0 W
Range Of Product:
Altivar Soft Starter ATS480
Communication Data Link:
serial
Torque Control:
TRUE
Environmental Disclosure:
ENVPEP2009022EN
[In] Rated Current Pwr Loss Specifctn:
170.0 A
Net Weight:
12.4 kg
[Us] Rated Supply Voltage:
208...690 V - 15...10 %
Electromagnetic Compatibility:
conducted and radiated emissions level A IEC 60947-4-2 || conducted and radiated emissions with bypass level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-11 || immunity to electrica
Transmission Rate:
1200...256000 bit/s
Relay Output Type:
relay outputs R1A 1 NO || relay outputs R1B 1 NO || relay outputs RIC NO/NC programmable
Minimum Switching Current:
100 mA 12 V DC relay outputs
Width:
200.0 mm
Relay Output Number:
3
Transmission Frame:
RTU
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
Motor Power Kw:
45.0 kW 230 V in the motor supply line normal duty || 37.0 kW 230 V in the motor supply line heavy duty || 90.0 kW 400 V in the motor supply line normal duty || 75.0 kW 400 V in the motor supply line heavy duty || 90.0 kW 440 V in the motor supply li
Ambient Air Temperature For Operation:
40-60 °C with current derating of 2 % per °C) || -15-40 °C without derating)
Discrete Input Number:
4
[Uimp] Rated Impulse Withstand Voltage:
6 kV
Method Of Access:
slave Modbus serial
Communication Port Protocol:
Modbus serial
Mercury Free:
Yes
Discrete Input Type:
STOP) logic inputs, 3500 Ohm || RUN) logic inputs, 3500 Ohm || DI3) programmable as logic input, 3500 Ohm || DI4) programmable as logic input, 3500 Ohm
Relative Humidity:
0-95 % without condensation or dripping water IEC 60068-2-3
Discrete Output Type:
DQ1) programmable digital output <= 30 V || DQ2) programmable digital output <= 30 V
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Apparent Power:
0.09 kVA
[Ie] Rated Operational Current:
normal duty 170.0 A 40 °C)
Power Loss Static Current Independent:
25.0 W
Physical Interface:
2-wire RS 485
Data Format:
8 bits, configurable odd, even or no parity
Function Available:
external bypass control || pre-heating || smoke extraction || multi-motor cascade || second motor set || user management || ports and services hardening || security event logging || cybersecure firmware update || single direction
Output Current Drift:
150-700 %
Depth:
272.0 mm
Number Of Addresses:
0-227 Modbus serial
Height:
340.0 mm
Type Of Polarization:
no impedance Modbus serial
Product Specific Application:
process and infrastructures
Integrated Motor Overload Protection:
TRUE
Product Or Component Type:
soft starter
Ambient Air Temperature For Storage:
-25-70 °C
Analogue Input Number:
1
Maximum Acceleration Under Shock Load (During Transport):
100 m/s² at 11 ms
Product Certifications:
CE || cULus || CCC || UKCA || RCM || EAC || DNV || ABS || BV || CCS
Rohs Exemption Information:
Yes
Discrete Input Logic:
programmable digital input < 5 V
Maximum Acceleration Under Vibratory Load (During Transport):
15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
[Ui] Rated Insulation Voltage:
690 V
Maximum Deflection Under Vibratory Load (During Storage):
1.75 mm at 2...9 Hz
Display Screen Available:
TRUE
Maximum Acceleration Under Vibratory Load (During Storage):
15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
[Uc] Control Circuit Voltage:
110...250 V AC 50/60 Hz - 15...10 %
Phase:
3 phase
Accuracy Class:
class 10E
Discrete Output Number:
2
Sustainable Offer Status:
Green Premium product
Connector Type:
1 RJ45
Protection Type:
phase failure line || integrated thermal protection motor || thermal protection starter || current overload motor || underload motor || excessive starting time, locked rotor motor || motor phase loss motor || line supply phase loss line || line suppl
China Rohs Regulation:
X
Maximum Acceleration Under Shock Load (During Storage):
100 m/s² at 11 ms
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Utilisation Category:
AC-3A || AC-53A
Ip Degree Of Protection:
IP00
Supply Frequency:
50...60 Hz - 20...20 %
Maximum Permanent Current:
140.0 A at 40 °C heavy duty
Operating Position:
vertical +/- 10 degree
Analogue Output Number:
1
Maximum Horse Power Rating:
50.0 hp 208 V normal duty || 40.0 hp 208 V heavy duty || 60.0 hp 230 V normal duty || 50.0 hp 230 V heavy duty || 125.0 hp 460 V normal duty || 100.0 hp 460 V heavy duty || 150.0 hp 575 V normal duty || 125.0 hp 575 V heavy duty
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Upgradeability:
Upgraded components available
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Maximum Deflection Under Vibratory Load (During Transport):
1.75 mm at 2...9 Hz
Device Short Name:
ATS480
Circularity Profile:
ENVEOLI2009022EN
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Switching Current:
relay outputs 2 A 250 V AC || relay outputs 2 A 30 V DC || relay outputs
Device Connection:
in the motor supply line || to the motor delta terminals
Pollution Degree:
level 3
Product Destination:
asynchronous motors
Marking:
CE || CCC || UKCA || EAC || RCM || cULus
Analogue Output Type:
current output AQ1 0...20 mA or 0...10 V 500 Ohm
