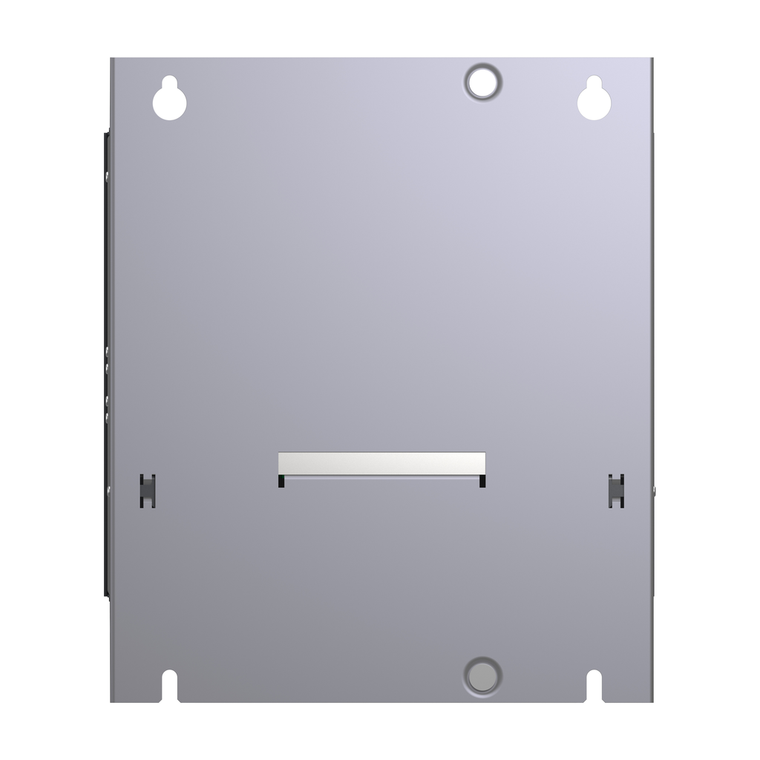

Schneider Electric ATS480C32Y Soft Starter Ats480 320A 208 To 690V

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATS480C32Y Soft Starter Ats480 320A 208 To 690V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATS480C32Y

UPC:

3606481089120

MPN:

Condition:

New

Phase:

3 phase

Pollution Degree:

level 3

Ambient Air Temperature For Storage:

-25-70 °C

Connector Type:

1 RJ45

Integrated Motor Overload Protection:

TRUE

Maximum Deflection Under Vibratory Load (During Storage):

1.75 mm at 2...9 Hz

Communication Data Link:

serial

Width:

320.0 mm

Ip Degree Of Protection:

IP00

Transmission Frame:

RTU

Upgradeability:

Upgraded components available

[Uimp] Rated Impulse Withstand Voltage:

6 kV

Relay Output Type:

relay outputs R1A 1 NO || relay outputs R1B 1 NO || relay outputs RIC NO/NC programmable

Number Of Addresses:

0-227 Modbus serial

[Ie] Rated Operational Current:

normal duty 320.0 A 40 °C)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Transmission Rate:

1200...256000 bit/s

Supply Frequency:

50...60 Hz - 20...20 %

Maximum Permanent Current:

250.0 A at 40 °C heavy duty

Electromagnetic Compatibility:

conducted and radiated emissions level A IEC 60947-4-2 || conducted and radiated emissions with bypass level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-11 || immunity to electrica

Output Current Drift:

150-700 %

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Environmental Disclosure:

ENVPEP2009023EN

Ambient Air Temperature For Operation:

40-60 °C with current derating of 2 % per °C) || -15-40 °C without derating)

Range Of Product:

Altivar Soft Starter ATS480

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

[Ui] Rated Insulation Voltage:

690 V

Marking:

CE || CCC || UKCA || EAC || RCM || cULus

Motor Power Kw:

90.0 kW 230 V in the motor supply line normal duty || 75.0 kW 230 V in the motor supply line heavy duty || 160.0 kW 400 V in the motor supply line normal duty || 132.0 kW 400 V in the motor supply line heavy duty || 160.0 kW 440 V in the motor supply

Product Specific Application:

process and infrastructures

Net Weight:

18.2 kg

Data Format:

8 bits, configurable odd, even or no parity

Circularity Profile:

ENVEOLI2009023EN

Depth:

277.0 mm

Height:

380.0 mm

Maximum Acceleration Under Vibratory Load (During Transport):

15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz

Discrete Output Type:

DQ1) programmable digital output <= 30 V || DQ2) programmable digital output <= 30 V

Protection Type:

phase failure line || integrated thermal protection motor || thermal protection starter || current overload motor || underload motor || excessive starting time, locked rotor motor || motor phase loss motor || line supply phase loss line || line suppl

Torque Control:

TRUE

Apparent Power:

0.106 kVA

Function Available:

external bypass control || pre-heating || smoke extraction || multi-motor cascade || second motor set || user management || ports and services hardening || security event logging || cybersecure firmware update || single direction

Option Card:

communication module Profibus DP V1 || communication module PROFINET || communication module Modbus TCP/EtherNet/IP || communication module CANopen daisy chain || communication module CANopen Sub-D || communication module CANopen open style

Analogue Output Type:

current output AQ1 0...20 mA or 0...10 V 500 Ohm

Display Screen Available:

TRUE

Power Loss Per Device Current Dependent:

882.0 W

Maximum Deflection Under Vibratory Load (During Transport):

1.75 mm at 2...9 Hz

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Uc] Control Circuit Voltage:

110...250 V AC 50/60 Hz - 15...10 %

Sustainable Offer Status:

Green Premium product

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Maximum Horse Power Rating:

100.0 hp 208 V normal duty || 75.0 hp 208 V heavy duty || 125.0 hp 230 V normal duty || 100.0 hp 230 V heavy duty || 250.0 hp 460 V normal duty || 200.0 hp 460 V heavy duty || 300.0 hp 575 V normal duty || 250.0 hp 575 V heavy duty

[Us] Rated Supply Voltage:

208...690 V - 15...10 %

Product Destination:

asynchronous motors

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

X

Type Of Polarization:

no impedance Modbus serial

[In] Rated Current Pwr Loss Specifctn:

320.0 A

Device Connection:

in the motor supply line || to the motor delta terminals

Analogue Output Number:

1

Rohs Exemption Information:

Yes

Maximum Switching Current:

relay outputs 2 A 250 V AC || relay outputs 2 A 30 V DC || relay outputs

Operating Position:

vertical +/- 10 degree

Product Certifications:

CE || cULus || CCC || UKCA || RCM || EAC || DNV || ABS || BV || CCS

Utilisation Category:

AC-3A || AC-53A

Product Or Component Type:

soft starter

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Relative Humidity:

0-95 % without condensation or dripping water IEC 60068-2-3

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Discrete Input Logic:

programmable digital input < 5 V

Standards:

IEC 60947-4-2 || UL 60947-4-2 || IEC 60664-1

Maximum Acceleration Under Shock Load (During Storage):

100 m/s² at 11 ms

Maximum Acceleration Under Shock Load (During Transport):

100 m/s² at 11 ms

Analogue Input Number:

1

Discrete Input Type:

STOP) logic inputs, 3500 Ohm || RUN) logic inputs, 3500 Ohm || DI3) programmable as logic input, 3500 Ohm || DI4) programmable as logic input, 3500 Ohm

Physical Interface:

2-wire RS 485

Minimum Switching Current:

100 mA 12 V DC relay outputs

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m

Discrete Output Number:

2

Relay Output Number:

3

Power Loss Static Current Independent:

25.0 W

Method Of Access:

slave Modbus serial

Discrete Input Number:

4

Accuracy Class:

class 10E

Communication Port Protocol:

Modbus serial

Maximum Acceleration Under Vibratory Load (During Storage):

15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz

Device Short Name:

ATS480
