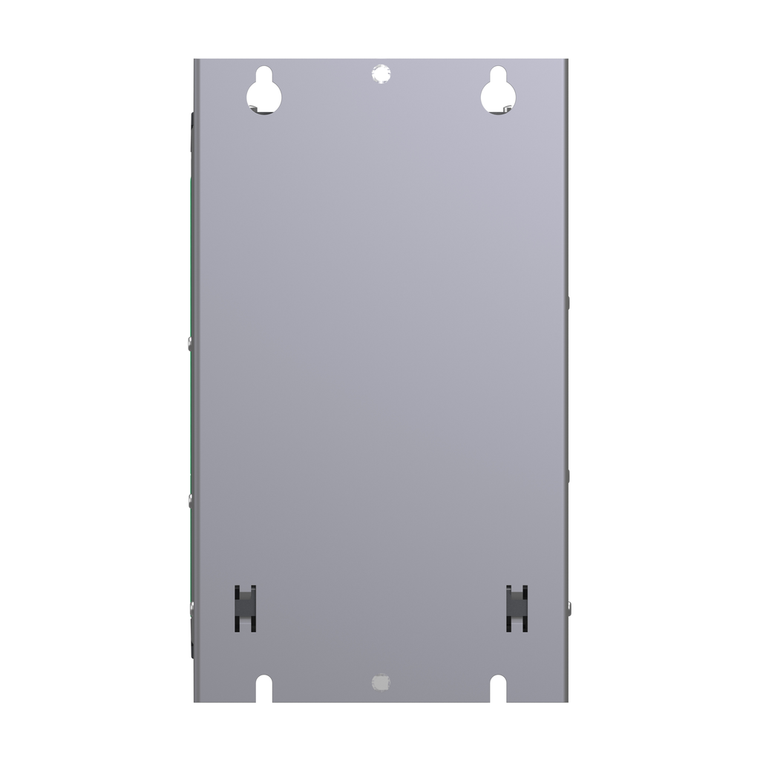

Schneider Electric ATS480D17Y Soft Starter Ats480 17A 208 To 690V.

Schneider Electric ATS480D17Y Soft Starter Ats480 17A 208 To 690V.

Schneider Electric
SKU:
ATS480D17Y
|
UPC:
3606481088994
$1,111.24
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Altivar Soft Starter ATS480 is intended to start and stop asynchronous motors supplied from 208V to 690V. It meets the requirements of the most demanding applications in normal and heavy duty. With an operational rated current of 17A in normal duty, it supplies motor from 4kW to 15kW according to mains voltage. Designed for digitization, connected, optimized to meet cybersecurity standard, it simplifies project execution and maximizes the availability of applications. Its torque control (TCS) masters acceleration and deceleration. It efficiently stops high inertia application thanks to the dynamic braking and DC injection. It could be connected in-line or inside the delta to reduce its operational current. The embedded test routine simplifies the commissioning inside the delta. Its dimensions are 160mm (width) x 203mm (depth) x 275mm (height) and it weighs 4,9kg. Altivar Soft Starter ATS480 is designed to address process, infrastructures and industrial machines. It conforms to IEC/EN60947-4-1. It is certified CE, cULus, UKCA, CCC, RCM, EAC, and Marine certified DNV, ABS, BV and CCS. Display terminals, remote mounting kit, communication modules are common with Altivar Drives. Line chokes, DNV kits are common with ATS48. ATS480 is compatible with ATS48, it has same footprint, fixing, torque control algorithm, I/O, menus… The integration of Altivar Soft Starter ATS480 in EcoStruxure drastically simplifies architecture selection, detailed design and execution in automation and electrical systems. It is a Green Premium product designed to take the environmental considerations beyond current directives and regulations, compliant with RoHS and REACH.
Additional Information
Motor Power Kw:
4.0 kW 230 V in the motor supply line normal duty || 2.2 kW 230 V in the motor supply line heavy duty || 7.5 kW 400 V in the motor supply line normal duty || 5.5 kW 400 V in the motor supply line heavy duty || 7.5 kW 440 V in the motor supply line no
Analogue Output Number:
1
Relay Output Number:
3
[In] Rated Current Pwr Loss Specifctn:
17.0 A
Maximum Acceleration Under Shock Load (During Transport):
100 m/s² at 11 ms
Mercury Free:
Yes
Relative Humidity:
0-95 % without condensation or dripping water IEC 60068-2-3
Discrete Input Number:
4
Maximum Acceleration Under Shock Load (During Storage):
100 m/s² at 11 ms
Maximum Horse Power Rating:
3.0 hp 208 V normal duty || 2.0 hp 208 V heavy duty || 5.0 hp 230 V normal duty || 3.0 hp 230 V heavy duty || 10.0 hp 460 V normal duty || 7.5 hp 460 V heavy duty || 15.0 hp 575 V normal duty || 10.0 hp 575 V heavy duty
Output Current Drift:
150-700 %
Communication Port Protocol:
Modbus serial
Phase:
3 phase
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Height:
275.0 mm
Product Specific Application:
process and infrastructures
Width:
160.0 mm
[Ui] Rated Insulation Voltage:
690 V
Product Destination:
asynchronous motors
Function Available:
external bypass control || pre-heating || smoke extraction || multi-motor cascade || second motor set || user management || ports and services hardening || security event logging || cybersecure firmware update || single direction
Maximum Deflection Under Vibratory Load (During Storage):
1.75 mm at 2...9 Hz
[Ie] Rated Operational Current:
normal duty 17.0 A 40 °C)
Upgradeability:
Upgraded components available
Environmental Disclosure:
ENVPEP2009019EN
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Minimum Switching Current:
100 mA 12 V DC relay outputs
Product Or Component Type:
soft starter
Data Format:
8 bits, configurable odd, even or no parity
Torque Control:
TRUE
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Method Of Access:
slave Modbus serial
Connector Type:
1 RJ45
Depth:
203.0 mm
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Integrated Motor Overload Protection:
TRUE
Supply Frequency:
50...60 Hz - 20...20 %
[Uimp] Rated Impulse Withstand Voltage:
6 kV
[Uc] Control Circuit Voltage:
110...250 V AC 50/60 Hz - 15...10 %
Protection Type:
phase failure line || integrated thermal protection motor || thermal protection starter || current overload motor || underload motor || excessive starting time, locked rotor motor || motor phase loss motor || line supply phase loss line || line suppl
Ambient Air Temperature For Operation:
40-60 °C with current derating of 2 % per °C) || -15-40 °C without derating)
Electromagnetic Compatibility:
conducted and radiated emissions level A IEC 60947-4-2 || conducted and radiated emissions with bypass level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-11 || immunity to electrica
Display Screen Available:
TRUE
Maximum Permanent Current:
12.0 A at 40 °C heavy duty
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Acceleration Under Vibratory Load (During Storage):
15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
Transmission Frame:
RTU
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Range Of Product:
Altivar Soft Starter ATS480
Power Loss Per Device Current Dependent:
38.0 W
Option Card:
communication module Profibus DP V1 || communication module PROFINET || communication module Modbus TCP/EtherNet/IP || communication module CANopen daisy chain || communication module CANopen Sub-D || communication module CANopen open style
Discrete Input Type:
STOP) logic inputs, 3500 Ohm || RUN) logic inputs, 3500 Ohm || DI3) programmable as logic input, 3500 Ohm || DI4) programmable as logic input, 3500 Ohm
Analogue Input Number:
1
Utilisation Category:
AC-3A || AC-53A
[Us] Rated Supply Voltage:
208...690 V - 15...10 %
Discrete Output Type:
DQ1) programmable digital output <= 30 V || DQ2) programmable digital output <= 30 V
Transmission Rate:
1200...256000 bit/s
Physical Interface:
2-wire RS 485
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Standards:
IEC 60947-4-2 || UL 60947-4-2 || IEC 60664-1
Apparent Power:
0.06 kVA
Communication Data Link:
serial
Discrete Output Number:
2
Sustainable Offer Status:
Green Premium product
Ip Degree Of Protection:
IP20
Circularity Profile:
ENVEOLI2009019EN
Relay Output Type:
relay outputs R1A 1 NO || relay outputs R1B 1 NO || relay outputs RIC NO/NC programmable
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Operating Position:
vertical +/- 10 degree
Ambient Air Temperature For Storage:
-25-70 °C
Product Certifications:
CE || cULus || CCC || UKCA || RCM || EAC || DNV || ABS || BV || CCS
Number Of Addresses:
0-227 Modbus serial
Device Connection:
in the motor supply line || to the motor delta terminals
Type Of Polarization:
no impedance Modbus serial
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Pollution Degree:
level 3
Analogue Output Type:
current output AQ1 0...20 mA or 0...10 V 500 Ohm
Marking:
CE || CCC || UKCA || EAC || RCM || cULus
Discrete Input Logic:
programmable digital input < 5 V
Device Short Name:
ATS480
Maximum Switching Current:
relay outputs 2 A 250 V AC || relay outputs 2 A 30 V DC
Power Loss Static Current Independent:
25.0 W
Net Weight:
4.9 kg
Accuracy Class:
class 10E
Maximum Deflection Under Vibratory Load (During Transport):
1.75 mm at 2...9 Hz
Maximum Acceleration Under Vibratory Load (During Transport):
15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz
Datasheet:
View
