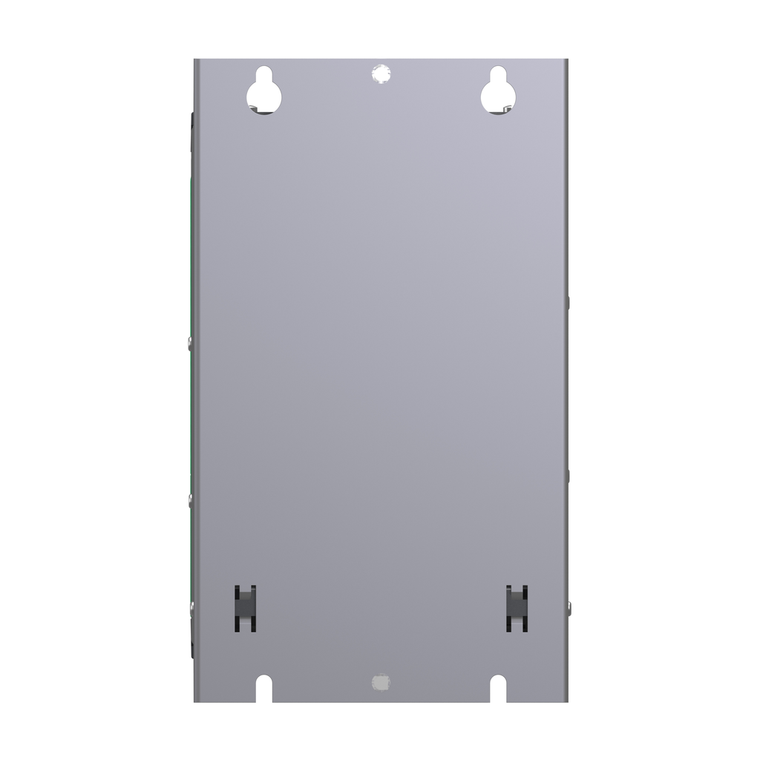

Schneider Electric ATS480D47Y Soft Starter Ats480 47A 208 To 690V

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATS480D47Y Soft Starter Ats480 47A 208 To 690V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATS480D47Y

UPC:

3.60648E+12

MPN:

Condition:

New

Connector Type:

1 RJ45

Operating Position:

vertical +/- 10 degree

Relay Output Number:

3

Supply Frequency:

50...60 Hz - 20...20 %

Marking:

CE || CCC || UKCA || EAC || RCM || cULus

Sustainable Offer Status:

Green Premium product

Communication Data Link:

serial

Analogue Input Number:

1

Discrete Input Logic:

programmable digital input < 5 V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

ENVEOLI2009019EN

Discrete Output Type:

DQ1) programmable digital output <= 30 V || DQ2) programmable digital output <= 30 V

Relative Humidity:

0-95 % without condensation or dripping water IEC 60068-2-3

Product Specific Application:

process and infrastructures

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...13123.36 ft (> 1000...4000 m) with current derating 1 % per 100 m

Mercury Free:

Yes

Minimum Switching Current:

100 mA 12 V DC relay outputs

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

[Ie] Rated Operational Current:

normal duty 47.0 A 40 °C)

Torque Control:

TRUE

Motor Power Kw:

11.0 kW 230 V in the motor supply line normal duty || 9.0 kW 230 V in the motor supply line heavy duty || 22.0 kW 400 V in the motor supply line normal duty || 18.5 kW 400 V in the motor supply line heavy duty || 22.0 kW 440 V in the motor supply lin

Method Of Access:

slave Modbus serial

Maximum Acceleration Under Shock Load (During Storage):

100 m/s² at 11 ms

Maximum Deflection Under Vibratory Load (During Transport):

1.75 mm at 2...9 Hz

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

[Uimp] Rated Impulse Withstand Voltage:

6 kV

Environmental Disclosure:

ENVPEP2009019EN

Net Weight:

4.9 kg

Device Connection:

in the motor supply line || to the motor delta terminals

Product Destination:

asynchronous motors

Type Of Polarization:

no impedance Modbus serial

Depth:

203.0 mm

Ip Degree Of Protection:

IP20

Product Certifications:

CE || cULus || CCC || UKCA || RCM || EAC || DNV || ABS || BV || CCS

Pollution Degree:

level 3

Maximum Horse Power Rating:

10.0 hp 208 V heavy duty || 15.0 hp 230 V normal duty || 9.0 hp 230 V heavy duty || 30.0 hp 460 V normal duty || 25.0 hp 460 V heavy duty || 40.0 hp 575 V normal duty || 30.0 hp 575 V heavy duty

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs Exemption Information:

Yes

Physical Interface:

2-wire RS 485

Phase:

3 phase

Power Loss Static Current Independent:

25.0 W

[In] Rated Current Pwr Loss Specifctn:

47.0 A

Ambient Air Temperature For Operation:

40-60 °C with current derating of 2 % per °C) || -15-40 °C without derating)

Discrete Input Number:

4

Function Available:

external bypass control || pre-heating || smoke extraction || multi-motor cascade || second motor set || user management || ports and services hardening || security event logging || cybersecure firmware update || single direction

Display Screen Available:

TRUE

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Output Current Drift:

150-700 %

Discrete Output Number:

2

Apparent Power:

0.09 kVA

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Product Or Component Type:

soft starter

Device Short Name:

ATS480

Range Of Product:

Altivar Soft Starter ATS480

Accuracy Class:

class 10E

Analogue Output Number:

1

Maximum Permanent Current:

38.0 A at 40 °C heavy duty

Relay Output Type:

relay outputs R1A 1 NO || relay outputs R1B 1 NO || relay outputs RIC NO/NC programmable

Maximum Acceleration Under Vibratory Load (During Storage):

15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz

Width:

160.0 mm

Number Of Addresses:

0-227 Modbus serial

China Rohs Regulation:

X

Upgradeability:

Upgraded components available

[Ui] Rated Insulation Voltage:

690 V

Transmission Rate:

1200...256000 bit/s

Protection Type:

phase failure line || integrated thermal protection motor || thermal protection starter || current overload motor || underload motor || excessive starting time, locked rotor motor || motor phase loss motor || line supply phase loss line || line suppl

Integrated Motor Overload Protection:

TRUE

[Uc] Control Circuit Voltage:

110...250 V AC 50/60 Hz - 15...10 %

Utilisation Category:

AC-3A || AC-53A

Discrete Input Type:

STOP) logic inputs, 3500 Ohm || RUN) logic inputs, 3500 Ohm || DI3) programmable as logic input, 3500 Ohm || DI4) programmable as logic input, 3500 Ohm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Switching Current:

relay outputs 2 A 250 V AC || relay outputs 2 A 30 V DC

[Us] Rated Supply Voltage:

208...690 V - 15...10 %

Maximum Acceleration Under Vibratory Load (During Transport):

15 m/s² at 200...500 Hz || 10 m/s² at 9...200 Hz

Electromagnetic Compatibility:

conducted and radiated emissions level A IEC 60947-4-2 || conducted and radiated emissions with bypass level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-11 || immunity to electrica

Ambient Air Temperature For Storage:

-25-70 °C

Option Card:

communication module Profibus DP V1 || communication module PROFINET || communication module Modbus TCP/EtherNet/IP || communication module CANopen daisy chain || communication module CANopen Sub-D || communication module CANopen open style

Height:

275.0 mm

Maximum Acceleration Under Shock Load (During Transport):

100 m/s² at 11 ms

Data Format:

8 bits, configurable odd, even or no parity

Standards:

IEC 60947-4-2 || UL 60947-4-2 || IEC 60664-1

Analogue Output Type:

current output AQ1 0...20 mA or 0...10 V 500 Ohm

Maximum Deflection Under Vibratory Load (During Storage):

1.75 mm at 2...9 Hz

Power Loss Per Device Current Dependent:

122.0 W

Communication Port Protocol:

Modbus serial

Transmission Frame:

RTU

Datasheet:

View
