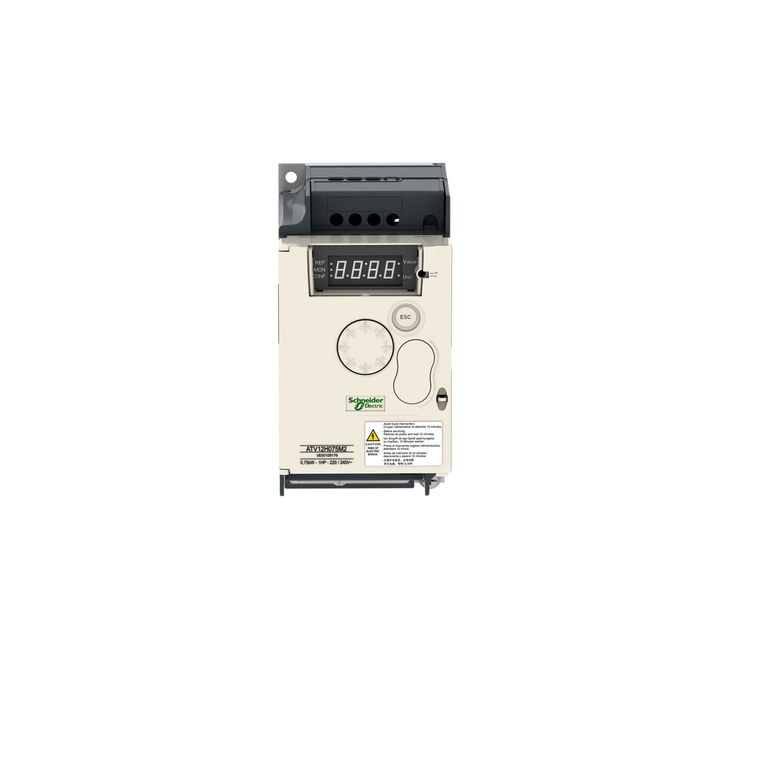

Schneider Electric ATV12H075M3 Atv12 0.75Kw 240V 3Ph Heat Sink T

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV12H075M3

UPC:

3606480071164

MPN:

Condition:

New

Data Format:

8 bits, configurable odd, even or no parity

Maximum Output Voltage:

240 V

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Transmission Frame:

RTU

Analogue Input Number:

1

Emc Filter:

without EMC filter

With Safety Function Safe Torque Off (Sto):

FALSE

Ambient Air Transport Temperature:

-25-70 °C

With Safety Function Safe Stop 1 (Ss1):

FALSE

Communication Port Protocol:

Modbus

Relay Output Number:

1

Sampling Duration:

20 ms +/- 1 ms logic input || 10 ms analogue input

Communication Service:

read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)

Product Or Component Type:

variable speed drive

Standards:

UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Depth:

131.2 mm

Line Current:

6.3 A 100 V heavy duty) || 5.3 A 120 V heavy duty)

Speed Drive Output Frequency:

0.5-400 Hz

Frequency Resolution:

analog input converter A/D, 10 bits || display unit 0.1 Hz

Overvoltage Category:

class III

Prospective Line Isc:

5 kA

Product Specific Application:

simple machine

Quantity Per Set:

set of 1

Noise Level:

0 dB

Power Dissipation In W:

natural 41.0 W

Assembly Style:

with heat sink

Number Of Addresses:

1-247

Connector Type:

1 RJ45

Supply Frequency:

50/60 Hz +/- 5 %

Network Frequency:

50-60 Hz

Range Of Product:

Altivar 12

Electromagnetic Compatibility:

electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity

Warranty:

18 months

Analogue Output Number:

1

[Us] Rated Supply Voltage:

200...240 V - 15...10 %

Ip Degree Of Protection:

IP20

With Safety Function Safely Limited Speed (Sls):

FALSE

Transmission Rate:

9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s

Protection Type:

line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by

Marking:

CE

With Safety Function Safe Direction (Sdi):

FALSE

Width:

72 mm

Rohs Exemption Information:

Yes

Regulation Loop:

adjustable PID regulator

Time Constant:

20 ms +/- 1 ms for reference change

Relative Symmetric Network Frequency Tolerance:

0.05

Asynchronous Motor Control Profile:

sensorless flux vector control || voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio

Mercury Free:

Yes

Discrete Output Number:

2

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Motor Power Kw:

0.75 kW

Maximum Horse Power Rating:

1 hp

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Acceleration And Deceleration Ramps:

linear from 0 to 999.9 s || S || U

Tightening Torque:

0.8 N.m

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Pollution Degree:

2

With Safety Function Safely Limited Position (Slp):

FALSE

Maximum Output Frequency:

4 kHz

Ambient Air Temperature For Operation:

-10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C

Discrete Input Number:

4

Maximum Transient Current:

6.3 A 60 s heavy duty) || 6.9 A 2 s heavy duty)

Product Certifications:

NOM || CSA || C-tick || UL || GOST || RCM || KC

With Safety Function Safe Position (Sp):

FALSE

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Speed Range:

45311

Transient Overtorque:

150-170 % of nominal motor torque depending on drive rating and type of motor

Operating Position:

vertical +/- 10 degree

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Relative Humidity:

5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3

Insulation:

electrical between power and control

Nominal Output Current:

4.2 A

Method Of Access:

server Modbus serial

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

China Rohs Regulation:

X

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

With Safety Function Safe Programmable Logic:

FALSE

Braking To Standstill:

by DC injection

Net Weight:

0.8 kg

Vibration Resistance:

1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6

Continuous Output Current:

4.2 A 4 kHz

Base Load Current At High Overload:

4.2 A

Ambient Air Temperature For Storage:

-25-70 °C

With Safety Function Safe Operating Stop (Sos):

FALSE

Physical Interface:

2-wire RS 485

Motor Slip Compensation:

preset in factory || adjustable

Height:

143 mm

Apparent Power:

2.2 kVA 240 V heavy duty)

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m

Linearity Error:

+/- 0.3 % of maximum value analogue input

Mounting Mode:

cabinet mount

Electromagnetic Emission:

radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <20 m || conducted emissions with additio

With Safety Function Safe Brake Management (Sbc/Sbt):

FALSE

Brake Chopper Integrated:

FALSE

Nominal Switching Frequency:

4 kHz

4 Quadrant Operation Possible:

FALSE

Type Of Polarization:

no impedance
