Schneider Electric ATV12HU22M3 Atv12 2.2Kw 240V 3Ph Heat Sink Tb
Schneider Electric
$480.41
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

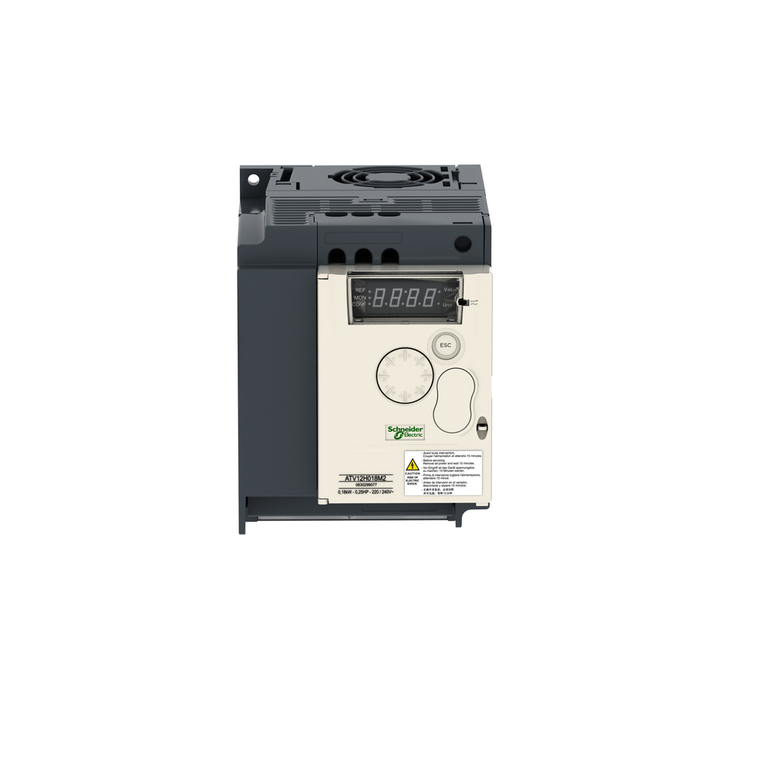

Schneider Electric ATV12HU22M3 Atv12 2.2Kw 240V 3Ph Heat Sink Tb
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.
- Volume Of Cooling Air:
- 14.8 m3/h
- Linearity Error:
- +/- 0.3 % of maximum value analogue input
- Insulation:
- electrical between power and control
- Apparent Power:
- 5.2 kVA 240 V heavy duty)
- Motor Slip Compensation:
- adjustable || preset in factory
- Time Constant:
- 20 ms +/- 1 ms for reference change
- Rohs Exemption Information:
- Yes
- Maximum Transient Current:
- 15.0 A 60 s heavy duty) || 16.5 A 2 s heavy duty)
- Product Specific Application:
- simple machine
- Standards:
- UL 508C || UL 618000-5-1 || EN/IEC 61800-5-1 || EN/IEC 61800-3
- Pollution Degree:
- 2
- 4 Quadrant Operation Possible:
- FALSE
- Nominal Switching Frequency:
- 4 kHz
- Mercury Free:
- Yes
- Continuous Output Current:
- 10 A 4 kHz
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Physical Interface:
- 2-wire RS 485
- Brake Chopper Integrated:
- FALSE
- Product Certifications:
- NOM || CSA || C-tick || UL || GOST || RCM || KC
- Number Of Addresses:
- 1-247
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- With Safety Function Safe Position (Sp):
- FALSE
- Discrete Input Number:
- 4
- Maximum Horse Power Rating:
- 3 hp
- Type Of Polarization:
- no impedance
- Electromagnetic Compatibility:
- electrical fast transient/burst immunity test level 4 EN/IEC 61000-4-4 || electrostatic discharge immunity test level 3 EN/IEC 61000-4-2 || immunity to conducted disturbances level 3 EN/IEC 61000-4-6 || radiated radio-frequency electromagnetic field
- Regulation Loop:
- adjustable PID regulator
- Maximum Output Voltage:
- 240 V
- Ip Degree Of Protection:
- IP20
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Electromagnetic Emission:
- radiated emissions environment 1 category C2 EN/IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C1 EN/IEC 61800-3 4...12 kHz shielded motor cable <5 m || conducted emissions with ad
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Ambient Air Temperature For Operation:
- -10-50 °C without derating || 50-60 °C with current derating 2.2 % per °C
- Assembly Style:
- with heat sink
- Prospective Line Isc:
- 5 kA
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- Base Load Current At High Overload:
- 10.0 A
- Acceleration And Deceleration Ramps:
- linear from 0 to 999.9 s || S || U
- With Safety Function Safely Limited Speed (Sls):
- FALSE
- Frequency Resolution:
- analog input converter A/D, 10 bits || display unit 0.1 Hz
- Range Of Product:
- Altivar 12
- Warranty:
- 18 months
- Ambient Air Transport Temperature:
- -25-70 °C
- Supply Frequency:
- 50/60 Hz +/- 5 %
- Speed Drive Output Frequency:
- 0.5-400 Hz
- Motor Power Kw:
- 2.2 kW
- [Us] Rated Supply Voltage:
- 200...240 V - 15...10 %
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- Height:
- 143 mm
- Width:
- 105 mm
- Protection Type:
- line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
- Transmission Frame:
- RTU
- Analogue Input Number:
- 1
- Product Or Component Type:
- variable speed drive
- Communication Service:
- read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
- Nominal Output Current:
- 0.416666666666667
- Speed Range:
- 45311
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Overvoltage Category:
- class III
- Tightening Torque:
- 1.2 N.m
- With Safety Function Safe Direction (Sdi):
- FALSE
- Communication Port Protocol:
- Modbus
- Maximum Output Frequency:
- 4 kHz
- Transmission Rate:
- 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- Discrete Output Number:
- 2
- Relay Output Number:
- 1
- Transient Overtorque:
- 150-170 % of nominal motor torque depending on drive rating and type of motor
- Shock Resistance:
- 15 gn 11 ms EN/IEC 60068-2-27
- Marking:
- CE
- Braking To Standstill:
- by DC injection
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Net Weight:
- 1.2 kg
- Ambient Air Temperature For Storage:
- -25-70 °C
- Sampling Duration:
- 20 ms +/- 1 ms logic input || 10 ms analogue input
- Asynchronous Motor Control Profile:
- quadratic voltage/frequency ratio || sensorless flux vector control || voltage/frequency ratio (V/f)
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
- Analogue Output Number:
- 1
- Power Dissipation In W:
- forced cooling 85.0 W
- With Safety Function Safe Stop 1 (Ss1):
- FALSE
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- With Safety Function Safe Torque Off (Sto):
- FALSE
- With Safety Function Safe Programmable Logic:
- FALSE
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Depth:
- 131.2 mm
- Line Current:
- 14.9 A 100 V heavy duty) || 12.5 A 120 V heavy duty)
- Noise Level:
- 50 dB
- Quantity Per Set:
- set of 1
- Mounting Mode:
- cabinet mount
- Operating Position:
- vertical +/- 10 degree
- Connector Type:
- 1 RJ45
- Data Format:
- 8 bits, configurable odd, even or no parity
- Vibration Resistance:
- 1 gn 13-200 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - EN/IEC 60068-2-6
- China Rohs Regulation:
- X
- Method Of Access:
- server Modbus serial
- Network Frequency:
- 50-60 Hz
- Emc Filter:
- without EMC filter
