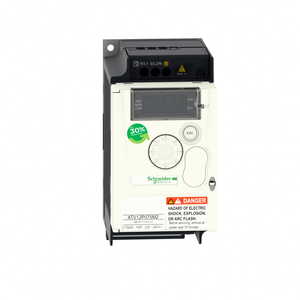

Schneider Electric ATV12P075M3 Atv12 0.75Kw 240V 3Ph Base Plate
Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. The drive can feed three-phase asynchronous motors. It works at a rated power up to 0.75kW, and a rated voltage from 200V to 240V. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. It weighs 0.7kg. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, thus reducing maintenance downtime. This reference is sold individually. ATV12 can be installed alone or side by side in a multi-drive configuration. The ATV12 range meets basic machine requirements united with simplicity.
- Vibration Resistance:
- 1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
- Braking To Standstill:
- by DC injection
- Maximum Acceleration Under Vibrational Stress (During Operation):
- 10 m/s² at 13...200 Hz
- With Safety Function Safe Brake Management (Sbc/Sbt):
- FALSE
- Transmission Rate:
- 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Environmental Class (During Operation):
- class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
- Line Current:
- 6.3 A 100 V heavy duty) || 5.3 A 120 V heavy duty)
- Base Load Current At High Overload:
- 4.2 A
- [Us] Rated Supply Voltage:
- 200...240 V - 15...10 %
- Maximum Acceleration Under Shock Impact (During Operation):
- 150 m/s² at 11 ms
- Linearity Error:
- +/- 0.3 % of maximum value analogue input
- Network Frequency:
- 50-60 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Pollution Degree:
- 2
- Noise Level:
- 0 dB
- Brake Chopper Integrated:
- FALSE
- Analogue Output Number:
- 1
- Sampling Duration:
- 20 ms +/- 1 ms logic input || 10 ms analogue input
- With Safety Function Safe Position (Sp):
- FALSE
- With Safety Function Safe Direction (Sdi):
- FALSE
- Ambient Air Temperature For Operation:
- -10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
- Emc Filter:
- without EMC filter
- Data Format:
- 8 bits, configurable odd, even or no parity
- Depth:
- 102.2 mm
- Frequency Resolution:
- analog input converter A/D, 10 bits || display unit 0.1 Hz
- Product Specific Application:
- simple machine
- Supply Frequency:
- 50/60 Hz +/- 5 %
- Maximum Output Frequency:
- 4 kHz
- Analogue Input Number:
- 1
- Range Of Product:
- Altivar 12
- Relative Symmetric Network Frequency Tolerance:
- 0.05
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Nominal Switching Frequency:
- 4 kHz
- Motor Power Kw:
- 0.75 kW
- Mercury Free:
- Yes
- Height:
- 143 mm
- Time Constant:
- 20 ms +/- 1 ms for reference change
- Apparent Power:
- 2.2 kVA 240 V heavy duty)
- Quantity Per Set:
- set of 1
- Asynchronous Motor Control Profile:
- voltage/frequency ratio (V/f) || quadratic voltage/frequency ratio || sensorless flux vector control
- Continuous Output Current:
- 4.2 A 4 kHz
- Operating Position:
- vertical +/- 10 degree
- With Safety Function Safely Limited Speed (Sls):
- FALSE
- Nominal Output Current:
- 4.2 A
- Speed Drive Output Frequency:
- 0.5-400 Hz
- Product Or Component Type:
- variable speed drive
- Net Weight:
- 0.7 kg
- With Sft Fct Safe Stop 2 (Ss2):
- FALSE
- Type Of Polarization:
- no impedance
- Connector Type:
- 1 RJ45
- 4 Quadrant Operation Possible:
- FALSE
- Electromagnetic Compatibility:
- electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
- Maximum Deflection Under Vibratory Load (During Operation):
- 1.5 mm at 2...13 Hz
- Standards:
- UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
- Product Certifications:
- NOM || CSA || C-tick || UL || GOST || RCM || KC
- Warranty:
- 18 months
- Motor Slip Compensation:
- preset in factory || adjustable
- Operating Altitude:
- <= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Switching Frequency:
- 2...16 kHz adjustable || 4...16 kHz with derating factor
- Assembly Style:
- on base plate
- Relay Output Number:
- 1
- Power Dissipation In W:
- natural 41.0 W
- With Safety Function Safe Programmable Logic:
- FALSE
- Physical Interface:
- 2-wire RS 485
- With Safety Function Safe Torque Off (Sto):
- FALSE
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Overvoltage Category:
- class III
- Method Of Access:
- server Modbus serial
- Width:
- 72 mm
- Transient Overtorque:
- 150-170 % of nominal motor torque depending on drive rating and type of motor
- With Safety Function Safe Speed Monitor (Ssm):
- FALSE
- Electromagnetic Emission:
- radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C2 IEC 61800-3 4...12 kHz shielded motor cable <20 m || conducted emissions with additio
- Mounting Mode:
- cabinet mount
- Discrete Output Number:
- 2
- Maximum Horse Power Rating:
- 1 hp
- Ambient Air Transport Temperature:
- -25-70 °C
- Communication Port Protocol:
- Modbus
- Maximum Transient Current:
- 6.3 A 60 s heavy duty) || 6.9 A 2 s heavy duty)
- China Rohs Regulation:
- X
- Acceleration And Deceleration Ramps:
- linear from 0 to 999.9 s || S || U
- Tightening Torque:
- 0.8 N.m
- Marking:
- CE
- With Safety Function Safe Operating Stop (Sos):
- FALSE
- Insulation:
- electrical between power and control
- With Safety Function Safe Stop 1 (Ss1):
- FALSE
- Maximum Output Voltage:
- 240 V
- Communication Service:
- read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
- Regulation Loop:
- adjustable PID regulator
- Rohs Exemption Information:
- Yes
- Prospective Line Isc:
- 5 kA
- Transmission Frame:
- RTU
- Number Of Addresses:
- 1-247
- Ambient Air Temperature For Storage:
- -25-70 °C
- Ip Degree Of Protection:
- IP20
- Discrete Input Number:
- 4
- Protection Type:
- line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
- With Safety Function Safely Limited Position (Slp):
- FALSE
- Speed Range:
- 45311
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
