Schneider Electric ATV12PU15M3 Atv12 1.5Kw 240V 3Ph Base Plate

Schneider Electric ATV12PU15M3 Atv12 1.5Kw 240V 3Ph Base Plate

Schneider Electric
SKU:
ATV12PU15M3
|
UPC:
3606480071232
$901.93
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

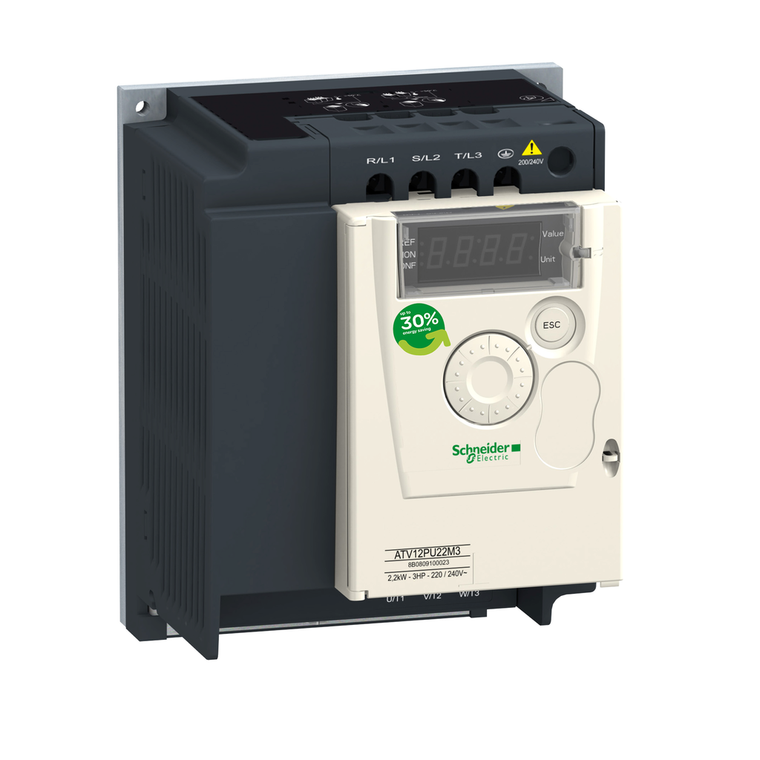

Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. The drive can feed three-phase asynchronous motors. It works at a rated power up to 1.5kW, and a rated voltage from 200V to 240V. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. It weighs 1kg. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, thus reducing maintenance downtime. This reference is sold individually. ATV12 can be installed alone or side by side in a multi-drive configuration. The ATV12 range meets basic machine requirements united with simplicity.
Additional Information
With Safety Function Safe Brake Management (Sbc/Sbt):
FALSE
Brake Chopper Integrated:
FALSE
Mercury Free:
Yes
Pollution Degree:
2
Ambient Air Temperature For Operation:
-10-40 °C without derating || 40-60 °C with current derating 2.2 % per °C
With Safety Function Safely Limited Position (Slp):
FALSE
Noise Level:
0 dB
Protection Type:
line supply overvoltage || line supply undervoltage || overcurrent between output phases and earth || overheating protection || short-circuit between motor phases || against input phase loss in three-phase || thermal motor protection via the drive by
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Tightening Torque:
1.2 N.m
Transient Overtorque:
150-170 % of nominal motor torque depending on drive rating and type of motor
Transmission Rate:
9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
With Safety Function Safe Stop 1 (Ss1):
FALSE
With Safety Function Safe Torque Off (Sto):
FALSE
Warranty:
18 months
Connector Type:
1 RJ45
Method Of Access:
server Modbus serial
Product Specific Application:
simple machine
Maximum Output Voltage:
240 V
Number Of Addresses:
1-247
Rohs Exemption Information:
Yes
Power Dissipation In W:
natural 73.0 W
Data Format:
8 bits, configurable odd, even or no parity
Type Of Polarization:
no impedance
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Braking To Standstill:
by DC injection
Discrete Output Number:
2
Ip Degree Of Protection:
IP20
Nominal Output Current:
7.5 A
Analogue Input Number:
1
Motor Slip Compensation:
adjustable || preset in factory
With Safety Function Safe Programmable Logic:
FALSE
Overvoltage Category:
class III
With Safety Function Safe Position (Sp):
FALSE
Electromagnetic Compatibility:
electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || electrostatic discharge immunity test level 3 IEC 61000-4-2 || immunity to conducted disturbances level 3 IEC 61000-4-6 || radiated radio-frequency electromagnetic field immunity
Communication Port Protocol:
Modbus
Product Or Component Type:
variable speed drive
Marking:
CE
Transmission Frame:
RTU
Frequency Resolution:
analog input converter A/D, 10 bits || display unit 0.1 Hz
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Speed Range:
45311
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Standards:
UL 508C || UL 618000-5-1 || IEC 61800-5-1 || IEC 61800-3
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Line Current:
11.1 A 100 V heavy duty) || 9.3 A 120 V heavy duty)
Nominal Switching Frequency:
4 kHz
Maximum Output Frequency:
4 kHz
Sampling Duration:
20 ms +/- 1 ms logic input || 10 ms analogue input
Asynchronous Motor Control Profile:
voltage/frequency ratio (V/f) || sensorless flux vector control || quadratic voltage/frequency ratio
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Certifications:
NOM || CSA || C-tick || UL || GOST || RCM || KC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Us] Rated Supply Voltage:
200...240 V - 15...10 %
Acceleration And Deceleration Ramps:
U || S || linear from 0 to 999.9 s
Speed Drive Output Frequency:
0.5-400 Hz
Switching Frequency:
2...16 kHz adjustable || 4...16 kHz with derating factor
Supply Frequency:
50/60 Hz +/- 5 %
With Safety Function Safe Direction (Sdi):
FALSE
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Regulation Loop:
adjustable PID regulator
Base Load Current At High Overload:
7.5 A
Apparent Power:
3.9 kVA 240 V heavy duty)
Electromagnetic Emission:
radiated emissions environment 1 category C2 IEC 61800-3 2...16 kHz shielded motor cable || conducted emissions with additional EMC filter environment 1 category C1 IEC 61800-3 4...12 kHz shielded motor cable <5 m || conducted emissions with addition
Insulation:
electrical between power and control
Mounting Mode:
cabinet mount
Communication Service:
read holding registers (03) 29 words || write single register (06) 29 words || write multiple registers (16) 27 words || read/write multiple registers (23) 4/4 words || read device identification (43)
Maximum Horse Power Rating:
2 hp
China Rohs Regulation:
X
Maximum Transient Current:
11.2 A 60 s heavy duty) || 12.4 A 2 s heavy duty)
Time Constant:
20 ms +/- 1 ms for reference change
With Safety Function Safe Speed Monitor (Ssm):
FALSE
Depth:
98.2 mm
Relative Symmetric Network Frequency Tolerance:
0.05
Height:
143 mm
Width:
105 mm
Motor Power Kw:
1.5 kW
Vibration Resistance:
1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz) - drive unmounted on symmetrical DIN rail - IEC 60068-2-6
Range Of Product:
Altivar 12
4 Quadrant Operation Possible:
FALSE
With Safety Function Safely Limited Speed (Sls):
FALSE
Operating Position:
vertical +/- 10 degree
Net Weight:
1 kg
Assembly Style:
on base plate
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Ambient Air Transport Temperature:
-25-70 °C
Continuous Output Current:
7.5 A 4 kHz
Quantity Per Set:
set of 1
With Safety Function Safe Operating Stop (Sos):
FALSE
Network Frequency:
50-60 Hz
Ambient Air Temperature For Storage:
-25-70 °C
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Linearity Error:
+/- 0.3 % of maximum value analogue input
Discrete Input Number:
4
Relay Output Number:
1
Emc Filter:
without EMC filter
Prospective Line Isc:
5 kA
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || > 3280.84...9842.52 ft (> 1000...3000 m) with current derating 1 % per 100 m
Physical Interface:
2-wire RS 485
Analogue Output Number:
1
