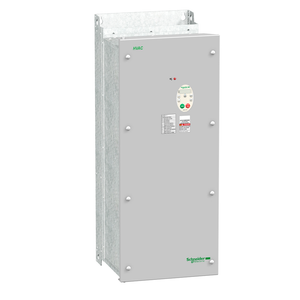

Schneider Electric ATV212HD30N4 Atv212 30Kw 40Hp 480V Tri Cem Ip20

Schneider Electric ATV212HD30N4 Atv212 30Kw 40Hp 480V Tri Cem Ip20

Schneider Electric
SKU:
ATV212HD30N4
|
UPC:
3606480322556
$4,293.40
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 30kW / 40hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 26.4kg and its dimensions are, 240mm wide, 420mm high, 214mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Additional Information
Communication Service:
read device identification (43) || monitoring inhibitable || time out setting from 0.1 to 100 s || read holding registers (03) 2 words maximum || write single register (06) || write multiple registers (16) 2 words maximum
Power Range:
30-50 kW 380-440 V 3 phase || 30-50 kW 480-500 V 3 phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Braking To Standstill:
by DC injection
Local Signalling:
for DC bus energized 1 LED (red)
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Marking:
CE
Regulation Loop:
adjustable PI regulator
Apparent Power:
44.6 kVA 380 V
Asynchronous Motor Control Profile:
voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || flux vector control without sensor, standard || voltage/frequency ratio, 5 points || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, 2 point
China Rohs Regulation:
X
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Ip Degree Of Protection:
IP20 on upper part without blanking plate on cover IEC 61800-5-1 || IP20 on upper part without blanking plate on cover IEC 60529 || IP21 IEC 61800-5-1 || IP21 IEC 60529 || IP41 on upper part IEC 61800-5-1 || IP41 on upper part IEC 60529
Height:
420 mm
Standards:
IEC 61800-3 environments 2 category C1 || IEC 61800-3 category C2 || IEC 61800-5-1 || IEC 61800-3 environments 1 category C1 || IEC 61800-3 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 environments 1 category C3 || IEC 61800-3 environment
Environmental Disclosure:
ENVPEP110404EN
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Number Of Addresses:
1-247
Torque Accuracy:
+/- 15 %
Functionality:
mid
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01 to 3200 s || automatic based on the load
Mercury Free:
Yes
Supply Voltage Limits:
323-528 V
Device Short Name:
ATV212
Operating Position:
vertical +/- 10 degree
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Sustainable Offer Status:
Green Premium product
Isolation:
electrical between power and control
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Net Weight:
26.4 kg
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || automatic whatever the load || adjustable
Ambient Air Temperature For Storage:
-25-70 °C
Line Current:
44.7 A 480 V || 56.7 A 380 V
Maximum Transient Current:
64.4 A 60 s
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Air Flow:
290 m3/h
Nominal Switching Frequency:
8 kHz
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Product Or Component Type:
variable speed drive
Speed Range:
45301
Motor Power Kw:
30 kW
Tightening Torque:
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 24 N.m, 212 lb.in L1/R, L2/S, L3/T)
Communication Port Protocol:
APOGEE FLN || Modbus || BACnet || METASYS N2 || LonWorks
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Assembly Style:
with heat sink
Product Destination:
asynchronous motors
Transmission Frame:
RTU
Type Of Polarization:
no impedance
Noise Level:
59.9 dB 86/188/EEC
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Product Specific Application:
pumps and fans in HVAC
Speed Drive Output Frequency:
0.5-200 Hz
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Phase:
3 phase
Network Frequency:
47.5...63 Hz
Warranty:
18 months
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Motor Starter Type:
variable speed drive
Physical Interface:
2-wire RS 485
Prospective Line Isc:
22 kA
Discrete And Process Manufacturing:
building - HVAC compressor for scroll || building - HVAC fan || building - HVAC pump
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Output Voltage:
<= power supply voltage
Connector Type:
1 open style || 1 RJ45
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Transmission Rate:
9600 bps or 19200 bps
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 50-50 mm² / AWG 1/0
Circularity Profile:
ENVEOLI110402EN
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Analogue Input Number:
2
Option Card:
communication card LonWorks
Maximum Horse Power Rating:
40 hp
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Discrete Output Number:
2
Depth:
214 mm
Switching Frequency:
6...16 kHz adjustable || 8...16 kHz with derating factor
Analogue Output Number:
1
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Range Of Product:
Altivar 212
Pollution Degree:
3 IEC 61800-5-1
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Product Certifications:
NOM 117 || C-tick || UL || CSA
Emc Filter:
Class C2 EMC filter integrated
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Continuous Output Current:
58.5 A 380 V || 58.5 A 460 V
Specific Application:
HVAC
Supply Frequency:
50...60 Hz - 5...5 %
Rohs Exemption Information:
Yes
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Ip Degree Of Protection:
IP21
Width:
240 mm
Power Dissipation In W:
847 W
