Schneider Electric ATV212HD75N4 Atv212 75Kw 100Hp 460V Tri Ip20 Variable

Schneider Electric ATV212HD75N4 Atv212 75Kw 100Hp 460V Tri Ip20 Variable

Schneider Electric
SKU:
ATV212HD75N4
|
UPC:
3606480322594
$7,977.03
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

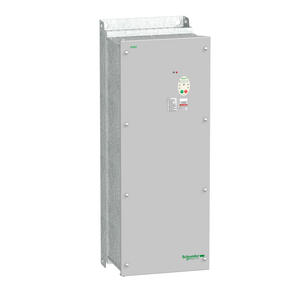

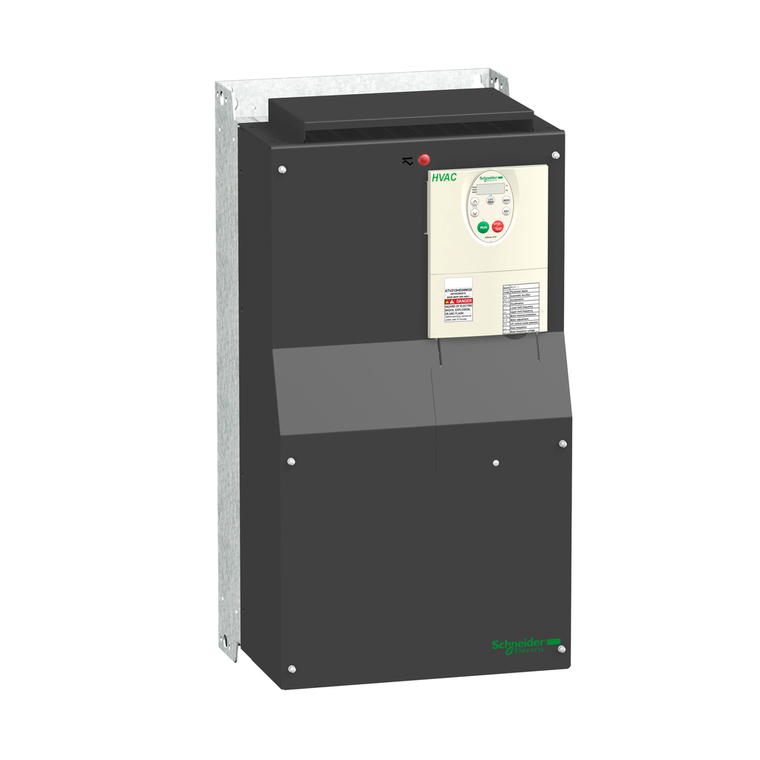

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 75kW / 100hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 55.4kg and its dimensions are, 320mm wide, 630mm high, 290mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Additional Information
Pollution Degree:
3 IEC 61800-5-1
Output Voltage:
<= power supply voltage
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Power Range:
55-100 kW 380-440 V 3 phase || 55-100 kW 480-500 V 3 phase
Communication Service:
read device identification (43) || write single register (06) || time out setting from 0.1 to 100 s || monitoring inhibitable || read holding registers (03) 2 words maximum || write multiple registers (16) 2 words maximum
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Sustainable Offer Status:
Green Premium product
Torque Accuracy:
+/- 15 %
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Phase:
3 phase
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Maximum Transient Current:
176 A 60 s
Isolation:
electrical between power and control
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Ip Degree Of Protection:
IP21
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 150-150 mm² 300 kcmil)
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Supply Frequency:
50...60 Hz - 5...5 %
Range Of Product:
Altivar 212
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Operating Position:
vertical +/- 10 degree
Continuous Output Current:
160 A 380 V || 160 A 460 V
Device Short Name:
ATV212
Type Of Polarization:
no impedance
Standards:
IEC 61800-3 category C3 || IEC 61800-3 category C2 || IEC 61800-3 environments 1 category C3 || IEC 61800-3 || UL Type 1 || IEC 61800-3 environments 2 category C3 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 environments 1 category C1 ||
Switching Frequency:
6...16 kHz adjustable || 8...16 kHz with derating factor
Communication Port Protocol:
METASYS N2 || Modbus || APOGEE FLN || BACnet || LonWorks
Speed Drive Output Frequency:
0.5-200 Hz
Noise Level:
63.7 dB 86/188/EEC
Transmission Frame:
RTU
Product Certifications:
UL || NOM 117 || C-tick || CSA
Assembly Style:
with heat sink
Line Current:
141.8 A 380 V || 111.3 A 480 V
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Air Flow:
666 m3/h
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Depth:
290 mm
Analogue Output Number:
1
Ip Degree Of Protection:
IP20 on upper part without blanking plate on cover IEC 61800-5-1 || IP20 on upper part without blanking plate on cover IEC 60529 || IP21 IEC 61800-5-1 || IP21 IEC 60529 || IP41 on upper part IEC 61800-5-1 || IP41 on upper part IEC 60529
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Emc Filter:
Class C2 EMC filter integrated
Number Of Addresses:
1-247
Transmission Rate:
9600 bps or 19200 bps
Rohs Exemption Information:
Yes
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Width:
320 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Local Signalling:
for DC bus energized 1 LED (red)
Speed Range:
45301
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Discrete Output Number:
2
Marking:
CE
Ambient Air Temperature For Storage:
-25-70 °C
Height:
630 mm
Discrete And Process Manufacturing:
building - HVAC compressor for scroll || building - HVAC fan || building - HVAC pump
Network Frequency:
47.5...63 Hz
Analogue Input Number:
2
Braking To Standstill:
by DC injection
Supply Voltage Limits:
323-528 V
Apparent Power:
105.3 kVA 380 V
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Warranty:
18 months
Prospective Line Isc:
22 kA
Environmental Disclosure:
ENVPEP110404EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Functionality:
mid
Option Card:
communication card LonWorks
Motor Power Kw:
75 kW
Tightening Torque:
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 41 N.m, 360 lb.in L1/R, L2/S, L3/T)
Product Or Component Type:
variable speed drive
Asynchronous Motor Control Profile:
voltage/frequency ratio, 5 points || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio, 2 points || flux vector control without sensor, standar
Product Specific Application:
pumps and fans in HVAC
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Maximum Horse Power Rating:
100 hp
Product Destination:
asynchronous motors
Regulation Loop:
adjustable PI regulator
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Circularity Profile:
ENVEOLI110402EN
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Nominal Switching Frequency:
8 kHz
Physical Interface:
2-wire RS 485
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Specific Application:
HVAC
Acceleration And Deceleration Ramps:
automatic based on the load || linear adjustable separately from 0.01 to 3200 s
China Rohs Regulation:
X
Motor Starter Type:
variable speed drive
Mercury Free:
Yes
Power Dissipation In W:
1945 W
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || automatic whatever the load || adjustable
Connector Type:
1 open style || 1 RJ45
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Brochure:
View
