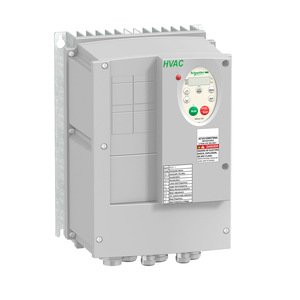

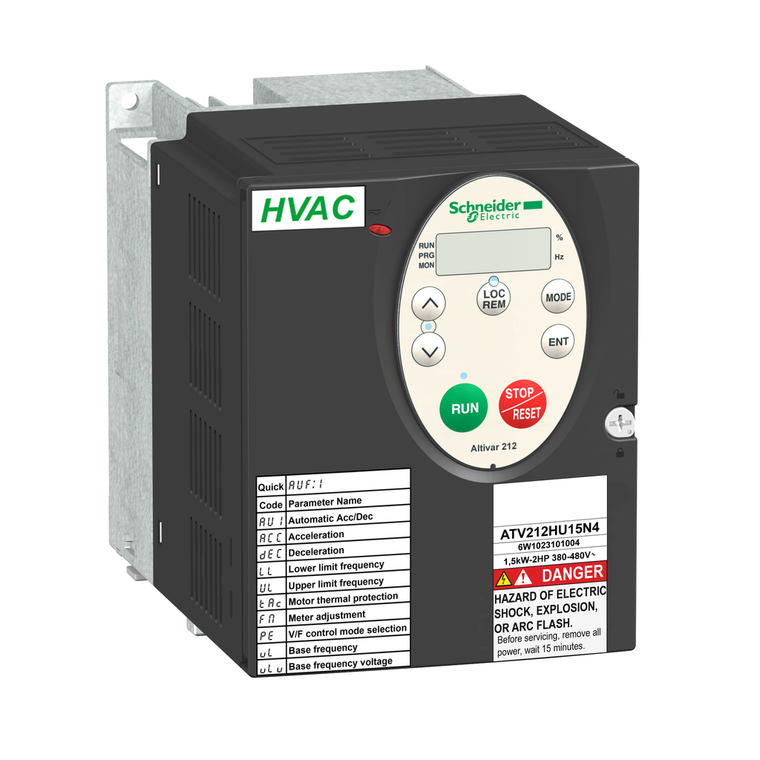

Schneider Electric ATV212HU22N4 Atv212 2,2Kw 3Hp 480V Tri Cem Ip20

Schneider Electric ATV212HU22N4 Atv212 2,2Kw 3Hp 480V Tri Cem Ip20

Schneider Electric
SKU:
ATV212HU22N4
|
UPC:
3606480322464
$840.35
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 2.2kW / 3hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 2kg and its dimensions are, 107mm wide, 143mm high, 150mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It can also be mounted directly on a 35 mm wide DIN rail, thanks to the kit VW3A31852, to order separately. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Additional Information
Prospective Line Isc:
5 kA
Torque Accuracy:
+/- 15 %
Product Destination:
asynchronous motors
Power Dissipation In W:
103 W
Supply Frequency:
50...60 Hz - 5...5 %
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Switching Frequency:
6...16 kHz adjustable || 12...16 kHz with derating factor
Local Signalling:
for DC bus energized 1 LED (red)
Device Short Name:
ATV212
Maximum Horse Power Rating:
3 hp
Braking To Standstill:
by DC injection
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Product Specific Application:
pumps and fans in HVAC
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Maximum Transient Current:
5.6 A 60 s
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
Option Card:
communication card LonWorks
Type Of Polarization:
no impedance
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Width:
107 mm
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Continuous Output Current:
5.1 A 380 V || 5.1 A 460 V
China Rohs Regulation:
X
Noise Level:
51 dB 86/188/EEC
Phase:
3 phase
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Number Of Addresses:
1-247
Communication Service:
write single register (06) || read device identification (43) || time out setting from 0.1 to 100 s || read holding registers (03) 2 words maximum || write multiple registers (16) 2 words maximum || monitoring inhibitable
Air Flow:
35 m3/h
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Discrete Output Number:
2
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || adjustable || automatic whatever the load
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Discrete And Process Manufacturing:
building - HVAC compressor for scroll || building - HVAC fan || building - HVAC pump
Warranty:
18 months
Communication Port Protocol:
BACnet || LonWorks || Modbus || METASYS N2 || APOGEE FLN
Nominal Switching Frequency:
12 kHz
Tightening Torque:
1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T) || 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Range Of Product:
Altivar 212
Ambient Air Temperature For Storage:
-25-70 °C
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Assembly Style:
with heat sink
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Ip Degree Of Protection:
IP21
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Output Voltage:
<= power supply voltage
Speed Drive Output Frequency:
0.5-200 Hz
Emc Filter:
Class C2 EMC filter integrated
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Marking:
CE
Motor Power Kw:
2.2 kW
Isolation:
electrical between power and control
Transmission Rate:
9600 bps or 19200 bps
Speed Range:
45301
Apparent Power:
3.9 kVA 380 V
Standards:
IEC 61800-3 || IEC 61800-5-1 || IEC 61800-3 environments 1 category C2 || IEC 61800-3 environments 2 category C3 || IEC 61800-3 environments 1 category C1 || IEC 61800-3 environments 1 category C3 || IEC 61800-3 category C3 || IEC 61800-3 environment
Power Range:
2.2-3 kW 380-440 V 3 phase || 2.2-3 kW 480-500 V 3 phase
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Specific Application:
HVAC
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Transmission Frame:
RTU
Operating Position:
vertical +/- 10 degree
Product Or Component Type:
variable speed drive
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mercury Free:
Yes
Product Certifications:
CSA || NOM 117 || UL || C-tick
Connector Type:
1 open style || 1 RJ45
Depth:
150 mm
Functionality:
mid
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Motor Starter Type:
variable speed drive
Physical Interface:
2-wire RS 485
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Asynchronous Motor Control Profile:
voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, 2 point
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Analogue Output Number:
1
Analogue Input Number:
2
Height:
143 mm
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Pollution Degree:
3 IEC 61800-5-1
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Supply Voltage Limits:
323-528 V
Line Current:
3.6 A 480 V || 4.6 A 380 V
Network Frequency:
47.5...63 Hz
Ip Degree Of Protection:
IP20 on upper part without blanking plate on cover IEC 61800-5-1 || IP20 on upper part without blanking plate on cover IEC 60529 || IP21 IEC 61800-5-1 || IP21 IEC 60529 || IP41 on upper part IEC 61800-5-1 || IP41 on upper part IEC 60529
Regulation Loop:
adjustable PI regulator
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Net Weight:
2 kg
Acceleration And Deceleration Ramps:
automatic based on the load || linear adjustable separately from 0.01 to 3200 s
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Rohs Exemption Information:
Yes
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
