Schneider Electric

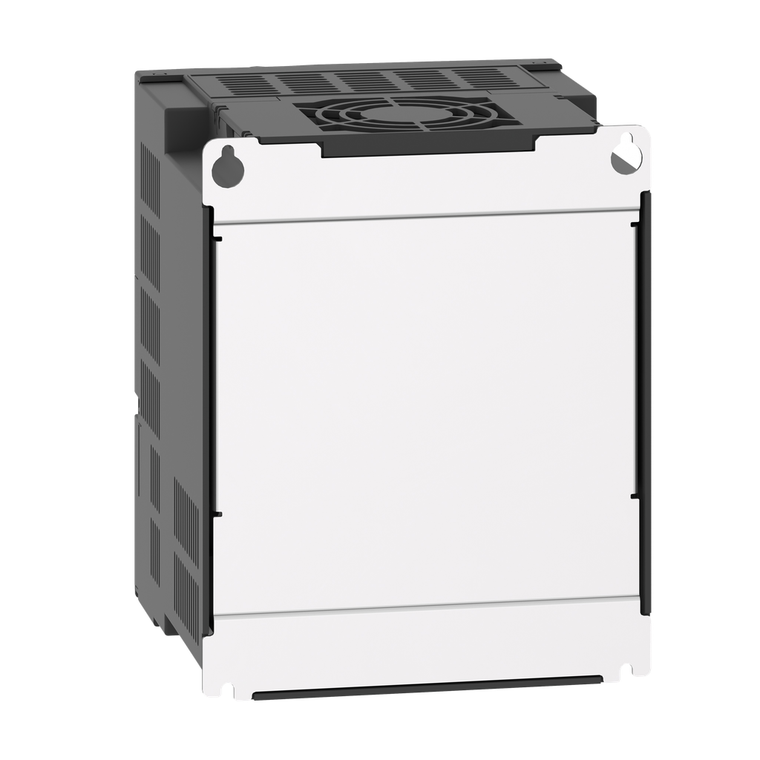

Schneider Electric ATV212HU75N4 Atv212 7,5Kw 10Hp 480V Tri Cem Ip20

(No reviews yet) Write a Review
SKU:
ATV212HU75N4
UPC:
3606480322501
Condition:
New
Pollution Degree:
3 IEC 61800-5-1
Motor Starter Type:
variable speed drive
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Phase:
3 phase
Net Weight:
6.45 kg
Air Flow:
100 m3/h
Noise Level:
51 dB 86/188/EEC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Asynchronous Motor Control Profile:
voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || flux vector control without sensor, standard || voltage/frequency ratio, 5 points || voltage/frequency ratio, 2 point
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Prospective Line Isc:
22 kA
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Maximum Horse Power Rating:
10 hp
Physical Interface:
2-wire RS 485
Power Dissipation In W:
291 W
Type Of Polarization:
no impedance
Analogue Input Number:
2
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Speed Drive Output Frequency:
0.5-200 Hz
Height:
232 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Depth:
170 mm
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Supply Frequency:
50...60 Hz - 5...5 %
Connector Type:
1 open style || 1 RJ45
Transmission Frame:
RTU
Rohs Exemption Information:
Yes
Product Certifications:
C-tick || NOM 117 || UL || CSA
Nominal Switching Frequency:
12 kHz
Power Range:
7-11 kW 380-440 V 3 phase || 7-11 kW 480-500 V 3 phase
Network Frequency:
47.5...63 Hz
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Regulation Loop:
adjustable PI regulator
Communication Port Protocol:
APOGEE FLN || LonWorks || BACnet || METASYS N2 || Modbus
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 16-16 mm² / AWG 6
Product Or Component Type:
variable speed drive
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Switching Frequency:
6...16 kHz adjustable || 12...16 kHz with derating factor
Width:
180 mm
Line Current:
11.7 A 480 V || 14.7 A 380 V
Number Of Addresses:
1-247
Transmission Rate:
9600 bps or 19200 bps
Braking To Standstill:
by DC injection
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Communication Service:
monitoring inhibitable || read holding registers (03) 2 words maximum || write multiple registers (16) 2 words maximum || write single register (06) || read device identification (43) || time out setting from 0.1 to 100 s
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Option Card:
communication card LonWorks
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Output Voltage:
<= power supply voltage
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Specific Application:
HVAC
Ip Degree Of Protection:
IP20 on upper part without blanking plate on cover IEC 61800-5-1 || IP20 on upper part without blanking plate on cover IEC 60529 || IP21 IEC 61800-5-1 || IP21 IEC 60529 || IP41 on upper part IEC 61800-5-1 || IP41 on upper part IEC 60529
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Discrete And Process Manufacturing:
building - HVAC compressor for scroll || building - HVAC fan || building - HVAC pump
Supply Voltage Limits:
323-528 V
Standards:
IEC 61800-3 || IEC 61800-3 environments 1 category C1 || IEC 61800-3 category C3 || IEC 61800-5-1 || IEC 61800-3 category C2 || IEC 61800-3 environments 1 category C2 || IEC 61800-3 environments 2 category C2 || EN 61800-3 category C3 || IEC 61800-3
Isolation:
electrical between power and control
Assembly Style:
with heat sink
China Rohs Regulation:
X
Mercury Free:
Yes
Apparent Power:
12.2 kVA 380 V
Marking:
CE
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Emc Filter:
Class C2 EMC filter integrated
Speed Range:
45301
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Product Destination:
asynchronous motors
Torque Accuracy:
+/- 15 %
Motor Power Kw:
7.5 kW
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Continuous Output Current:
16 A 380 V || 16 A 460 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ip Degree Of Protection:
IP21
Tightening Torque:
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 2.5 N.m, 22 lb.in L1/R, L2/S, L3/T)
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Maximum Transient Current:
17.6 A 60 s
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Range Of Product:
Altivar 212
Local Signalling:
for DC bus energized 1 LED (red)
Analogue Output Number:
1
Ambient Air Temperature For Storage:
-25-70 °C
Functionality:
mid
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Operating Position:
vertical +/- 10 degree
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01 to 3200 s || automatic based on the load
Device Short Name:
ATV212
Warranty:
18 months
Discrete Output Number:
2
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || automatic whatever the load || adjustable
Product Specific Application:
pumps and fans in HVAC
Brochure:
View
Catalog:
View
Datasheet:
View
$1,230.89

Description

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP21 and it has a built-in EMC filter. It works at a rated power up to 7.5kW / 10hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 6.45kg and its dimensions are, 180mm wide, 232mm high, 170mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
