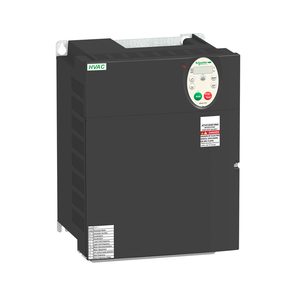

Schneider Electric ATV212WD15N4 Atv212 15Kw 20Hp 480V Tri Cem Ip55

Schneider Electric ATV212WD15N4 Atv212 15Kw 20Hp 480V Tri Cem Ip55

Schneider Electric
SKU:
ATV212WD15N4
|
UPC:
3606480322242
$2,362.46
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 15kW / 20hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 30.3kg and its dimensions are, 290mm wide, 560mm high, 315mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Additional Information
Communication Port Protocol:
Modbus || METASYS N2 || BACnet || LonWorks || APOGEE FLN
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Emc Filter:
Class C2 EMC filter integrated
Data Format:
8 bits, 1 stop, odd even or no configurable parity
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Operating Position:
vertical +/- 10 degree
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || automatic whatever the load || adjustable
Speed Drive Output Frequency:
0.5-200 Hz
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Mercury Free:
Yes
Ip Degree Of Protection:
IP55
Apparent Power:
23.2 kVA 380 V
Phase:
3 phase
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Environmental Disclosure:
ENVPEP111264EN
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Standards:
IEC 61800-5-1 || IEC 61800-3 environments 1 category C1 || IEC 61800-3 category C2 || IEC 61800-3 category C3 || IEC 61800-3 || IEC 61800-3 environments 1 category C2 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 environments 2 category C3
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 16-16 mm² / AWG 4
Speed Range:
45301
Circularity Profile:
ENVEOLI111252EN
China Rohs Regulation:
X
Asynchronous Motor Control Profile:
voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio, 2 points || flux vector control without sensor, standard || voltage/frequency ratio, 5 point
Product Or Component Type:
variable speed drive
Continuous Output Current:
30.5 A 380 V || 30.5 A 460 V
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Ambient Air Temperature For Storage:
-25-70 °C
Type Of Polarization:
no impedance
Ip Degree Of Protection:
IP55 IEC 61800-5-1 || IP55 IEC 60529
Regulation Loop:
adjustable PI regulator
Pollution Degree:
2 IEC 61800-5-1
Net Weight:
30.3 kg
Warranty:
18 months
Local Signalling:
for DC bus energized 1 LED (red)
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Prospective Line Isc:
22 kA
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Product Certifications:
NOM 117 || C-tick || UL || CSA
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Product Specific Application:
pumps and fans in HVAC
Maximum Transient Current:
33.6 A 60 s
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Device Short Name:
ATV212
Assembly Style:
with heat sink
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Physical Interface:
2-wire RS 485
Transmission Frame:
RTU
Option Card:
communication card LonWorks
Acceleration And Deceleration Ramps:
automatic based on the load || linear adjustable separately from 0.01 to 3200 s
Nominal Switching Frequency:
12 kHz
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Noise Level:
57.4 dB 86/188/EEC
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Width:
290 mm
Maximum Horse Power Rating:
20 hp
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Analogue Output Number:
1
Torque Accuracy:
+/- 15 %
Supply Frequency:
50...60 Hz - 5...5 %
Supply Voltage Limits:
323-528 V
Motor Power Kw:
15 kW
Product Destination:
asynchronous motors
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Switching Frequency:
6...16 kHz adjustable || 12...16 kHz with derating factor
Output Voltage:
<= power supply voltage
Discrete Output Number:
2
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Functionality:
mid
Rohs Exemption Information:
Yes
Connector Type:
1 RJ45 || 1 open style
Line Current:
22.6 A 480 V || 28.4 A 380 V
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Isolation:
electrical between power and control
Number Of Addresses:
1-247
Depth:
315 mm
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Analogue Input Number:
2
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Height:
560 mm
Tightening Torque:
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 3 N.m, 26.5 lb.in L1/R, L2/S, L3/T)
Sustainable Offer Status:
Green Premium product
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Network Frequency:
47.5...63 Hz
Specific Application:
HVAC
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Marking:
CE
Braking To Standstill:
by DC injection
Communication Service:
time out setting from 0.1 to 100 s || write single register (06) || write multiple registers (16) 2 words maximum || read device identification (43) || monitoring inhibitable || read holding registers (03) 2 words maximum
Transmission Rate:
9600 bps or 19200 bps
Range Of Product:
Altivar 212
Brochure:
View
Catalog:
View
Datasheet:
View
