Schneider Electric ATV212WD18N4 Atv212 18,5Kw 25Hp 480V Tri Cem Ip55
Schneider Electric
$3,082.19
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ATV212WD18N4 Atv212 18,5Kw 25Hp 480V Tri Cem Ip55

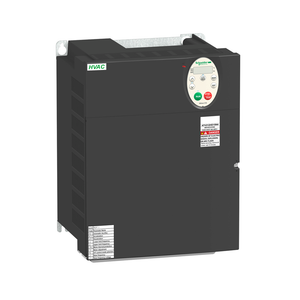

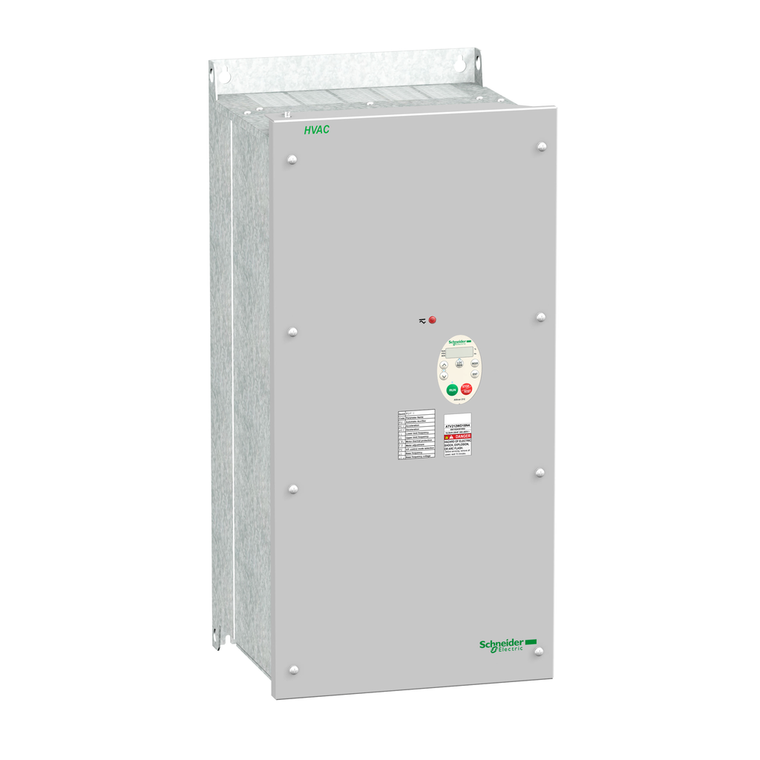

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 18.5kW / 25hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 37.4kg and its dimensions are, 310mm wide, 665mm high, 315mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet. It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
- Assembly Style:
- with heat sink
- Depth:
- 315 mm
- Data Format:
- 8 bits, 1 stop, odd even or no configurable parity
- Transient Overtorque:
- 120-120 % of nominal motor torque +/- 10 % 60 s
- Discrete Input Logic:
- positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
- Local Signalling:
- for DC bus energized 1 LED (red)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Marking:
- CE
- Relative Humidity:
- 5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
- Tightening Torque:
- 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 5.4 N.m, 48 lb.in L1/R, L2/S, L3/T)
- Height:
- 665 mm
- Analogue Input Number:
- 2
- Nominal Switching Frequency:
- 8 kHz
- Functionality:
- mid
- Asynchronous Motor Control Profile:
- flux vector control without sensor, standard || voltage/frequency ratio, 2 points || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, 5 points || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo
- Protection Type:
- overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
- Electromagnetic Compatibility:
- electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
- Supply Frequency:
- 50...60 Hz - 5...5 %
- Warranty:
- 18 months
- Torque Accuracy:
- +/- 15 %
- Line Current:
- 27.8 A 480 V || 34.9 A 380 V
- Analogue Output Number:
- 1
- Response Time:
- FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
- Maximum Transient Current:
- 40.7 A 60 s
- Vibration Resistance:
- 1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
- Speed Accuracy:
- +/- 10 % of nominal slip 0.2 Tn to Tn
- Sampling Duration:
- 2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
- Frequency Resolution:
- display unit 0.1 Hz || analog input 0.024/50 Hz
- Net Weight:
- 37.4 kg
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Product Or Component Type:
- variable speed drive
- Emc Filter:
- Class C2 EMC filter integrated
- Speed Drive Output Frequency:
- 0.5-200 Hz
- Network Frequency:
- 47.5...63 Hz
- Transmission Frame:
- RTU
- Sustainable Offer Status:
- Green Premium product
- Speed Range:
- 45301
- Accuracy:
- +/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
- China Rohs Regulation:
- X
- Operating Altitude:
- 3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
- Isolation:
- electrical between power and control
- Analogue Output Type:
- FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
- Noise Level:
- 60.2 dB 86/188/EEC
- Environmental Disclosure:
- ENVPEP111264EN
- Supply:
- internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
- Ip Degree Of Protection:
- IP55
- Device Short Name:
- ATV212
- Output Voltage:
- <= power supply voltage
- Product Certifications:
- NOM 117 || UL || C-tick || CSA
- Dielectric Strength:
- 3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
- Standards:
- EN 55011 class A group 1 || IEC 61800-3 environments 2 category C3 || IEC 61800-3 environments 1 category C3 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 environments 1 category C2 || IEC 61800-3 environments 2 category C1 || IEC 61800-5-
- Maximum Horse Power Rating:
- 25 hp
- Option Card:
- communication card LonWorks
- [Us] Rated Supply Voltage:
- 380...480 V - 15...10 %
- Phase:
- 3 phase
- Discrete Output Number:
- 2
- Braking To Standstill:
- by DC injection
- Minimum Switching Current:
- 3 mA 24 V DC configurable relay logic
- Type Of Cable:
- without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
- Mercury Free:
- Yes
- Motor Slip Compensation:
- adjustable || automatic whatever the load || not available in voltage/frequency ratio motor control
- Apparent Power:
- 28.2 kVA 380 V
- Maximum Switching Current:
- 5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
- Physical Interface:
- 2-wire RS 485
- Rohs Exemption Information:
- Yes
- Connector Type:
- 1 RJ45 || 1 open style
- Environmental Characteristic:
- classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
- Range Of Product:
- Altivar 212
- Width:
- 310 mm
- Electrical Connection:
- VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 25-25 mm² / AWG 3
- Specific Application:
- HVAC
- Number Of Addresses:
- 1-247
- Communication Port Protocol:
- METASYS N2 || LonWorks || BACnet || APOGEE FLN || Modbus
- Discrete Output Type:
- configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
- Analogue Input Type:
- VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
- Insulation Resistance:
- >= 1 mOhm 500 V DC for 1 minute
- Continuous Output Current:
- 37 A 380 V || 37 A 460 V
- Supply Voltage Limits:
- 323-528 V
- Switching Frequency:
- 6...16 kHz adjustable || 8...16 kHz with derating factor
- Product Specific Application:
- pumps and fans in HVAC
- Ip Degree Of Protection:
- IP55 IEC 61800-5-1 || IP55 IEC 60529
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pollution Degree:
- 2 IEC 61800-5-1
- Transmission Rate:
- 9600 bps or 19200 bps
- Acceleration And Deceleration Ramps:
- linear adjustable separately from 0.01 to 3200 s || automatic based on the load
- Product Destination:
- asynchronous motors
- Ambient Air Temperature For Operation:
- -10-40 °C without derating) || 40-50 °C with derating factor)
- Ambient Air Temperature For Storage:
- -25-70 °C
- Discrete Input Type:
- F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
- Operating Position:
- vertical +/- 10 degree
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Linearity Error:
- VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
- Shock Resistance:
- 15 gn 11 ms IEC 60068-2-27
- Prospective Line Isc:
- 22 kA
- Circularity Profile:
- ENVEOLI111252EN
- Type Of Polarization:
- no impedance
- Communication Service:
- read device identification (43) || time out setting from 0.1 to 100 s || monitoring inhibitable || write single register (06) || read holding registers (03) 2 words maximum || write multiple registers (16) 2 words maximum
- Regulation Loop:
- adjustable PI regulator
- Motor Power Kw:
- 18.5 kW
