Schneider Electric ATV212WD22N4 Atv212 22Kw 30Hp 480V Tri Cem Ip55

Schneider Electric ATV212WD22N4 Atv212 22Kw 30Hp 480V Tri Cem Ip55

Schneider Electric
SKU:
ATV212WD22N4
|
UPC:
3606480322266
$4,153.11
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

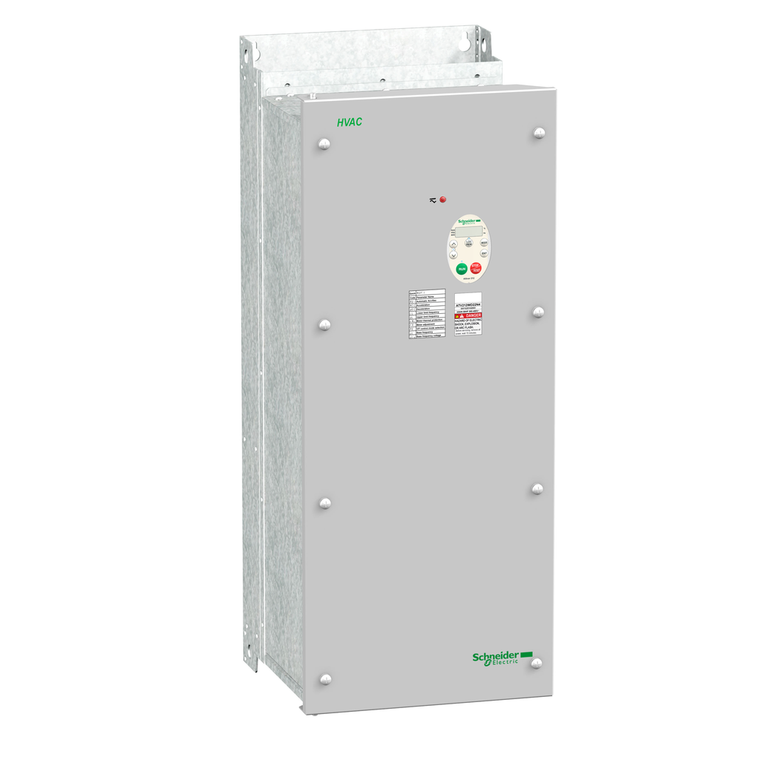

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 22kW / 30hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 49.5kg and its dimensions are, 284mm wide, 720mm high, 315mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Additional Information
Network Frequency:
47.5...63 Hz
Local Signalling:
for DC bus energized 1 LED (red)
Standards:
IEC 61800-3 environments 2 category C3 || IEC 61800-3 environments 1 category C3 || IEC 61800-3 environments 2 category C1 || IEC 61800-3 category C3 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 || IEC 61800-3 environments 1 category C2 |
Motor Power Kw:
22 kW
Ip Degree Of Protection:
IP55
Communication Port Protocol:
METASYS N2 || LonWorks || BACnet || APOGEE FLN || Modbus
Net Weight:
49.5 kg
Warranty:
18 months
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Line Current:
33.1 A 480 V || 41.6 A 380 V
Functionality:
mid
Speed Drive Output Frequency:
0.5-200 Hz
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Torque Accuracy:
+/- 15 %
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Apparent Power:
33.2 kVA 380 V
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Maximum Transient Current:
47.9 A 60 s
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Prospective Line Isc:
22 kA
Specific Application:
HVAC
Continuous Output Current:
43.5 A 380 V || 43.5 A 460 V
Ambient Air Temperature For Storage:
-25-70 °C
Product Specific Application:
pumps and fans in HVAC
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Acceleration And Deceleration Ramps:
automatic based on the load || linear adjustable separately from 0.01 to 3200 s
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Product Or Component Type:
variable speed drive
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || automatic whatever the load || adjustable
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Device Short Name:
ATV212
Mercury Free:
Yes
Number Of Addresses:
1-247
Marking:
CE
Sustainable Offer Status:
Green Premium product
Communication Service:
write multiple registers (16) 2 words maximum || read device identification (43) || write single register (06) || monitoring inhibitable || read holding registers (03) 2 words maximum || time out setting from 0.1 to 100 s
Assembly Style:
with heat sink
Switching Frequency:
6...16 kHz adjustable || 8...16 kHz with derating factor
Width:
284 mm
Product Certifications:
UL || CSA || NOM 117 || C-tick
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 50-50 mm² / AWG 1/0
Circularity Profile:
ENVEOLI111242EN
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Braking To Standstill:
by DC injection
Speed Range:
45301
Isolation:
electrical between power and control
Rohs Exemption Information:
Yes
Product Destination:
asynchronous motors
China Rohs Regulation:
X
Supply Frequency:
50...60 Hz - 5...5 %
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Height:
720 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range Of Product:
Altivar 212
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Physical Interface:
2-wire RS 485
Analogue Input Number:
2
Phase:
3 phase
Connector Type:
1 open style || 1 RJ45
Regulation Loop:
adjustable PI regulator
Transmission Rate:
9600 bps or 19200 bps
Tightening Torque:
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 24 N.m, 212 lb.in L1/R, L2/S, L3/T)
Transmission Frame:
RTU
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Nominal Switching Frequency:
8 kHz
Ip Degree Of Protection:
IP55 IEC 61800-5-1 || IP55 IEC 60529
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Emc Filter:
Class C2 EMC filter integrated
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Analogue Output Number:
1
Output Voltage:
<= power supply voltage
Depth:
315 mm
Asynchronous Motor Control Profile:
voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio, 2 point
Type Of Polarization:
no impedance
Pollution Degree:
3 IEC 61800-5-1
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Discrete Output Number:
2
Option Card:
communication card LonWorks
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Environmental Disclosure:
ENVPEP111244EN
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Noise Level:
59.9 dB 86/188/EEC
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Maximum Horse Power Rating:
30 hp
Supply Voltage Limits:
323-528 V
Operating Position:
vertical +/- 10 degree
