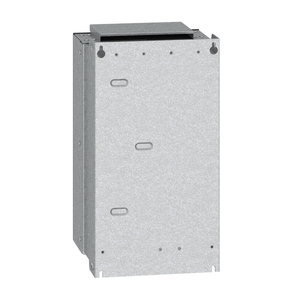

Schneider Electric ATV212WD30N4 Atv212 30Kw 40Hp 480V Tri Cem Ip55

Schneider Electric ATV212WD30N4 Atv212 30Kw 40Hp 480V Tri Cem Ip55

Schneider Electric
SKU:
ATV212WD30N4
|
UPC:
3606480322273
$4,450.35
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 30kW / 40hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 49.5kg and its dimensions are, 284mm wide, 720mm high, 315mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Additional Information
Marking:
CE
Maximum Horse Power Rating:
40 hp
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Motor Power Kw:
30 kW
Local Signalling:
for DC bus energized 1 LED (red)
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation:
X
Line Current:
44.7 A 480 V || 56.7 A 380 V
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Product Specific Application:
pumps and fans in HVAC
Depth:
315 mm
Emc Filter:
Class C2 EMC filter integrated
Assembly Style:
with heat sink
Net Weight:
49.5 kg
Analogue Input Number:
2
Height:
720 mm
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Device Short Name:
ATV212
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || adjustable || automatic whatever the load
Communication Service:
read holding registers (03) 2 words maximum || time out setting from 0.1 to 100 s || read device identification (43) || write multiple registers (16) 2 words maximum || monitoring inhibitable || write single register (06)
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Mercury Free:
Yes
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Connector Type:
1 RJ45 || 1 open style
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Communication Port Protocol:
BACnet || METASYS N2 || APOGEE FLN || LonWorks || Modbus
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Warranty:
18 months
Discrete Output Number:
2
Environmental Disclosure:
ENVPEP111244EN
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Option Card:
communication card LonWorks
Tightening Torque:
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 24 N.m, 212 lb.in L1/R, L2/S, L3/T)
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 50-50 mm² / AWG 1/0
Ip Degree Of Protection:
IP55 IEC 61800-5-1 || IP55 IEC 60529
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Sustainable Offer Status:
Green Premium product
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Continuous Output Current:
58.5 A 380 V || 58.5 A 460 V
Analogue Output Number:
1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Isolation:
electrical between power and control
Physical Interface:
2-wire RS 485
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Transmission Frame:
RTU
Pollution Degree:
3 IEC 61800-5-1
Transmission Rate:
9600 bps or 19200 bps
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Switching Frequency:
6...16 kHz adjustable || 8...16 kHz with derating factor
Ambient Air Temperature For Storage:
-25-70 °C
Braking To Standstill:
by DC injection
Product Destination:
asynchronous motors
Specific Application:
HVAC
Ip Degree Of Protection:
IP55
Maximum Transient Current:
64.4 A 60 s
Speed Drive Output Frequency:
0.5-200 Hz
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Phase:
3 phase
Operating Position:
vertical +/- 10 degree
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Circularity Profile:
ENVEOLI111242EN
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01 to 3200 s || automatic based on the load
Standards:
IEC 61800-3 environments 1 category C2 || IEC 61800-5-1 || IEC 61800-3 category C2 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 environments 1 category C1 || IEC 61800-3 environments 2 category C3 || EN 55011 class A group 1 || IEC 61800-
Prospective Line Isc:
22 kA
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Regulation Loop:
adjustable PI regulator
Output Voltage:
<= power supply voltage
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Torque Accuracy:
+/- 15 %
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Network Frequency:
47.5...63 Hz
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Nominal Switching Frequency:
8 kHz
Width:
284 mm
Apparent Power:
44.6 kVA 380 V
Range Of Product:
Altivar 212
Noise Level:
59.9 dB 86/188/EEC
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Supply Voltage Limits:
323-528 V
Functionality:
mid
Type Of Polarization:
no impedance
Product Certifications:
C-tick || CSA || UL || NOM 117
Product Or Component Type:
variable speed drive
Number Of Addresses:
1-247
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Rohs Exemption Information:
Yes
Speed Range:
45301
Supply Frequency:
50...60 Hz - 5...5 %
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Asynchronous Motor Control Profile:
flux vector control without sensor, standard || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, 2 points || voltage/frequency ratio, 5 point
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
