Schneider Electric

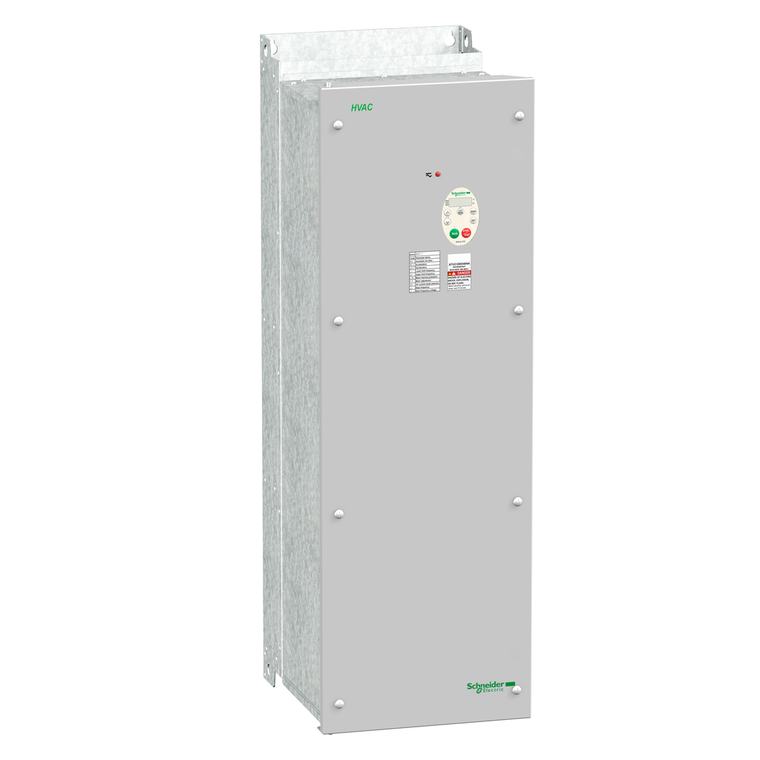

Schneider Electric ATV212WD37N4 Atv212 37Kw 50Hp 460V Tri Ip55

(No reviews yet) Write a Review
SKU:
ATV212WD37N4
UPC:
3.60648E+12
Condition:
New
Sustainable Offer Status:
Green Premium product
Type Of Polarization:
no impedance
Pollution Degree:
3 IEC 61800-5-1
Ip Degree Of Protection:
IP55
Emc Filter:
Class C2 EMC filter integrated
Line Current:
68.9 A 380 V || 54.4 A 480 V
Output Voltage:
<= power supply voltage
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Analogue Input Number:
2
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Supply Voltage Limits:
323-528 V
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Mercury Free:
Yes
Communication Service:
read holding registers (03) 2 words maximum || monitoring inhibitable || write single register (06) || write multiple registers (16) 2 words maximum || read device identification (43) || time out setting from 0.1 to 100 s
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Supply Frequency:
50...60 Hz - 5...5 %
Network Frequency:
47.5...63 Hz
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Continuous Output Current:
79 A 380 V || 79 A 460 V
Width:
284 mm
Product Destination:
asynchronous motors
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
China Rohs Regulation:
X
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 50-50 mm² / AWG 1/0
Environmental Disclosure:
ENVPEP111244EN
Specific Application:
HVAC
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Transmission Rate:
9600 bps or 19200 bps
Phase:
3 phase
Analogue Output Number:
1
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Depth:
343 mm
Marking:
CE
Asynchronous Motor Control Profile:
voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || flux vector control without sensor, standard || voltage/frequency ratio, 2 points || voltage/frequency ratio, 5 points || voltage/frequency ratio - Energy Saving, quadratic U/
Rohs Exemption Information:
Yes
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || adjustable || automatic whatever the load
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Ambient Air Temperature For Storage:
-25-70 °C
Ip Degree Of Protection:
IP55 IEC 61800-5-1 || IP55 IEC 60529
Noise Level:
64 dB 86/188/EEC
Physical Interface:
2-wire RS 485
Height:
880 mm
Apparent Power:
52 kVA 380 V
Product Specific Application:
pumps and fans in HVAC
Operating Position:
vertical +/- 10 degree
Warranty:
18 months
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Switching Frequency:
6...16 kHz adjustable || 8...16 kHz with derating factor
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Circularity Profile:
ENVEOLI111242EN
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Discrete Output Number:
2
Range Of Product:
Altivar 212
Number Of Addresses:
1-247
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Speed Drive Output Frequency:
0.5-200 Hz
Product Certifications:
NOM 117 || UL || C-tick || CSA
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Assembly Style:
with heat sink
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Communication Port Protocol:
LonWorks || Modbus || APOGEE FLN || METASYS N2 || BACnet
Maximum Horse Power Rating:
50 hp
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Connector Type:
1 open style || 1 RJ45
Option Card:
communication card LonWorks
Standards:
IEC 61800-3 || IEC 61800-5-1 || IEC 61800-3 environments 1 category C3 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 environments 2 category C1 || IEC 61800-3 environments 1 category C2 || EN 55011 class A group 1 || IEC 61800-3 environmen
Product Or Component Type:
variable speed drive
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Torque Accuracy:
+/- 15 %
Prospective Line Isc:
22 kA
Braking To Standstill:
by DC injection
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Transmission Frame:
RTU
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Tightening Torque:
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 24 N.m, 212 lb.in L1/R, L2/S, L3/T)
Regulation Loop:
adjustable PI regulator
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Maximum Transient Current:
86.9 A 60 s
Isolation:
electrical between power and control
Local Signalling:
for DC bus energized 1 LED (red)
Speed Range:
45301
Device Short Name:
ATV212
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01 to 3200 s || automatic based on the load
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Functionality:
mid
Nominal Switching Frequency:
8 kHz
Motor Power Kw:
37 kW
Brochure:
View
Catalog:
View
Datasheet:
View
$5,032.35

Description

This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 37kW / 50hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 57.4kg and its dimensions are, 284mm wide, 880mm high, 343mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
