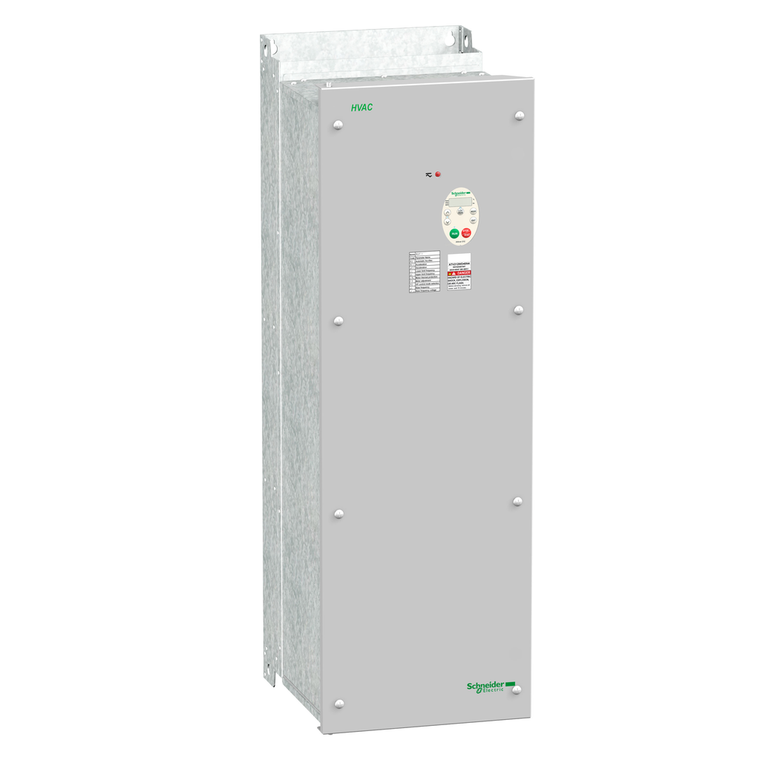

Schneider Electric ATV212WD45N4 Atv212 45Kw 60Hp 460V Tri Ip55

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATV212WD45N4 Atv212 45Kw 60Hp 460V Tri Ip55

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV212WD45N4

UPC:

3.60648E+12

MPN:

Condition:

New

Protection Type:

overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit

Output Voltage:

<= power supply voltage

Transmission Rate:

9600 bps or 19200 bps

Functionality:

mid

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Regulation Loop:

adjustable PI regulator

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury Free:

Yes

Speed Range:

45301

Ip Degree Of Protection:

IP55 IEC 61800-5-1 || IP55 IEC 60529

Width:

284 mm

Nominal Switching Frequency:

8 kHz

Connector Type:

1 RJ45 || 1 open style

Speed Drive Output Frequency:

0.5-200 Hz

Linearity Error:

VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output

Speed Accuracy:

+/- 10 % of nominal slip 0.2 Tn to Tn

Supply:

internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection

Height:

880 mm

Standards:

IEC 61800-3 category C3 || IEC 61800-3 environments 1 category C3 || IEC 61800-5-1 || IEC 61800-3 environments 2 category C2 || IEC 61800-3 || IEC 61800-3 environments 2 category C1 || IEC 61800-3 category C2 || EN 55011 class A group 1 || IEC 61800-

Range Of Product:

Altivar 212

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Transient Current:

103.4 A 60 s

Minimum Switching Current:

3 mA 24 V DC configurable relay logic

Braking To Standstill:

by DC injection

Communication Service:

read holding registers (03) 2 words maximum || read device identification (43) || time out setting from 0.1 to 100 s || write multiple registers (16) 2 words maximum || monitoring inhibitable || write single register (06)

Pollution Degree:

3 IEC 61800-5-1

Circularity Profile:

ENVEOLI111242EN

Depth:

343 mm

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Transient Overtorque:

120-120 % of nominal motor torque +/- 10 % 60 s

Option Card:

communication card LonWorks

Prospective Line Isc:

22 kA

Sampling Duration:

2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog

Product Specific Application:

pumps and fans in HVAC

Analogue Input Number:

2

Phase:

3 phase

Supply Voltage Limits:

323-528 V

Analogue Output Number:

1

Maximum Switching Current:

5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)

Network Frequency:

47.5...63 Hz

Data Format:

8 bits, 1 stop, odd even or no configurable parity

Communication Port Protocol:

BACnet || APOGEE FLN || Modbus || LonWorks || METASYS N2

Supply Frequency:

50...60 Hz - 5...5 %

Maximum Horse Power Rating:

60 hp

Number Of Addresses:

1-247

Torque Accuracy:

+/- 15 %

Local Signalling:

for DC bus energized 1 LED (red)

Electrical Connection:

VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 50-50 mm² / AWG 1/0

Discrete Input Type:

F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm

Operating Position:

vertical +/- 10 degree

Sustainable Offer Status:

Green Premium product

Apparent Power:

61.9 kVA 380 V

Product Destination:

asynchronous motors

Insulation Resistance:

>= 1 mOhm 500 V DC for 1 minute

Discrete Input Logic:

positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V

Tightening Torque:

0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 24 N.m, 212 lb.in L1/R, L2/S, L3/T)

Switching Frequency:

6...16 kHz adjustable || 8...16 kHz with derating factor

Operating Altitude:

3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating

China Rohs Regulation:

X

Ip Degree Of Protection:

IP55

Marking:

CE

Analogue Input Type:

VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits

Continuous Output Current:

94 A 380 V || 94 A 460 V

Discrete Output Type:

configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles

Asynchronous Motor Control Profile:

flux vector control without sensor, standard || voltage/frequency ratio, 2 points || voltage/frequency ratio, 5 points || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo

Assembly Style:

with heat sink

Physical Interface:

2-wire RS 485

Environmental Disclosure:

ENVPEP111244EN

Frequency Resolution:

display unit 0.1 Hz || analog input 0.024/50 Hz

Transmission Frame:

RTU

Product Or Component Type:

variable speed drive

Isolation:

electrical between power and control

Type Of Cable:

without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC

Warranty:

18 months

Discrete Output Number:

2

Acceleration And Deceleration Ramps:

automatic based on the load || linear adjustable separately from 0.01 to 3200 s

Device Short Name:

ATV212

Noise Level:

64 dB 86/188/EEC

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Line Current:

83.8 A 380 V || 65.9 A 480 V

Dielectric Strength:

3535 V DC between earth and power terminals || 5092 V DC between control and power terminals

Environmental Characteristic:

classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3

Motor Slip Compensation:

automatic whatever the load || not available in voltage/frequency ratio motor control || adjustable

Specific Application:

HVAC

Relative Humidity:

5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3

Type Of Polarization:

no impedance

Response Time:

FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Ambient Air Temperature For Storage:

-25-70 °C

Motor Power Kw:

45 kW

Emc Filter:

Class C2 EMC filter integrated

Rohs Exemption Information:

Yes

Vibration Resistance:

1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8

Accuracy:

+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C

Analogue Output Type:

FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Operation:

-10-40 °C without derating) || 40-50 °C with derating factor)

Product Certifications:

NOM 117 || C-tick || UL || CSA
