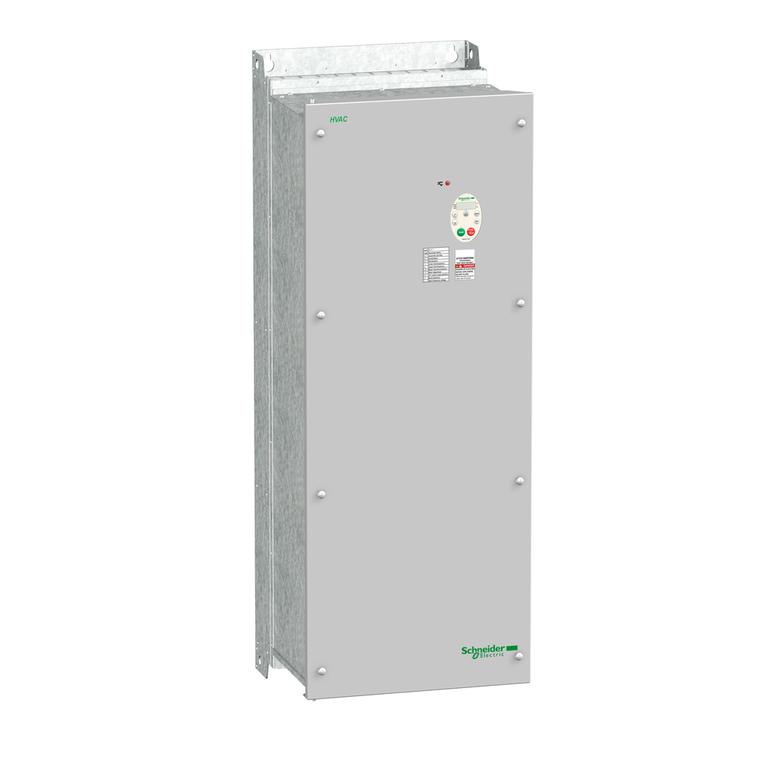

Schneider Electric ATV212WD75N4 Atv212 75Kw 100Hp 460V Tri Ip55

Schneider Electric ATV212WD75N4 Atv212 75Kw 100Hp 460V Tri Ip55

Schneider Electric
SKU:
ATV212WD75N4
|
UPC:
3606480322310
$8,493.74
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 75kW / 100hp and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 61.9kg and its dimensions are, 362mm wide, 1000mm high, 364mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Additional Information
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Assembly Style:
with heat sink
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Circularity Profile:
ENVEOLI111242EN
Warranty:
18 months
Braking To Standstill:
by DC injection
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Maximum Transient Current:
176 A 60 s
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Communication Port Protocol:
BACnet || METASYS N2 || Modbus || LonWorks || APOGEE FLN
Isolation:
electrical between power and control
Motor Power Kw:
75 kW
Apparent Power:
105.3 kVA 380 V
Phase:
3 phase
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Width:
362 mm
Transmission Rate:
9600 bps or 19200 bps
Nominal Switching Frequency:
8 kHz
Motor Slip Compensation:
adjustable || not available in voltage/frequency ratio motor control || automatic whatever the load
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Product Destination:
asynchronous motors
Analogue Output Number:
1
Depth:
364 mm
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Operating Position:
vertical +/- 10 degree
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Standards:
IEC 61800-3 environments 2 category C2 || IEC 61800-3 environments 2 category C3 || IEC 61800-3 category C2 || IEC 61800-3 category C3 || IEC 61800-3 environments 1 category C2 || IEC 61800-3 || IEC 61800-5-1 || IEC 61800-3 environments 1 category C3
Ip Degree Of Protection:
IP55
Local Signalling:
for DC bus energized 1 LED (red)
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01 to 3200 s || automatic based on the load
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Supply Frequency:
50...60 Hz - 5...5 %
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Noise Level:
63.7 dB 86/188/EEC
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Range Of Product:
Altivar 212
Tightening Torque:
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES) || 41 N.m, 360 lb.in L1/R, L2/S, L3/T)
Type Of Polarization:
no impedance
Transmission Frame:
RTU
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Product Or Component Type:
variable speed drive
Ip Degree Of Protection:
IP55 IEC 61800-5-1 || IP55 IEC 60529
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Height:
1000 mm
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 150-150 mm² 300 kcmil)
Functionality:
mid
Supply Voltage Limits:
323-528 V
Continuous Output Current:
160 A 380 V || 160 A 460 V
Number Of Addresses:
1-247
Speed Drive Output Frequency:
0.5-200 Hz
Switching Frequency:
6...16 kHz adjustable || 8...16 kHz with derating factor
Prospective Line Isc:
22 kA
Product Certifications:
UL || NOM 117 || CSA || C-tick
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Pollution Degree:
3 IEC 61800-5-1
Physical Interface:
2-wire RS 485
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Communication Service:
write single register (06) || time out setting from 0.1 to 100 s || read device identification (43) || write multiple registers (16) 2 words maximum || monitoring inhibitable || read holding registers (03) 2 words maximum
Speed Range:
45301
Connector Type:
1 RJ45 || 1 open style
Output Voltage:
<= power supply voltage
Environmental Disclosure:
ENVPEP111244EN
Device Short Name:
ATV212
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Specific Application:
HVAC
Line Current:
141.8 A 380 V || 111.3 A 480 V
Torque Accuracy:
+/- 15 %
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Sustainable Offer Status:
Green Premium product
Option Card:
communication card LonWorks
Emc Filter:
Class C2 EMC filter integrated
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Rohs Exemption Information:
Yes
Ambient Air Temperature For Storage:
-25-70 °C
Network Frequency:
47.5...63 Hz
Regulation Loop:
adjustable PI regulator
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Maximum Horse Power Rating:
100 hp
Product Specific Application:
pumps and fans in HVAC
Marking:
CE
Asynchronous Motor Control Profile:
voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor, standard || voltage/frequency ratio, 5 points || voltage/frequency ratio, 2 points || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Analogue Input Number:
2
Mercury Free:
Yes
China Rohs Regulation:
X
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Discrete Output Number:
2
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
