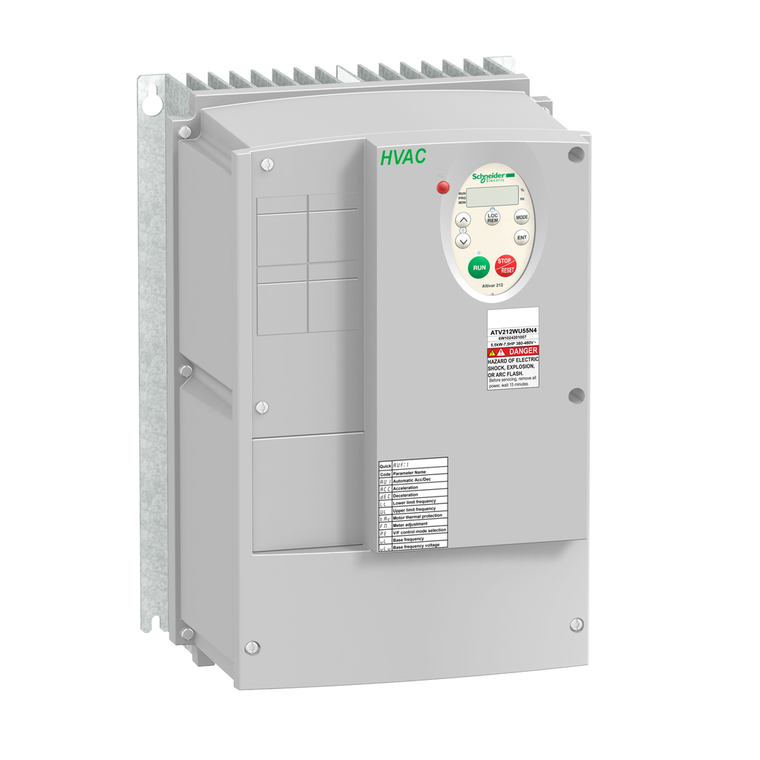

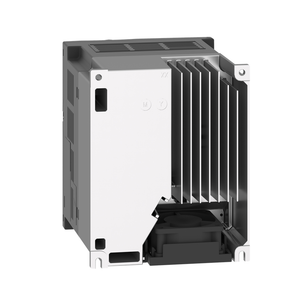

Schneider Electric ATV212WU30N4 Atv212 3Kw Nahp 480V Tri Cem Ip55

Schneider Electric ATV212WU30N4 Atv212 3Kw Nahp 480V Tri Cem Ip55

Schneider Electric
SKU:
ATV212WU30N4
|
UPC:
3606480322686
$1,100.09
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Altivar 212 variable speed drive can feed 3-phase asynchronous motors. Its protection index is IP55 and it has a built-in EMC filter. It works at a rated power up to 3kW and a rated voltage from 380V to 480V AC. Its design is based on eco-energy with a reduction in energy consumption of up to 70% compared to a conventional control system. Thanks to its cable temperature rise reduction technology, the Altivar 212 drive offers immediate, disturbance-free operation avoiding additional options such as a line choke or DC choke to deal with current harmonics. It weighs 9.65kg and its dimensions are, 230mm wide, 340mm high, 208mm deep. It is specifically designed for the most common fluid management applications in tertiary sector buildings (HVAC) like heating, ventilation, air conditioning and pumping. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, C-Tick and NOM certified. The Altivar 212 offers optional motor chokes which can increase the maximum cable lengths between the drive and the motor and limit disturbance at the motor terminals. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. The Altivar 212 drive can easily be adapted to all building management systems thanks to its numerous functions and communication protocols integrated as standard, Modbus, METASYS N2, APOGEE FLN P1 and BACnet.
Additional Information
Relative Humidity:
5-95 % without condensation IEC 60068-2-3 || 5-95 % without dripping water IEC 60068-2-3
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Sustainable Offer Status:
Green Premium product
Maximum Switching Current:
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R) || 5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R) || 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R) || 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R)
Switching Frequency:
6...16 kHz adjustable || 12...16 kHz with derating factor
Ip Degree Of Protection:
IP55
Pollution Degree:
3 IEC 61800-5-1
Phase:
3 phase
Discrete Output Number:
2
Frequency Resolution:
display unit 0.1 Hz || analog input 0.024/50 Hz
Connector Type:
1 open style || 1 RJ45
Electrical Connection:
VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES terminal 2.5-2.5 mm² / AWG 14 || L1/R, L2/S, L3/T terminal 6-6 mm² / AWG 10
Analogue Output Type:
FM switch-configurable voltage 0...10 V DC 7620 Ohm 10 bits || FM switch-configurable current 0...20 mA 970 Ohm 10 bits
Environmental Characteristic:
classes 3C1 IEC 60721-3-3 || classes 3S2 IEC 60721-3-3
Maximum Horse Power Rating:
4 hp
Emc Filter:
Class C2 EMC filter integrated
Local Signalling:
for DC bus energized 1 LED (red)
Number Of Addresses:
1-247
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 A overload and short-circuit protection || internal supply 24 V DC 21-27 V), <200 A overload and short-circuit protection
Analogue Output Number:
1
Assembly Style:
with heat sink
Speed Range:
45301
Motor Power Kw:
3 kW
Braking To Standstill:
by DC injection
Torque Accuracy:
+/- 15 %
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Ambient Air Temperature For Operation:
-10-40 °C without derating) || 40-50 °C with derating factor)
Transmission Frame:
RTU
Prospective Line Isc:
5 kA
Linearity Error:
VIA +/- 0.15 % of maximum value input || VIB +/- 0.15 % of maximum value input || FM +/- 0.2 % output
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Noise Level:
55 dB 86/188/EEC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Or Component Type:
variable speed drive
Standards:
IEC 61800-3 environments 1 category C3 || EN 61800-3 category C3 || IEC 61800-3 || IEC 61800-3 environments 2 category C1 || IEC 61800-3 category C2 || IEC 61800-5-1 || EN 55011 class A group 1 || IEC 61800-3 environments 2 category C3 || IEC 61800-3
Nominal Switching Frequency:
12 kHz
Speed Drive Output Frequency:
0.5-200 Hz
Environmental Disclosure:
ENVPEP111228EN
Option Card:
communication card LonWorks
Discrete Input Logic:
positive logic (source) F, R, RES), <= 5 V, >= 11 V || negative logic (sink) F, R, RES), >= 16 V, <= 10 V
Maximum Transient Current:
7.9 A 60 s
Functionality:
mid
Mercury Free:
Yes
Apparent Power:
5.5 kVA 380 V
Net Weight:
9.65 kg
Height:
340 mm
Range Of Product:
Altivar 212
Communication Service:
read device identification (43) || read holding registers (03) 2 words maximum || write single register (06) || write multiple registers (16) 2 words maximum || monitoring inhibitable || time out setting from 0.1 to 100 s
Supply Voltage Limits:
323-528 V
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Warranty:
18 months
Dielectric Strength:
3535 V DC between earth and power terminals || 5092 V DC between control and power terminals
Acceleration And Deceleration Ramps:
automatic based on the load || linear adjustable separately from 0.01 to 3200 s
Regulation Loop:
adjustable PI regulator
Analogue Input Type:
VIA switch-configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable voltage 0...10 V DC 24 V max 30000 Ohm 10 bits || VIB configurable PTC probe 0...6 probes 1500 Ohm || VIA switch-configurable current 0...20 mA 250 Ohm 10 bits
Device Short Name:
ATV212
Response Time:
FM 2 ms +/- 0.5 ms analog || FLA, FLC 7 ms +/- 0.5 ms discrete || FLB, FLC 7 ms +/- 0.5 ms discrete || RY, RC 7 ms +/- 0.5 ms discrete
Specific Application:
HVAC
Output Voltage:
<= power supply voltage
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Discrete Output Type:
configurable relay logic FLA, FLC) NO - 100000 cycles || configurable relay logic FLB, FLC) NC - 100000 cycles || configurable relay logic RY, RC) NO - 100000 cycles
Motor Slip Compensation:
not available in voltage/frequency ratio motor control || automatic whatever the load || adjustable
Data Format:
8 bits, 1 stop, odd even or no configurable parity
Width:
230 mm
Insulation Resistance:
>= 1 mOhm 500 V DC for 1 minute
Isolation:
electrical between power and control
Asynchronous Motor Control Profile:
voltage/frequency ratio, 5 points || voltage/frequency ratio - Energy Saving, quadratic U/f || voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) || voltage/frequency ratio, 2 points || flux vector control without sensor, standar
Line Current:
4.9 A 480 V || 6.2 A 380 V
Type Of Polarization:
no impedance
Ip Degree Of Protection:
IP55 IEC 61800-5-1 || IP55 IEC 60529
Protection Type:
overheating protection drive || thermal power stage drive || short-circuit between motor phases drive || input phase breaks drive || overcurrent between output phases and earth drive || overvoltages on the DC bus drive || break on the control circuit
Transmission Rate:
9600 bps or 19200 bps
Ambient Air Temperature For Storage:
-25-70 °C
Vibration Resistance:
1.5 mm 3-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)EN/IEC 60068-2-8
Circularity Profile:
ENVEOLI111234EN
Product Certifications:
UL || C-tick || CSA || NOM 117
Supply Frequency:
50...60 Hz - 5...5 %
Depth:
208 mm
Operating Position:
vertical +/- 10 degree
China Rohs Regulation:
X
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Sampling Duration:
2 ms +/- 0.5 ms F discrete || 2 ms +/- 0.5 ms R discrete || 2 ms +/- 0.5 ms RES discrete || 3.5 ms +/- 0.5 ms VIA analog || 22 ms +/- 0.5 ms VIB analog
Physical Interface:
2-wire RS 485
Product Destination:
asynchronous motors
Discrete Input Type:
F programmable 24 V DC level 1 PLC 4700 Ohm || R programmable 24 V DC level 1 PLC 4700 Ohm || RES programmable 24 V DC level 1 PLC 4700 Ohm
Continuous Output Current:
7.2 A 380 V || 7.2 A 460 V
Type Of Cable:
without mounting kit 1 IEC cable 45 °C, copper 90 °C / XLPE/EPR || without mounting kit 1 IEC cable 45 °C, copper 70 °C / PVC || with UL Type 1 kit 3 UL 508 cable 40 °C, copper 75 °C / PVC
Transient Overtorque:
120-120 % of nominal motor torque +/- 10 % 60 s
Tightening Torque:
1.3 N.m, 11.5 lb.in L1/R, L2/S, L3/T) || 0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES)
Operating Altitude:
3280.84...9842.52 ft (1000...3000 m) limited to 2000 m for the Corner Grounded distribution network with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Minimum Switching Current:
3 mA 24 V DC configurable relay logic
Accuracy:
+/- 0.6 % VIA) for a temperature variation 60 °C || +/- 0.6 % VIB) for a temperature variation 60 °C || +/- 1 % FM) for a temperature variation 60 °C
Rohs Exemption Information:
Yes
Analogue Input Number:
2
Marking:
CE
Network Frequency:
47.5...63 Hz
Product Specific Application:
pumps and fans in HVAC
Communication Port Protocol:
BACnet || APOGEE FLN || METASYS N2 || Modbus || LonWorks
