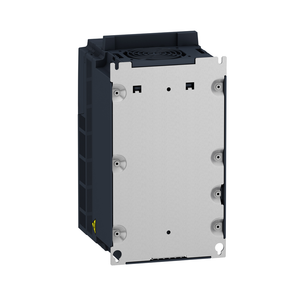

Schneider Electric ATV320D11S6C Atv320 11Kw 600V 3Ph Compact Control Var

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATV320D11S6C Atv320 11Kw 600V 3Ph Compact Control Var

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV320D11S6C

UPC:

3606480966859

MPN:

Condition:

New

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Marking:

CE || ATEX || UL || CSA || EAC || RCM

Asynchronous Motor Control Profile:

voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points

Emc Filter:

without EMC filter

Format Of The Drive:

compact

[Us] Rated Supply Voltage:

525...600 V - 15...10 %

Discrete Input Logic:

positive logic (source) || negative logic (sink)

Height:

330 mm

Network Frequency:

50-60 Hz

Acceleration And Deceleration Ramps:

linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection

Analogue Output Number:

1

Environmental Disclosure:

ENVPEP2311022

Line Current:

15.8 A 525 V heavy duty) || 14.1 A 600 V heavy duty)

4 Quadrant Operation Possible:

TRUE

Product Or Component Type:

variable speed drive

Base Load Current At High Overload:

6.9 A

With Safety Function Safe Programmable Logic:

FALSE

Transient Overtorque:

170-200 % of nominal motor torque

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Rohs Exemption Information:

Yes

Circularity Profile:

ENVEOLI2311022

With Safety Function Safely Limited Speed (Sls):

TRUE

Motor Power Kw:

11 kW heavy duty

Operating Position:

vertical +/- 10 degree

Power Dissipation In W:

fan 267.0 W 525 V 4 kHz

Analogue Input Type:

AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits

With Safety Function Safe Direction (Sdi):

FALSE

Maximum Output Frequency:

0.599 kHz

With Safety Function Safe Brake Management (Sbc/Sbt):

FALSE

Discrete Input Type:

STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)

Maximum Output Voltage:

600 V

Product Specific Application:

complex machines

With Safety Function Safe Torque Off (Sto):

TRUE

Motor Slip Compensation:

automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)

Standards:

IEC 61800-5-1

Discrete Input Number:

7

Range Of Product:

Altivar Machine ATV320

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Analogue Input Number:

3

Communication Port Protocol:

Modbus serial || CANopen

Brake Chopper Integrated:

TRUE

Apparent Power:

14.7 kVA 600 V heavy duty)

Protection Type:

input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive

With Safety Function Safe Stop 1 (Ss1):

TRUE

Braking To Standstill:

by DC injection

Relay Output Type:

configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C

Option Card:

communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Nominal Switching Frequency:

4 kHz

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

China Rohs Regulation:

X

Prospective Line Isc:

22 kA

Analogue Output Type:

software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Relative Symmetric Network Frequency Tolerance:

0.05

Overvoltage Category:

III

Upgradeability:

Upgraded components available

Depth:

198.0 mm

Maximum Switching Current:

relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Ip Degree Of Protection:

IP20

Volume Of Cooling Air:

156.0 m3/h

Product Certifications:

CE || ATEX || NOM || GOST || EAC || RCM || KC

Variant:

standard version

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Pollution Degree:

2

Ambient Air Transport Temperature:

-25-70 °C

Speed Accuracy:

+/- 10 % of nominal slip 0.2 Tn to Tn

Synchronous Motor Control Profile:

vector control without sensor

With Safety Function Safe Operating Stop (Sos):

FALSE

Regulation Loop:

adjustable PID regulator

Discrete Output Number:

3

Mercury Free:

Yes

Ambient Air Temperature For Storage:

-25-70 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Width:

180 mm

With Safety Function Safe Position (Sp):

FALSE

Net Weight:

6.5 kg

Method Of Access:

slave CANopen

With Safety Function Safely Limited Position (Slp):

FALSE

Minimum Switching Current:

relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Ambient Air Temperature For Operation:

-10-50 °C without derating || 50-60 °C with derating factor

Nominal Output Current:

17.0 A

Sustainable Offer Status:

Green Premium product

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Mounting Mode:

wall mount

Discrete Output Type:

open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
