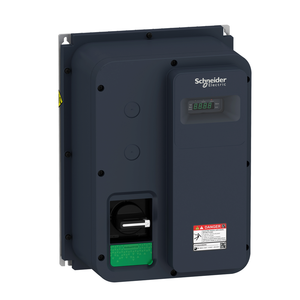

Schneider Electric ATV320U02M2W Atv320 0,18Kw 200V 1Ph Without Vario

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV320U02M2W Atv320 0,18Kw 200V 1Ph Without Vario

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV320U02M2W

UPC:

3606489548391

MPN:

Condition:

New

Discrete Output Number:

3

Ambient Air Temperature For Operation:

-10-40 °C without derating || 40-60 °C with derating factor

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

With Safety Function Safe Brake Management (Sbc/Sbt):

FALSE

Apparent Power:

0.7 kVA 240 V heavy duty)

With Safety Function Safe Position (Sp):

FALSE

Product Or Component Type:

variable speed drive

Maximum Switching Current:

relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Circularity Profile:

ENVEOLI1908002EN

Network Frequency:

50-60 Hz

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3

Relative Symmetric Network Frequency Tolerance:

0.05

Range Of Product:

Altivar Machine ATV320

With Safety Function Safe Programmable Logic:

FALSE

Analogue Input Number:

3

Asynchronous Motor Control Profile:

voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points

Discrete Input Type:

STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)

Synchronous Motor Control Profile:

vector control without sensor

With Safety Function Safely Limited Position (Slp):

FALSE

With Safety Function Safely Limited Speed (Sls):

TRUE

Protection Type:

input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive

Ambient Air Temperature For Storage:

-25-70 °C

Depth:

182.0 mm

Analogue Output Type:

software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits

Product Specific Application:

complex machines

Analogue Output Number:

1

Regulation Loop:

adjustable PID regulator

Rohs Exemption Information:

Yes

Product Certifications:

CE || ATEX || NOM || GOST || EAC || RCM || KC

Net Weight:

5.0 kg

Ambient Air Transport Temperature:

-25-70 °C

Communication Port Protocol:

Modbus serial || CANopen

Brake Chopper Integrated:

TRUE

China Rohs Regulation:

X

Line Current:

3.4 A 200 V heavy duty) || 2.8 A 240 V heavy duty)

Base Load Current At High Overload:

8.0 A

Option Card:

communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device

Analogue Input Type:

AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits

Standards:

IEC 61800-5-1

Prospective Line Isc:

1 kA

[Us] Rated Supply Voltage:

200...240 V - 15...10 %

With Safety Function Safe Direction (Sdi):

FALSE

Power Dissipation In W:

self-cooled 17.0 W 200 V 4 kHz

Maximum Output Voltage:

240 V

Operating Position:

vertical +/- 10 degree

Marking:

CE || ATEX || UL || CSA || EAC || RCM

With Safety Function Safe Operating Stop (Sos):

FALSE

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

4 Quadrant Operation Possible:

TRUE

Discrete Input Logic:

positive logic (source) || negative logic (sink)

Transient Overtorque:

170-200 % of nominal motor torque

With Safety Function Safe Stop 1 (Ss1):

TRUE

Nominal Switching Frequency:

4 kHz

Discrete Output Type:

open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA

Acceleration And Deceleration Ramps:

linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection

Sustainable Offer Status:

Green Premium product

Overvoltage Category:

III

Maximum Output Frequency:

0.599 kHz

Mercury Free:

Yes

With Sft Fct Safe Stop 2 (Ss2):

FALSE

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Format Of The Drive:

enclosed

Ip Degree Of Protection:

IP66

Mounting Mode:

wall mount

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Environmental Disclosure:

ENVPEP1908002EN

With Safety Function Safe Torque Off (Sto):

TRUE

Nominal Output Current:

1.5 A

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Motor Power Kw:

0.18 kW heavy duty

Minimum Switching Current:

relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Speed Accuracy:

+/- 10 % of nominal slip 0.2 Tn to Tn

Emc Filter:

Class C2 EMC filter integrated

Relay Output Type:

configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C

Motor Slip Compensation:

automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)

Pollution Degree:

3

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Upgradeability:

Upgraded components available

Method Of Access:

slave CANopen

Height:

340 mm

Braking To Standstill:

by DC injection

Width:

250 mm

Variant:

standard version

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Discrete Input Number:

7
