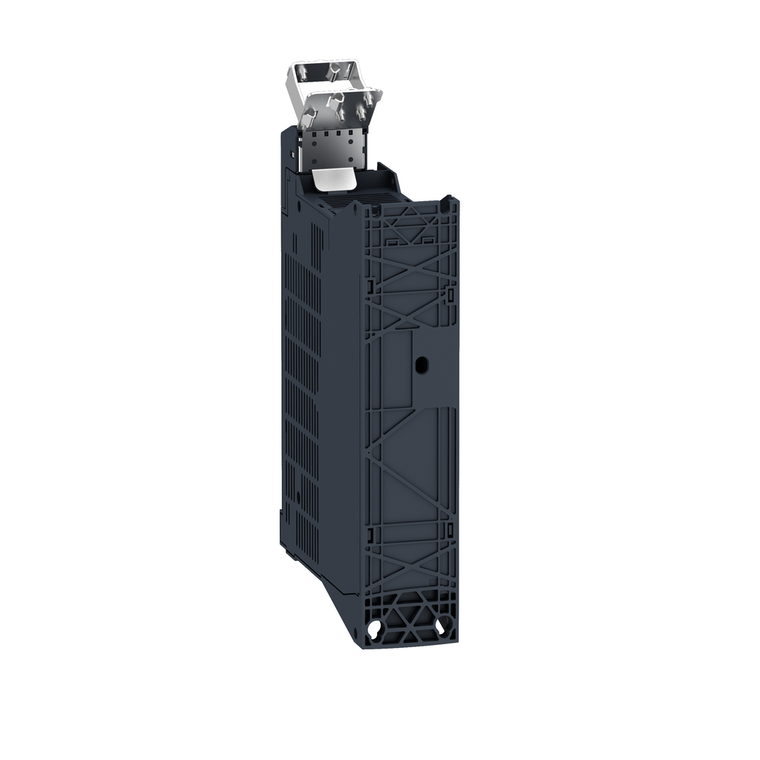

Schneider Electric ATV320U15M2B Atv320 1,5Kw 200V 1Ph Book Control Varia

Schneider Electric ATV320U15M2B Atv320 1,5Kw 200V 1Ph Book Control Varia

Schneider Electric
SKU:
ATV320U15M2B
|
UPC:
3606480966361
$639.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Altivar 320 variable speed drive can feed single-phase synchronous and asynchronous motors. Its book form factor allows for a simple and compact installation in your automation cabinets. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
Additional Information
Minimum Switching Current:
relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
With Safety Function Safe Programmable Logic:
FALSE
With Safety Function Safe Position (Sp):
FALSE
Communication Port Protocol:
Modbus serial || CANopen
Synchronous Motor Control Profile:
vector control without sensor
4 Quadrant Operation Possible:
TRUE
Prospective Line Isc:
1 kA
Protection Type:
input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
Analogue Output Number:
1
Format Of The Drive:
book
Volume Of Cooling Air:
11.3 m3/h
Mercury Free:
Yes
Ip Degree Of Protection:
IP20
Acceleration And Deceleration Ramps:
linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
With Safety Function Safely Limited Position (Slp):
FALSE
With Safety Function Safe Torque Off (Sto):
TRUE
Line Current:
17.6 A 200 V heavy duty) || 14.8 A 240 V heavy duty)
Relative Symmetric Network Frequency Tolerance:
0.05
Network Frequency:
50-60 Hz
Motor Power Kw:
1.5 kW heavy duty
Discrete Input Number:
7
Regulation Loop:
adjustable PID regulator
Ambient Air Transport Temperature:
-25-70 °C
Apparent Power:
3.6 kVA 240 V heavy duty)
Standards:
IEC 61800-5-1
Asynchronous Motor Control Profile:
voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
With Safety Function Safe Direction (Sdi):
FALSE
Power Dissipation In W:
fan 77.0 W 200 V 4 kHz
Base Load Current At High Overload:
3.7 A
Analogue Input Type:
AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Emc Filter:
Class C2 EMC filter integrated
Switching Frequency:
2...16 kHz adjustable || 4...16 kHz with derating factor
Sustainable Offer Status:
Green Premium product
[Us] Rated Supply Voltage:
200...240 V - 15...10 %
Range Of Product:
Altivar Machine ATV320
With Safety Function Safe Stop 1 (Ss1):
TRUE
Product Certifications:
CE || ATEX || NOM || GOST || EAC || RCM || KC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Brake Chopper Integrated:
TRUE
Overvoltage Category:
III
Permitted Relative Humidity (During Operation):
class 3K5 according to EN 60721-3
Nominal Output Current:
8.0 A
Variant:
standard version
Marking:
CE || ATEX || UL || CSA || EAC || RCM
With Safety Function Safe Operating Stop (Sos):
FALSE
With Safety Function Safely Limited Speed (Sls):
TRUE
Net Weight:
2.9 kg
Discrete Output Type:
open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
Discrete Output Number:
3
Environmental Disclosure:
ENVPEP1711005EN
Width:
60 mm
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Circularity Profile:
ENVEOLI1711005EN
Method Of Access:
slave CANopen
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Analogue Output Type:
software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
Upgradeability:
Upgraded components available
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Option Card:
communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
With Safety Function Safe Brake Management (Sbc/Sbt):
FALSE
Height:
325.0 mm
Pollution Degree:
2
Depth:
245.0 mm
Analogue Input Number:
3
Discrete Input Type:
STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Mounting Mode:
cabinet mount
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Ambient Air Temperature For Storage:
-25-70 °C
Product Or Component Type:
variable speed drive
Discrete Input Logic:
positive logic (source) || negative logic (sink)
Product Specific Application:
complex machines
Relay Output Type:
configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
Transient Overtorque:
170-200 % of nominal motor torque
Operating Position:
vertical +/- 10 degree
With Safety Function Safe Speed Monitor (Ssm):
FALSE
Ambient Air Temperature For Operation:
-10-50 °C without derating || 50-60 °C with derating factor
Braking To Standstill:
by DC injection
Rohs Exemption Information:
Yes
Maximum Output Voltage:
240 V
Nominal Switching Frequency:
4 kHz
Motor Slip Compensation:
automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
China Rohs Regulation:
X
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Maximum Output Frequency:
0.599 kHz
Maximum Switching Current:
relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C
