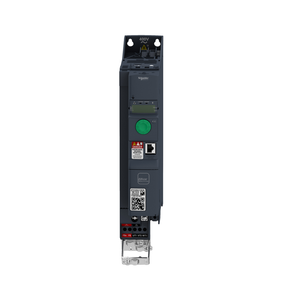

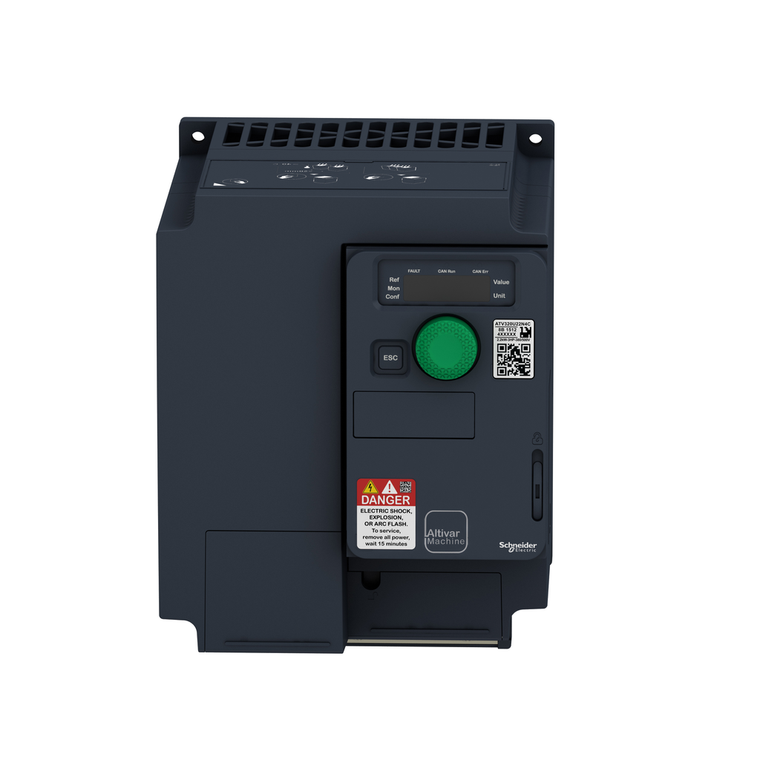

Schneider Electric ATV320U40N4C Atv320 Compact 4Kw - 3Ph - 380/500V

Schneider Electric ATV320U40N4C Atv320 Compact 4Kw - 3Ph - 380/500V

Schneider Electric
SKU:
ATV320U40N4C
|
UPC:
3606480966781
$1,032.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Altivar 320 variable speed drive can feed 3-phase synchronous and asynchronous motors. Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 4kW / 5hp and a rated voltage from 380V to 500V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions). It is also CE, UL, CSA, NOM, EAC and RCM certified. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.
Additional Information
Ambient Air Transport Temperature:
-25-70 °C
With Safety Function Safe Direction (Sdi):
FALSE
4 Quadrant Operation Possible:
TRUE
Circularity Profile:
ENVEOLI1512005EN
Discrete Input Logic:
positive logic (source) || negative logic (sink)
Mounting Mode:
wall mount
Maximum Output Voltage:
500 V
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Prospective Line Isc:
5 kA
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Synchronous Motor Control Profile:
vector control without sensor
Ambient Air Temperature For Operation:
-10-50 °C without derating || 50-60 °C with derating factor
Depth:
158.0 mm
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Product Specific Application:
complex machines
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Brake Chopper Integrated:
TRUE
Format Of The Drive:
compact
Range Of Product:
Altivar Machine ATV320
Ip Degree Of Protection:
IP20
Height:
184.0 mm
Motor Power Kw:
4.0 kW heavy duty
With Safety Function Safely Limited Position (Slp):
FALSE
Speed Accuracy:
+/- 10 % of nominal slip 0.2 Tn to Tn
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Power Dissipation In W:
fan 111 W 380 V 4 kHz
Maximum Switching Current:
relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1A, R1B, R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1A, R1B, R1C, R2A, R2C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1A, R1B, R1C, R2A, R2C
Volume Of Cooling Air:
37.7 m3/h
Variant:
standard version
Braking To Standstill:
by DC injection
Motor Slip Compensation:
automatic whatever the load || adjustable 0...300 % || not available in voltage/frequency ratio (2 or 5 points)
Maximum Output Frequency:
0.599 kHz
China Rohs Regulation:
X
Pollution Degree:
2
With Safety Function Safe Brake Management (Sbc/Sbt):
FALSE
Ambient Air Temperature For Storage:
-25-70 °C
With Safety Function Safely Limited Speed (Sls):
TRUE
Overvoltage Category:
III
Operating Position:
vertical +/- 10 degree
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S2 according to IEC 60721-3-3
Upgradeability:
Upgraded components available
Nominal Output Current:
9.5 A
Protection Type:
input phase breaks drive || overcurrent between output phases and earth drive || overheating protection drive || short-circuit between motor phases drive || thermal protection drive
Minimum Switching Current:
relay output R1A, R1B, R1C, R2A, R2C 5 mA 24 V DC
Switching Frequency:
2...16 kHz adjustable || 4...16 kHz with derating factor
Acceleration And Deceleration Ramps:
linear || U || S || CUS || ramp switching || acceleration/deceleration ramp adaptation || acceleration/deceleration automatic stop with DC injection
With Safety Function Safe Programmable Logic:
FALSE
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Analogue Output Number:
1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Discrete Output Number:
3
Relay Output Type:
configurable relay logic R1A 1 NO 100000 cycles || configurable relay logic R1B 1 NC 100000 cycles || configurable relay logic R1C || configurable relay logic R2A 1 NO 100000 cycles || configurable relay logic R2C
Width:
140 mm
With Safety Function Safe Speed Monitor (Ssm):
FALSE
Net Weight:
2.2 kg
Line Current:
13.7 A 380 V heavy duty) || 10.6 A 500 V heavy duty)
Discrete Input Number:
7
Product Certifications:
CE || ATEX || NOM || GOST || EAC || RCM || KC
Nominal Switching Frequency:
4 kHz
Emc Filter:
Class C2 EMC filter integrated
With Safety Function Safe Stop 1 (Ss1):
TRUE
Discrete Input Type:
STO safe torque off, 24 V DC1.5 kOhm || DI1...DI6 logic inputs, 24 V DC 30 V) || DI5 programmable as pulse input 0-30 kHz, 24 V DC 30 V)
Relative Symmetric Network Frequency Tolerance:
0.05
Analogue Input Type:
AI1 voltage 0...10 V DC 30 kOhm 10 bits || AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits || AI3 current 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration) 250 Ohm 10 bits
Analogue Output Type:
software-configurable current AQ1 0...20 mA 800 Ohm 10 bits || software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
With Safety Function Safe Operating Stop (Sos):
FALSE
Method Of Access:
slave CANopen
Communication Port Protocol:
Modbus serial || CANopen
Product Or Component Type:
variable speed drive
With Safety Function Safe Position (Sp):
FALSE
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
[Us] Rated Supply Voltage:
380...500 V - 15...10 %
Marking:
CE || ATEX || UL || CSA || EAC || RCM
Network Frequency:
50-60 Hz
Sustainable Offer Status:
Green Premium product
Asynchronous Motor Control Profile:
voltage/frequency ratio, 5 points || flux vector control without sensor, standard || voltage/frequency ratio - Energy Saving, quadratic U/f || flux vector control without sensor - Energy Saving || voltage/frequency ratio, 2 points
Standards:
IEC 61800-5-1
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Environmental Disclosure:
ENVPEP1512005EN
Permitted Relative Humidity (During Operation):
class 3K5 according to EN 60721-3
Analogue Input Number:
3
With Safety Function Safe Torque Off (Sto):
TRUE
Transient Overtorque:
170-200 % of nominal motor torque
Apparent Power:
9.2 kVA 500 V heavy duty)
Regulation Loop:
adjustable PID regulator
Base Load Current At High Overload:
9.5 A
Discrete Output Type:
open collector DQ+ 0-1 kHz 30 V DC 100 mA || open collector DQ- 0-1 kHz 30 V DC 100 mA
Option Card:
communication module, CANopen || communication module, EtherCAT || communication module, Profibus DP V1 || communication module, PROFINET || communication module, Ethernet Powerlink || communication module, EtherNet/IP || communication module, Device
