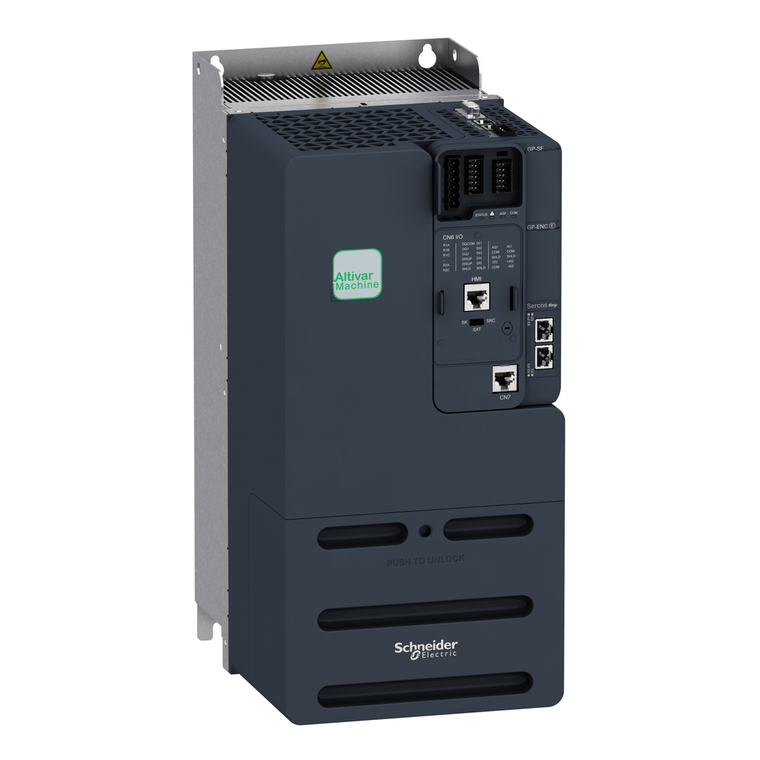

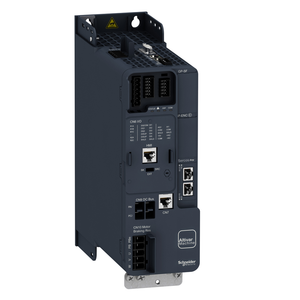

Schneider Electric ATV340D11N4S Atv340 11Kw 15Hp 400V With Sercos

Schneider Electric ATV340D11N4S Atv340 11Kw 15Hp 400V With Sercos

Schneider Electric
SKU:
ATV340D11N4S
|
UPC:
3606489497880
$4,306.76
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Variable speed drive, Altivar Machine ATV340, 11 kW Heavy Duty, 400 V, 3 phases, Sercos
Additional Information
Continuous Output Current:
32 A 4 kHz normal duty || 24 A 4 kHz heavy duty
Mercury Free:
Yes
Prospective Line Isc:
22 kA
Mounting Mode:
cabinet mount
With Safety Function Safe Speed Monitor (Ssm):
FALSE
Communication Port Protocol:
Sercos || Modbus serial
Product Certifications:
UL || CSA || TÜV || EAC || CTick
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...9 Hz
Sustainable Offer Status:
Green Premium product
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
Output Voltage:
<= power supply voltage
Relay Output Type:
relay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Noise Level:
55.6 dB
Line Current:
34.7 A 380 V without line choke heavy duty) || 27.7 A 480 V without line choke heavy duty) || 28.8 A 380 V with external line choke normal duty) || 23 A 480 V with external line choke normal duty) || 21.9 A 380 V with external line choke heavy duty)
Marking:
CE
Operating Position:
vertical +/- 10 degree
Electrical Connection:
control screw terminal 0.2...2.5 mm² AWG 24...AWG 12 || line side screw terminal 4...25 mm² AWG 10...AWG 3 || DC bus screw terminal 4...25 mm² AWG 10...AWG 3 || motor screw terminal 2.5...25 mm² AWG 12...AWG 3
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Ambient Air Temperature For Storage:
-25-70 °C
Transmission Frame:
RTU
Connector Type:
3 RJ45
Height:
385.0 mm
Analogue Input Number:
2
4 Quadrant Operation Possible:
TRUE
Minimum Switching Current:
relay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC
Ip Degree Of Protection:
IP20
Transmission Rate:
4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
Regulation Loop:
adjustable PID regulator
Discrete Input Logic:
16 preset speeds
Data Format:
8 bits, configurable odd, even or no parity
With Safety Function Safely Limited Speed (Sls):
TRUE
With Safety Function Safe Programmable Logic:
FALSE
Depth:
249.0 mm
Product Specific Application:
machine
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Nominal Output Current:
24.0 A
Isolation:
between power and control terminals
Physical Interface:
2-wire RS 485
With Safety Function Safe Position (Sp):
FALSE
Range Of Product:
Altivar Machine ATV340
Variant:
standard version
Discrete Output Type:
programmable output DQ1, DQ2 30 V DC 100 mA
Type Of Polarization:
no impedance
Synchronous Motor Control Profile:
permanent magnet motor || reluctance motor
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Method Of Access:
slave Modbus RTU
Maximum Output Voltage:
480 V
Pollution Degree:
2
Motor Power Kw:
15 kW normal duty || 11 kW heavy duty
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Maximum Output Frequency:
0.599 kHz
Phase:
3 phase
Discrete Output Number:
2
Power Dissipation In W:
natural convection 13 W 380 V 4 kHz heavy duty) || forced convection 241 W 380 V 4 kHz heavy duty) || natural convection 16 W 380 V 4 kHz normal duty) || forced convection 311 W 380 V 4 kHz normal duty)
Maximum Switching Current:
relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R
Analogue Output Type:
software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Braking To Standstill:
by DC injection
Line Current:
28.8 A 380 V normal duty) || 23.0 A 480 V normal duty) || 34.7 A 380 V heavy duty) || 27.7 A 480 V heavy duty)
Maximum Acceleration Under Shock Impact (During Operation):
70 m/s² at 22 ms
Motor Slip Compensation:
not available in permanent magnet motor law || adjustable || can be suppressed || automatic whatever the load
Analogue Input Type:
AI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31
Ambient Air Transport Temperature:
-40-70 °C
Overvoltage Category:
class III
Pvc Free:
Yes
Pollution Degree:
2 EN/IEC 61800-5-1
Brake Chopper Integrated:
TRUE
Maximum Acceleration Under Vibrational Stress (During Operation):
5 m/s² at 9...200 Hz
Switching Frequency:
2...16 kHz adjustable || 4...16 kHz with derating factor
Volume Of Cooling Air:
128.0 m3/h
Base Load Current At High Overload:
24.0 A
Emc Filter:
class C3 EMC filter integrated
Analogue Output Number:
2
Electrical Connection:
screw terminal 0.2...2.5 mm² control || screw terminal 4...25 mm² line side || screw terminal 4...25 mm² DC bus || screw terminal 2.5...25 mm² motor
Width:
180.0 mm
Product Or Component Type:
variable speed drive
Ambient Air Temperature For Operation:
-15-50 °C without derating vertical position) || 50-60 °C with derating factor vertical position)
Supply Frequency:
50...60 Hz +/- 5 %
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Maximum Horse Power Rating:
20 hp normal duty || 15 hp heavy duty
With Safety Function Safely Limited Position (Slp):
FALSE
Permitted Relative Humidity (During Operation):
class 3K5 according to EN 60721-3
Net Weight:
9.5 kg
With Safety Function Safe Operating Stop (Sos):
FALSE
Circularity Profile:
ENVEOLI1609006EN
Base Load Current At Low Overload:
32.0 A
Rohs Exemption Information:
Yes
Asynchronous Motor Control Profile:
optimized torque mode || variable torque standard || constant torque standard
Discrete Input Type:
PTI safe torque off 0-30 kHz, 24 V DC 30 V) || DI1...DI5 discrete input, 24 V DC 30 V)3.5 kOhm
China Rohs Regulation:
X
Relay Output Number:
2
With Safety Function Safe Stop 1 (Ss1):
TRUE
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01...9999 s || S, U or customized
Nominal Switching Frequency:
4 kHz
Type Of Cooling:
forced convection
Number Of Addresses:
1-247
Protection Type:
thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent
With Safety Function Safe Torque Off (Sto):
TRUE
Operating Altitude:
<= 9842.52 ft (3000 m) with current derating above 1000m
Environmental Disclosure:
ENVPEP1609006EN
With Safety Function Safe Direction (Sdi):
FALSE
Apparent Power:
22.7 kVA 480 V normal duty) || 23 kVA 480 V heavy duty)
Assembly Style:
with heat sink
With Safety Function Safe Brake Management (Sbc/Sbt):
TRUE
Discrete Input Number:
5
Maximum Transient Current:
35.2 A 60 s normal duty) || 36 A 60 s heavy duty) || 43.2 A 2 s normal duty) || 43 A 2 s heavy duty)
Standards:
EN/IEC 61800-3 || EN/IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C
Catalog:
View
Datasheet:
View
