Schneider Electric ATV340D30N4E Atv340 30Kw 40Hp 400V With Ethernet Vari

(No reviews yet) Write a Review

Write a Review

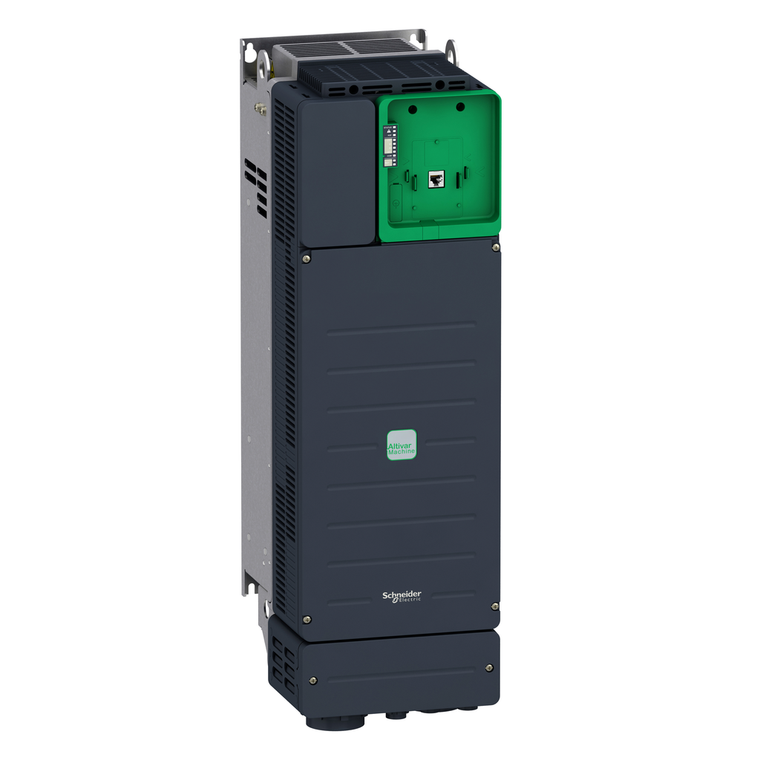

Schneider Electric ATV340D30N4E Atv340 30Kw 40Hp 400V With Ethernet Vari

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV340D30N4E

UPC:

3606480967092

MPN:

Condition:

New

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

With Safety Function Safe Operating Stop (Sos):

FALSE

Marking:

CE

Sustainable Offer Status:

Green Premium product

Discrete Input Logic:

16 preset speeds

Height:

660.0 mm

Nominal Output Current:

61.5 A

With Safety Function Safe Stop 1 (Ss1):

TRUE

Discrete Input Number:

8

Range Of Product:

Altivar Machine ATV340

Nominal Switching Frequency:

4 kHz

Operating Position:

vertical +/- 10 degree

Base Load Current At Low Overload:

74.5 A

Pollution Degree:

2 IEC 61800-5-1

Type Of Polarization:

no impedance

Analogue Input Number:

3

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Power Dissipation In W:

natural convection 77 W 380 V 4 kHz heavy duty) || forced convection 640 W 380 V 4 kHz heavy duty) || natural convection 90 W 380 V 4 kHz normal duty) || forced convection 796 W 380 V 4 kHz normal duty)

Maximum Thdi:

<48 % full load IEC 61000-3-12 || <48 % 80 % load IEC 61000-3-12

Rohs Exemption Information:

Yes

Mounting Mode:

wall mount

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Pollution Degree:

2

Electrical Connection:

screw terminal 35...50 mm² line side || screw terminal 25...50 mm² DC bus || screw terminal 35...50 mm² motor || screw terminal 0.75...1.5 mm² control

Width:

213.0 mm

Product Or Component Type:

variable speed drive

Ambient Air Temperature For Storage:

-40-70 °C

Electrical Connection:

line side screw terminal 35...50 mm² AWG 3...AWG 1 || DC bus screw terminal 25...50 mm² AWG 4...AWG 1 || motor screw terminal 35...50 mm² AWG 3...AWG 1 || control screw terminal 0.75...1.5 mm² AWG 18...AWG 16

Motor Slip Compensation:

automatic whatever the load || not available in permanent magnet motor law || adjustable || can be suppressed

With Safety Function Safe Programmable Logic:

FALSE

Maximum Switching Current:

relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Operating Altitude:

<= 4800 m with current derating above 1000m

Isolation:

between power and control terminals

Type Of Cooling:

forced convection

Product Certifications:

UL || CSA || TÜV || EAC || CTick

Option Card:

communication module, PROFINET || communication module, DeviceNet || communication module, CANopen || communication module, EtherCAT

With Sft Fct Safe Stop 2 (Ss2):

FALSE

With Safety Function Safely Limited Position (Slp):

FALSE

Discrete Input Type:

PTI safe torque off 0-30 kHz, 24 V DC 30 V) || DI1...DI5 programmable as pulse input, 24 V DC 30 V)3.5 kOhm || programmable

Braking To Standstill:

by DC injection

With Safety Function Safe Position (Sp):

FALSE

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Minimum Switching Current:

relay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC

Asynchronous Motor Control Profile:

variable torque standard || optimized torque mode || constant torque standard

Mercury Free:

Yes

Ambient Air Transport Temperature:

-40-70 °C

Net Weight:

27.9 kg

Base Load Current At High Overload:

61.5 A

Maximum Output Frequency:

0.599 kHz

Maximum Output Voltage:

480 V

Environmental Disclosure:

ENVPEP1411001EN

Prospective Line Isc:

50 kA

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Variant:

standard version

Line Current:

66.2 A 380 V normal duty) || 57.3 A 480 V normal duty) || 54.8 A 380 V heavy duty) || 48.3 A 480 V heavy duty)

Discrete Output Number:

1

Noise Level:

63.5 dB

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

With Safety Function Safely Limited Speed (Sls):

TRUE

Communication Port Protocol:

EtherNet/IP || Modbus TCP || Modbus serial

Apparent Power:

47.6 kVA 480 V normal duty) || 40.2 kVA 480 V heavy duty)

Number Of Addresses:

1-247

Overvoltage Category:

class III

Physical Interface:

2-wire RS 485

Analogue Output Number:

2

Upgradeability:

Upgraded components available

Regulation Loop:

adjustable PID regulator

Brake Chopper Integrated:

TRUE

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Protection Type:

thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Synchronous Motor Control Profile:

reluctance motor || permanent magnet motor

Motor Power Kw:

37 kW normal duty || 30 kW heavy duty

Maximum Horse Power Rating:

50 hp normal duty || 40 hp heavy duty

Emc Filter:

class C3 EMC filter integrated

Degree Of Protection:

UL type 1

Maximum Transient Current:

89.4 A 60 s normal duty) || 89.4 A 2 s normal duty) || 92.3 A 60 s heavy duty) || 92.3 A 2 s heavy duty)

Phase:

3 phase

Transmission Frame:

RTU

With Safety Function Safe Torque Off (Sto):

TRUE

Depth:

262.0 mm

Relay Output Number:

3

4 Quadrant Operation Possible:

TRUE

Assembly Style:

with heat sink

China Rohs Regulation:

X

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Ambient Air Temperature For Operation:

-15-50 °C without derating vertical position) || 50-60 °C with derating factor vertical position)

Line Current:

66.2 A 380 V with internal line choke normal duty) || 57.3 A 480 V with internal line choke normal duty) || 66.2 A 380 V with internal line choke heavy duty) || 57.3 A 480 V with internal line choke heavy duty) || 54.8 A || 48.3 A

Method Of Access:

slave Modbus RTU || slave Modbus TCP

Volume Of Cooling Air:

240.0 m3/h

Circularity Profile:

ENVEOLI1411001EN

Connector Type:

3 RJ45

Relay Output Type:

relay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles

With Safety Function Safe Direction (Sdi):

FALSE

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

Output Voltage:

<= power supply voltage

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s || S, U or customized

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Standards:

IEC 61800-3 || IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C || IEC 61000-3-12

Analogue Input Type:

AI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31

Supply Frequency:

50...60 Hz +/- 5 %

Ip Degree Of Protection:

IP20

Transmission Rate:

4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s

Continuous Output Current:

74.5 A 4 kHz normal duty || 61.5 A 4 kHz heavy duty

Product Specific Application:

machine

Data Format:

8 bits, configurable odd, even or no parity

Discrete Output Type:

programmable output DQ1, DQ2 30 V DC 100 mA
