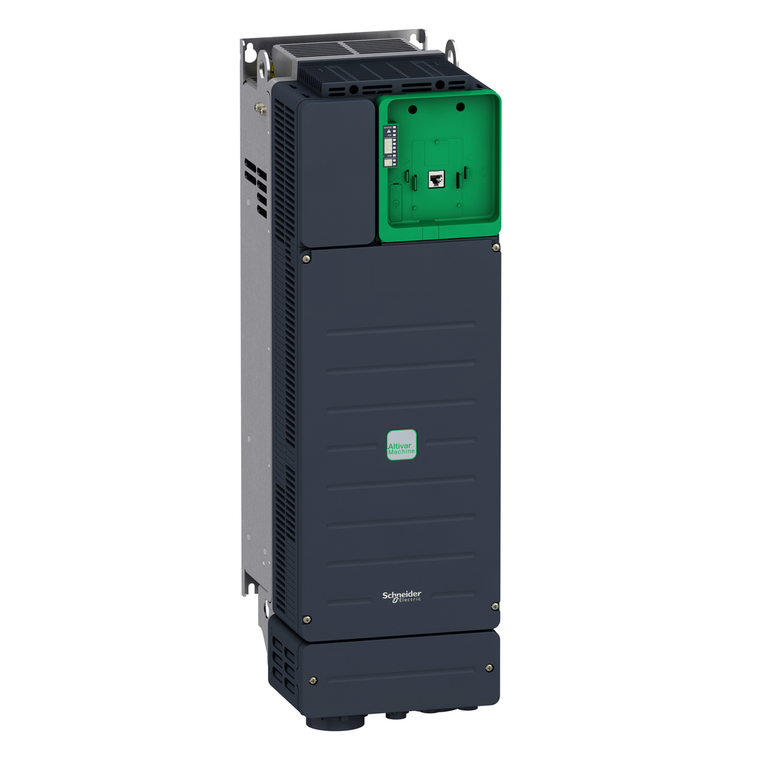

Schneider Electric ATV340D37N4E Atv340 37Kw 50Hp 400V With Ethernet Vari

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATV340D37N4E Atv340 37Kw 50Hp 400V With Ethernet Vari

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV340D37N4E

UPC:

3.60648E+12

MPN:

Condition:

New

Motor Power Kw:

45 kW normal duty || 37 kW heavy duty

Product Or Component Type:

variable speed drive

Option Card:

communication module, PROFINET || communication module, DeviceNet || communication module, CANopen || communication module, EtherCAT

Asynchronous Motor Control Profile:

optimized torque mode || variable torque standard || constant torque standard

Ambient Air Temperature For Storage:

-40-70 °C

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Maximum Switching Current:

relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R

Line Current:

79.8 A 380 V with internal line choke normal duty) || 69.1 A 480 V with internal line choke normal duty) || 67.1 A 380 V with internal line choke heavy duty) || 59 A 480 V with internal line choke heavy duty) || 67.1 A || 59.0 A

With Safety Function Safe Torque Off (Sto):

TRUE

Braking To Standstill:

by DC injection

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Transmission Frame:

RTU

Method Of Access:

slave Modbus RTU || slave Modbus TCP

Type Of Polarization:

no impedance

Discrete Output Type:

programmable output DQ1, DQ2 30 V DC 100 mA

Analogue Output Number:

2

With Safety Function Safe Operating Stop (Sos):

FALSE

Transmission Rate:

4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s

Discrete Input Number:

8

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

Brake Chopper Integrated:

TRUE

Net Weight:

28.4 kg

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

With Safety Function Safe Programmable Logic:

FALSE

Discrete Output Number:

1

Apparent Power:

57.4 kVA 480 V normal duty) || 49.1 kVA 480 V heavy duty)

Product Certifications:

UL || CSA || TÜV || EAC || CTick

Analogue Input Type:

AI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31

Width:

213.0 mm

Electrical Connection:

screw terminal 0.75...1.5 mm² control || screw terminal 35...50 mm² line side || screw terminal 35...50 mm² DC bus || screw terminal 50 mm² motor

Communication Port Protocol:

Modbus TCP || Modbus serial || EtherNet/IP

Range Of Product:

Altivar Machine ATV340

Base Load Current At Low Overload:

88.0 A

Relay Output Type:

relay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles

Line Current:

79.8 A 380 V normal duty) || 69.1 A 480 V normal duty) || 67.1 A 380 V heavy duty) || 59.0 A 480 V heavy duty)

Assembly Style:

with heat sink

With Safety Function Safe Position (Sp):

FALSE

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Supply Frequency:

50...60 Hz +/- 5 %

With Safety Function Safely Limited Speed (Sls):

TRUE

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s || S, U or customized

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

With Safety Function Safely Limited Position (Slp):

FALSE

Synchronous Motor Control Profile:

reluctance motor || permanent magnet motor

Sustainable Offer Status:

Green Premium product

Emc Filter:

class C3 EMC filter integrated

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Depth:

262.0 mm

Maximum Output Voltage:

480 V

Prospective Line Isc:

50 kA

Circularity Profile:

ENVEOLI1411001EN

Maximum Thdi:

<48 % full load IEC 61000-3-12 || <48 % 80 % load IEC 61000-3-12

Minimum Switching Current:

relay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC

Height:

660.0 mm

Pollution Degree:

2 IEC 61800-5-1

Motor Slip Compensation:

adjustable || can be suppressed || automatic whatever the load || not available in permanent magnet motor law

Noise Level:

63.5 dB

Connector Type:

3 RJ45

Analogue Input Number:

3

Ip Degree Of Protection:

IP20

Variant:

standard version

Maximum Horse Power Rating:

60 hp normal duty || 50 hp heavy duty

Ambient Air Temperature For Operation:

-15-50 °C without derating vertical position) || 50-60 °C with derating factor vertical position)

Ambient Air Transport Temperature:

-40-70 °C

Nominal Output Current:

74.5 A

Degree Of Protection:

UL type 1

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Standards:

IEC 61800-3 || IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C || IEC 61000-3-12

Marking:

CE

Electrical Connection:

control screw terminal 0.75...1.5 mm² AWG 18...AWG 16 || line side screw terminal 35...50 mm² AWG 2...AWG 1 || DC bus screw terminal 35...50 mm² AWG 3...AWG 1 || motor screw terminal 50 mm² AWG 1

Operating Altitude:

<= 4800 m with current derating above 1000m

Base Load Current At High Overload:

74.5 A

Environmental Disclosure:

ENVPEP1411001EN

Upgradeability:

Upgraded components available

Mounting Mode:

wall mount

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Nominal Switching Frequency:

4 kHz

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Protection Type:

thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent

Volume Of Cooling Air:

240.0 m3/h

Phase:

3 phase

Operating Position:

vertical +/- 10 degree

Overvoltage Category:

class III

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Relay Output Number:

3

Physical Interface:

2-wire RS 485

Output Voltage:

<= power supply voltage

Regulation Loop:

adjustable PID regulator

Power Dissipation In W:

natural convection 90 W 380 V 4 kHz heavy duty) || forced convection 796 W 380 V 4 kHz heavy duty) || natural convection 105 W 380 V 4 kHz normal duty) || forced convection 943 W 380 V 4 kHz normal duty)

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

With Safety Function Safe Direction (Sdi):

FALSE

Rohs Exemption Information:

Yes

Product Specific Application:

machine

Type Of Cooling:

forced convection

Maximum Transient Current:

105.6 A 60 s normal duty) || 105.6 A 2 s normal duty) || 111.8 A 60 s heavy duty) || 111.8 A 2 s heavy duty)

China Rohs Regulation:

X

Discrete Input Type:

PTI safe torque off 0-30 kHz, 24 V DC 30 V) || DI1...DI5 programmable as pulse input, 24 V DC 30 V)3.5 kOhm || programmable

With Safety Function Safe Stop 1 (Ss1):

TRUE

Isolation:

between power and control terminals

Pollution Degree:

2

Continuous Output Current:

88 A 4 kHz normal duty || 74.5 A 4 kHz heavy duty

Maximum Output Frequency:

0.599 kHz

Discrete Input Logic:

16 preset speeds

4 Quadrant Operation Possible:

TRUE

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Data Format:

8 bits, configurable odd, even or no parity

Number Of Addresses:

1-247
