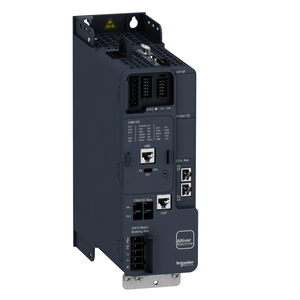

Schneider Electric ATV340D75N4E Atv340 75Kw 100Hp 400V With Ethernet Var

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV340D75N4E

UPC:

3.60648E+12

MPN:

Condition:

New

Electrical Connection:

screw terminal 0.75...1.5 mm² control || screw terminal 120 mm² line side || screw terminal 95...120 mm² DC bus || screw terminal 120 mm² motor

Mounting Mode:

wall mount

Maximum Horse Power Rating:

125 hp normal duty || 100 hp heavy duty

Apparent Power:

112.9 kVA 480 V normal duty) || 98.2 kVA 480 V heavy duty)

Isolation:

between power and control terminals

Product Certifications:

UL || CSA || TÜV || EAC || CTick

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Operating Altitude:

<= 4800 m with current derating above 1000m

Ip Degree Of Protection:

IP20

4 Quadrant Operation Possible:

TRUE

Rohs Exemption Information:

Yes

Asynchronous Motor Control Profile:

variable torque standard || constant torque standard || optimized torque mode

Connector Type:

3 RJ45

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

Degree Of Protection:

UL type 1

With Safety Function Safe Torque Off (Sto):

TRUE

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Mercury Free:

Yes

Minimum Switching Current:

relay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC

Product Or Component Type:

variable speed drive

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Height:

908.0 mm

Supply Frequency:

50...60 Hz +/- 5 %

Operating Position:

vertical +/- 10 degree

Braking To Standstill:

by DC injection

Physical Interface:

2-wire RS 485

Maximum Switching Current:

relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R

Maximum Transient Current:

207.6 A 60 s normal duty) || 217.5 A 60 s heavy duty) || 207.6 A 2 s normal duty) || 217.5 A 2 s heavy duty)

Ambient Air Transport Temperature:

-40-70 °C

Line Current:

156.2 A 380 V with internal line choke normal duty) || 135.8 A 480 V with internal line choke normal duty) || 134.3 A 380 V with internal line choke heavy duty) || 118.1 A 480 V with internal line choke heavy duty) || 134.3 A || 118.1 A

Option Card:

communication module, PROFINET || communication module, DeviceNet || communication module, CANopen || communication module, EtherCAT

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Assembly Style:

with heat sink

Continuous Output Current:

173 A 4 kHz normal duty || 145 A 4 kHz heavy duty

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

Switching Frequency:

1...8 kHz adjustable || 2.5...8 kHz with derating factor

Base Load Current At High Overload:

145.0 A

Relay Output Type:

relay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles

Circularity Profile:

ENVEOLI1411014EN

Relay Output Number:

3

Base Load Current At Low Overload:

173.0 A

Volume Of Cooling Air:

295.0 m3/h

Maximum Output Frequency:

0.599 kHz

Upgradeability:

Upgraded components available

Type Of Cooling:

forced convection

Pollution Degree:

2 IEC 61800-5-1

Discrete Output Type:

programmable output DQ1, DQ2 30 V DC 100 mA

Discrete Input Logic:

16 preset speeds

Depth:

309.0 mm

Overvoltage Category:

class III

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Number Of Addresses:

1-247

Regulation Loop:

adjustable PID regulator

Emc Filter:

class C3 EMC filter integrated

Data Format:

8 bits, configurable odd, even or no parity

Maximum Output Voltage:

480 V

Width:

271.0 mm

Analogue Output Number:

2

Environmental Disclosure:

ENVPEP1411014EN

Acceleration And Deceleration Ramps:

S, U or customized || linear adjustable separately from 0.01...9999 s

Motor Power Kw:

90 kW normal duty || 75 kW heavy duty

Prospective Line Isc:

50 kA

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

Synchronous Motor Control Profile:

reluctance motor || permanent magnet motor

Ambient Air Temperature For Operation:

-15-40 °C without derating vertical position) || 40-50 °C with derating factor vertical position)

Line Current:

156.2 A 380 V normal duty) || 135.8 A 480 V normal duty) || 134.3 A 380 V heavy duty) || 118.1 A 480 V heavy duty)

With Safety Function Safely Limited Position (Slp):

FALSE

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Product Specific Application:

machine

Noise Level:

69.9 dB

With Safety Function Safe Position (Sp):

FALSE

Communication Port Protocol:

Modbus serial || EtherNet/IP || Modbus TCP

Net Weight:

58.4 kg

With Safety Function Safely Limited Speed (Sls):

TRUE

Transmission Rate:

4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s

Standards:

IEC 61800-3 || IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C || IEC 61000-3-12

Motor Slip Compensation:

adjustable || not available in permanent magnet motor law || automatic whatever the load || can be suppressed

Variant:

standard version

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Output Voltage:

<= power supply voltage

Discrete Output Number:

1

Maximum Thdi:

<48 % full load IEC 61000-3-12 || <48 % 80 % load IEC 61000-3-12

Brake Chopper Integrated:

TRUE

With Safety Function Safe Programmable Logic:

FALSE

Analogue Input Number:

3

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Sustainable Offer Status:

Green Premium product

Phase:

3 phase

Method Of Access:

slave Modbus RTU || slave Modbus TCP

China Rohs Regulation:

X

Transmission Frame:

RTU

Nominal Switching Frequency:

2.5 kHz

Ambient Air Temperature For Storage:

-40-70 °C

Analogue Input Type:

AI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31

Range Of Product:

Altivar Machine ATV340

With Safety Function Safe Speed Monitor (Ssm):

FALSE

With Safety Function Safe Stop 1 (Ss1):

TRUE

With Safety Function Safe Direction (Sdi):

FALSE

Power Dissipation In W:

natural convection 158 W 380 V 4 kHz heavy duty) || forced convection 1359 W 380 V 4 kHz heavy duty) || natural convection 180 W 380 V 4 kHz normal duty) || forced convection 1585 W 380 V 4 kHz normal duty)

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Marking:

CE

Discrete Input Number:

8

Type Of Polarization:

no impedance

Pollution Degree:

2

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Protection Type:

thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent

Discrete Input Type:

PTI safe torque off 0-30 kHz, 24 V DC 30 V) || DI1...DI5 programmable as pulse input, 24 V DC 30 V)3.5 kOhm || programmable

With Safety Function Safe Operating Stop (Sos):

FALSE

Electrical Connection:

control screw terminal 0.75...1.5 mm² AWG 18...AWG 16 || line side screw terminal 120 mm² AWG 4/0...250 kcmil || DC bus screw terminal 95...120 mm² AWG 3/0...250 kcmil || motor screw terminal 120 mm² 250 kcmil

Nominal Output Current:

145.0 A
