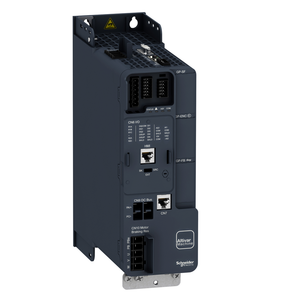

Schneider Electric ATV340U15N4E Atv340 1,5Kw 2Hp 400V With Ethernet Vari

Schneider Electric ATV340U15N4E Atv340 1,5Kw 2Hp 400V With Ethernet Vari

Schneider Electric
SKU:
ATV340U15N4E
|
UPC:
3606480966996
$1,340.33
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Altivar 340 variable speed drive can feed 3-phase synchronous and asynchronous motors in open and closed loop control. Altivar Machine ATV340 drives are sized heavy duty as standard. It works at a rated power up to 1.5kW / 2hp and a rated voltage from 380V to 480V AC. ATV340 has been designed to meet the needs of applications for harsh environments, such as vibration, shock and non-conductive dust and where high temperature resistance up to 60 °C is needed. This product integrates Modbus serial line communication protocols as standard. This drive features multi-protocol Ethernet embedded, it consists of Ethernet IP and Modbus TCP communication interfaces. it weighs 1.7kg and its dimensions are, 85mm wide, 270mm high, 232.5mm deep. ATV340 incorporates functions and features suitable for the most common applications, including packaging, material handling, material working, hoisting. It conforms to international standards IEC/EN 61800-5-1 and IEC/EN 61800-3 (immunity and conducted and radiated EMC emissions), IEC 60721-3, IEC 61508, IEC 13849-1. It is also CE, UL, CSA, and TÜV certified. Accessories and options (encoder interface modules, I/O expansion modules, communication modules, braking resistors, line chokes, additional EMC filters) are available with Altivar Machine ATV340 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV340 drives directly in SoMachine and SoMove software by means of the same software brick (DTM).
Additional Information
Method Of Access:
slave Modbus RTU || slave Modbus TCP
With Safety Function Safe Direction (Sdi):
FALSE
Nominal Switching Frequency:
4 kHz
Nominal Output Current:
4.0 A
Mounting Mode:
cabinet mount
Noise Level:
55.4 dB
Width:
85.0 mm
Assembly Style:
with heat sink
Discrete Input Type:
PTI programmable as pulse input 0-30 kHz, 24 V DC 30 V) || DI1...DI5 safe torque off, 24 V DC 30 V)3.5 kOhm || programmable
Volume Of Cooling Air:
18.0 m3/h
Variant:
standard version
4 Quadrant Operation Possible:
TRUE
Protection Type:
thermal protection motor || safe torque off motor || motor phase loss motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent drive || output overcurrent between motor phase and earth drive || output overcurrent
Number Of Addresses:
1-247
Depth:
232.5 mm
Circularity Profile:
ENVEOLI1609005EN
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Discrete Output Type:
programmable output DQ1, DQ2 30 V DC 100 mA
Rohs Exemption Information:
Yes
Permitted Relative Humidity (During Operation):
class 3K5 according to EN 60721-3
Height:
270.0 mm
Line Current:
6 A 380 V without line choke heavy duty) || 4.9 A 480 V without line choke heavy duty) || 5.1 A 380 V with external line choke normal duty) || 4.1 A 480 V with external line choke normal duty) || 3.5 A 380 V with external line choke heavy duty) || 2.
Asynchronous Motor Control Profile:
constant torque standard || optimized torque mode || variable torque standard
Discrete Input Logic:
16 preset speeds
Physical Interface:
2-wire RS 485
Ambient Air Transport Temperature:
-40-70 °C
Range Of Product:
Altivar Machine ATV340
Discrete Output Number:
2
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
With Safety Function Safe Brake Management (Sbc/Sbt):
TRUE
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01...9999 s || S, U or customized
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Analogue Input Number:
2
Net Weight:
1.7 kg
Type Of Polarization:
no impedance
With Safety Function Safe Speed Monitor (Ssm):
FALSE
With Safety Function Safe Stop 1 (Ss1):
TRUE
Product Certifications:
UL || CSA || TÜV || EAC || CTick
With Safety Function Safe Programmable Logic:
FALSE
Synchronous Motor Control Profile:
permanent magnet motor || reluctance motor
Analogue Input Type:
AI1 software-configurable current 0...20 mA 250 Ohm 12 bits || AI1 software-configurable temperature probe or water level sensor || AI1 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI2 software-configurable voltage - 10...10 V DC 31
Apparent Power:
3.8 kVA 480 V normal duty) || 4.1 kVA 480 V heavy duty)
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...9 Hz
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Product Or Component Type:
variable speed drive
Power Dissipation In W:
natural convection 46 W 380 V 4 kHz heavy duty) || forced convection 46 W 380 V 4 kHz heavy duty) || natural convection 59 W 380 V 4 kHz normal duty) || forced convection 59 W 380 V 4 kHz normal duty)
Relay Output Type:
relay outputs R1A || relay outputs R1C 100000 cycles || relay outputs R2A || relay outputs R2C 100000 cycles
With Safety Function Safe Operating Stop (Sos):
FALSE
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Phase:
3 phase
With Safety Function Safely Limited Speed (Sls):
TRUE
Product Specific Application:
machine
Electrical Connection:
screw terminal 1.5...4 mm² line side || screw terminal 4...6 mm² DC bus || screw terminal 1.5...4 mm² motor || screw terminal 0.2...2.5 mm² control
Environmental Disclosure:
ENVPEP1609005EN
With Safety Function Safe Torque Off (Sto):
TRUE
Standards:
IEC 61800-3 || IEC 61800-5-1 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 618000-5-1 || UL 508C
Maximum Output Frequency:
0.599 kHz
Discrete Input Number:
5
With Safety Function Safe Position (Sp):
FALSE
Maximum Horse Power Rating:
3 hp normal duty || 2 hp heavy duty
Minimum Switching Current:
relay output R1B 5 mA 24 V DC || relay output R2C 5 mA 24 V DC
Connector Type:
3 RJ45
Isolation:
between power and control terminals
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Communication Port Protocol:
Modbus serial || EtherNet/IP || Modbus TCP
Analogue Output Type:
software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1 0...20 mA 500 Ohm 10 bits
Transmission Rate:
4.8 kbit/s || 9.6 kbit/s || 19.2 kbit/s || 38.4 kbit/s
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
Ambient Air Temperature For Storage:
-40-70 °C
Pollution Degree:
2 IEC 61800-5-1
With Safety Function Safely Limited Position (Slp):
FALSE
Motor Slip Compensation:
adjustable || not available in permanent magnet motor law || can be suppressed || automatic whatever the load
Upgradeability:
Upgraded components available
Relay Output Number:
2
Transmission Frame:
RTU
Data Format:
8 bits, configurable odd, even or no parity
Continuous Output Current:
5.6 A 4 kHz normal duty || 4 A 4 kHz heavy duty
Mercury Free:
Yes
Prospective Line Isc:
5 kA
Switching Frequency:
2...16 kHz adjustable || 8...16 kHz with derating factor
Maximum Acceleration Under Vibrational Stress (During Operation):
5 m/s² at 9...200 Hz
Maximum Acceleration Under Shock Impact (During Operation):
70 m/s² at 22 ms
Operating Altitude:
<= 9842.52 ft (3000 m) with current derating above 1000m
Braking To Standstill:
by DC injection
Maximum Transient Current:
6.2 A 60 s normal duty) || 6 A 60 s heavy duty) || 7.6 A 2 s normal duty) || 7.2 A 2 s heavy duty)
Operating Position:
vertical +/- 10 degree
Regulation Loop:
adjustable PID regulator
Ambient Air Temperature For Operation:
-15-50 °C without derating vertical position) || 50-60 °C with derating factor vertical position)
Supply Frequency:
50...60 Hz +/- 5 %
Overvoltage Category:
class III
Maximum Output Voltage:
480 V
Sustainable Offer Status:
Green Premium product
Base Load Current At Low Overload:
5.6 A
Maximum Switching Current:
relay output R1C resistive, cos phi = 1 3 A 250 V AC || relay output R1C resistive, cos phi = 1 3 A 30 V DC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1C inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R
Brake Chopper Integrated:
TRUE
Base Load Current At High Overload:
4.0 A
Analogue Output Number:
2
Electrical Connection:
line side screw terminal 1.5...4 mm² AWG 14...AWG 12 || DC bus screw terminal 4...6 mm² AWG 12...AWG 10 || motor screw terminal 1.5...4 mm² AWG 14...AWG 12 || control screw terminal 0.2...2.5 mm² AWG 24...AWG 12
Type Of Cooling:
forced convection
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ip Degree Of Protection:
IP20
Line Current:
5.1 A 380 V normal duty) || 4.1 A 480 V normal duty) || 6.0 A 380 V heavy duty) || 4.9 A 480 V heavy duty)
Pollution Degree:
2
Motor Power Kw:
2.2 kW normal duty || 1.5 kW heavy duty
Emc Filter:
class C3 EMC filter integrated
Output Voltage:
<= power supply voltage
China Rohs Regulation:
X
Marking:
CE
