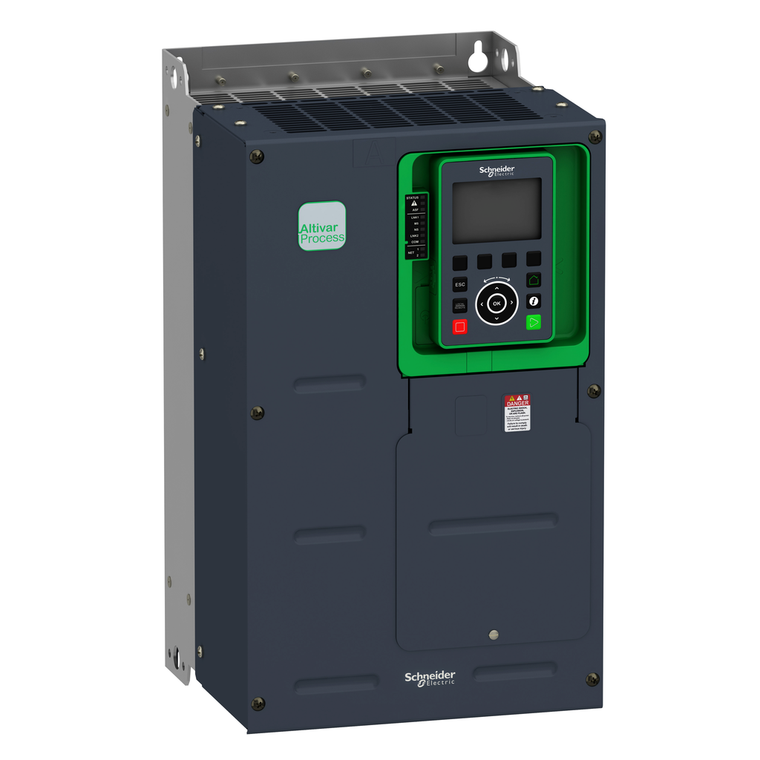

Schneider Electric ATV630D11Y6 Atv630Ip00 11Kw 500V-690V Variable Spee
SKU:
ATV630D11Y6
UPC:
3.60648E+12
MPN:
Condition:
New
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Data Format:
8 bits, configurable odd, even or no parity
Analogue Output Number:
2
Prospective Line Isc:
70 kA
Discrete Output Type:
relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immu
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Width:
246 mm
Maximum Thdi:
<48 % with external line choke IEC 61000-3-12
Isolation:
between power and control terminals
Safety Function:
STO (safe torque off) SIL 3
Supply Frequency:
50...60 Hz - 5...5 %
Electrical Connection:
control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 4...10 mm² AWG 12...AWG 8 || line side screw terminal 4...10 mm² AWG 12...AWG 8
1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
Range Of Product:
Altivar Process ATV600
Analogue Input Number:
3
Ambient Air Temperature For Storage:
-40-70 °C
Regulation Loop:
adjustable PID regulator
Ip Degree Of Protection:
IP00IEC 61800-5-1 || IP00IEC 60529 || IP20 with kit VW3A9705)IEC 61800-5-1 || IP20 with kit VW3A9705)IEC 60529
Operating Position:
vertical +/- 10 degree
Product Or Component Type:
variable speed drive
Noise Level:
52 dB 86/188/EEC
Power Dissipation In W:
natural convection 98 W 500 V 4 kHz || forced convection 198 W 500 V 4 kHz
Nominal Switching Frequency:
4 kHz
Method Of Access:
slave Modbus TCP
Product Specific Application:
process and utilities
Pollution Degree:
2
Maximum Output Frequency:
500 kHz
Protection Type:
thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c
Minimum Switching Current:
relay output R1, R2, R3 5 mA 24 V DC
Refresh Time:
relay output R1, R2, R3)5 ms +/- 0.5 ms)
Discrete Input Type:
DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation:
X
Maximum Switching Current:
relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2
Environmental Disclosure:
ENVPEP1704001EN
Motor Power Kw:
7.5 kW 500 V normal duty) || 5.5 kW 500 V heavy duty) || 11 kW 690 V normal duty) || 7.5 kW 690 V heavy duty)
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
S, U or customized || linear adjustable separately from 0.01...9999 s
Emc Filter:
integrated 25 m IEC 61800-3 category C3
Speed Drive Output Frequency:
0.1-500 Hz
Type Of Polarization:
no impedance
Switching Frequency:
2...8 kHz adjustable || 4...8 kHz with derating factor
Line Current:
13.6 A 500 V normal duty) || 14.7 A 690 V normal duty) || 10.4 A 500 V heavy duty) || 10.5 A 690 V heavy duty)
Vibration Resistance:
1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
Height:
420 mm
Apparent Power:
17.6 kVA 690 V normal duty) || 12.5 kVA 690 V heavy duty)
Synchronous Motor Control Profile:
permanent magnet motor || synchronous reluctance motor
Noise Level:
58 dB
Pollution Degree:
2 IEC 61800-5-1
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
Relay Output Number:
3
Asynchronous Motor Control Profile:
optimized torque mode || constant torque standard || variable torque standard
Local Signalling:
for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)
Mounting Mode:
wall mount
Insulation Resistance:
> 1 MOhm 500 V DC for 1 minute to earth
Sampling Duration:
2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
Frequency Resolution:
display unit 0.1 Hz || analog input 0.012/50 Hz
Overvoltage Category:
III
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Number Of Addresses:
1-247 Modbus serial
Exchange Mode:
half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Ambient Air Temperature For Operation:
-15-50 °C without derating) || 50-60 °C with derating factor)
Type Of Cooling:
forced convection
Analogue Output Type:
software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
[Us] Rated Supply Voltage:
500...690 V
Phase:
3 phase
Output Voltage:
<= power supply voltage
Product Certifications:
CSA || UL || TÜV
Product Destination:
asynchronous motors || synchronous motors
Maximum Transient Current:
14.9 A 60 s normal duty) || 14.3 A 60 s heavy duty)
external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Option Card:
slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c
Quantity Per Set:
1
Transmission Frame:
RTU
Maximum Horse Power Rating:
10 hp 500 V normal duty || 7.5 hp 500 V heavy duty || 15 hp 690 V normal duty || 10 hp 690 V heavy duty
Marking:
CE
Device Short Name:
ATV630
Linearity Error:
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury Free:
Yes
Connector Type:
RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial
Depth:
242 mm
Net Weight:
22 kg
Motor Slip Compensation:
not available in permanent magnet motor law || automatic whatever the load || adjustable || can be suppressed
Discrete Input Logic:
16 preset speeds
Discrete Input Number:
8
Discrete Output Number:
0
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
[Us] Rated Supply Voltage:
500...690 V - 15...10 %
Continuous Output Current:
13.5 A 4 kHz normal duty || 9.5 A 4 kHz heavy duty
