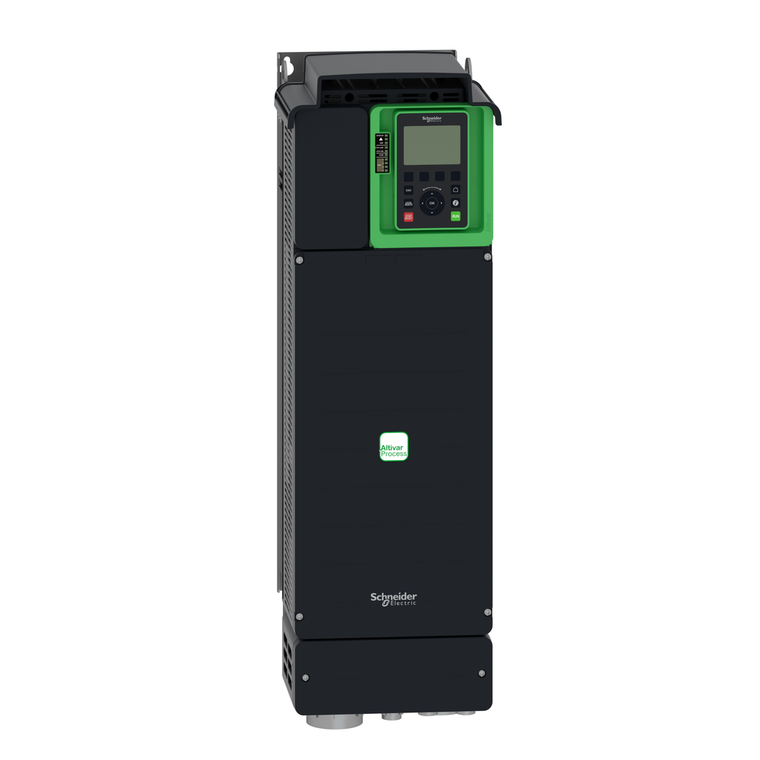

Schneider Electric ATV630D22M3 Variable Speed Drive Ip21 22Kw 200V/240V

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV630D22M3 Variable Speed Drive Ip21 22Kw 200V/240V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV630D22M3

UPC:

3606480701504

MPN:

Condition:

New

Safety Function:

STO (safe torque off) SIL 3

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Permissible Temporary Current Boost:

1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Product Certifications:

DNV-GL || ATEX zone 2/22 || CSA || TÜV || UL || ATEX INERIS

Net Weight:

14.3 kg

Output Voltage:

<= power supply voltage

Transmission Frame:

RTU

Emc Filter:

without EMC filter

Height:

673 mm

Discrete Input Number:

8

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Product Specific Application:

process and utilities

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Line Current:

76 A 200 V normal duty) || 64.3 A 240 V normal duty) || 64.8 A 200 V heavy duty) || 54.5 A 240 V heavy duty)

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Switching Frequency:

2...12 kHz adjustable || 4...12 kHz with derating factor

Regulation Loop:

adjustable PID regulator

Discrete And Process Manufacturing:

building - HVAC compressor centrifugal || food and beverage processing other application || mining mineral and metal fan || mining mineral and metal pump || oil and gas fan || water and waste water other application || building - HVAC screw compresso

Apparent Power:

26.7 kVA 240 V normal duty) || 22.7 kVA 240 V heavy duty)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Standards:

UL 508C || IEC 61800-3 || IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Local Signalling:

for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)

Type Of Polarization:

no impedance

Analogue Output Number:

2

Nominal Switching Frequency:

4 kHz

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Method Of Access:

slave Modbus TCP

Noise Level:

63.5 dB

Type Of Cooling:

forced convection

Supply Frequency:

50...60 Hz - 5...5 %

Operating Position:

vertical +/- 10 degree

Frequency Resolution:

display unit 0.1 Hz || analog input 0.012/50 Hz

Marking:

CE

Analogue Input Number:

3

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Mounting Mode:

wall mount

[Us] Rated Supply Voltage:

200...240 V

Degree Of Protection:

UL type 1 UL 508C

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles

Ip Degree Of Protection:

IP21IEC 61800-5-1 || IP21IEC 60529

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Connector Type:

RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial

Quantity Per Set:

1

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Environmental Disclosure:

ENVPEP1411001EN

Width:

226 mm

Isolation:

between power and control terminals

Input Compatibility:

DI1...DI6 discrete input level 1 PLC IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Motor Power Kw:

22 kW normal duty) || 18.5 kW heavy duty)

Discrete Input Logic:

16 preset speeds

Continuous Output Current:

92.6 A 4 kHz normal duty || 78.4 A 4 kHz heavy duty

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Noise Level:

63.5 dB 86/188/EEC

Device Short Name:

ATV630

Sustainable Offer Status:

Green Premium product

Overvoltage Category:

III

Maximum Transient Current:

101.9 A 60 s normal duty) || 117.6 A 60 s heavy duty)

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Mercury Free:

Yes

Power Dissipation In W:

natural convection 107 W 200 V 4 kHz || forced convection 707 W 200 V 4 kHz

Phase:

3 phase

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

Motor Slip Compensation:

adjustable || automatic whatever the load || not available in permanent magnet motor law || can be suppressed

Pollution Degree:

2

Pollution Degree:

2 IEC 61800-5-1

Enclosure Mounting:

wall mounted

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Data Format:

8 bits, configurable odd, even or no parity

Communication Port Protocol:

Modbus TCP || Ethernet || Modbus serial

China Rohs Regulation:

X

[Us] Rated Supply Voltage:

200...240 V - 15...10 %

Product Destination:

asynchronous motors || synchronous motors

Discrete Output Number:

0

Depth:

271 mm

Physical Interface:

Ethernet || 2-wire RS 485

Electrical Connection:

control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 35...50 mm² AWG 2...AWG 1 || motor screw terminal 50 mm² AWG 1

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output

Circularity Profile:

ENVEOLI1411001EN

Power Range:

15-25 kW 200-240 V 3 phase

Maximum Output Frequency:

500 kHz

Ambient Air Temperature For Storage:

-40-70 °C

Upgradeability:

Upgraded components available

Range Of Product:

Altivar Process ATV600

Maximum Horse Power Rating:

30 hp normal duty || 25 hp heavy duty

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Number Of Addresses:

1-247 Modbus serial

Speed Drive Output Frequency:

0.1-500 Hz

Braking To Standstill:

by DC injection

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Volume Of Cooling Air:

240 m3/h

Product Or Component Type:

variable speed drive

Asynchronous Motor Control Profile:

variable torque standard || constant torque standard || optimized torque mode

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Prospective Line Isc:

50 kA

Relay Output Number:

3

Variant:

standard version

Option Card:

slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c
