relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V
Asynchronous Motor Control Profile:
variable torque standard || optimized torque mode || constant torque standard
Device Short Name:

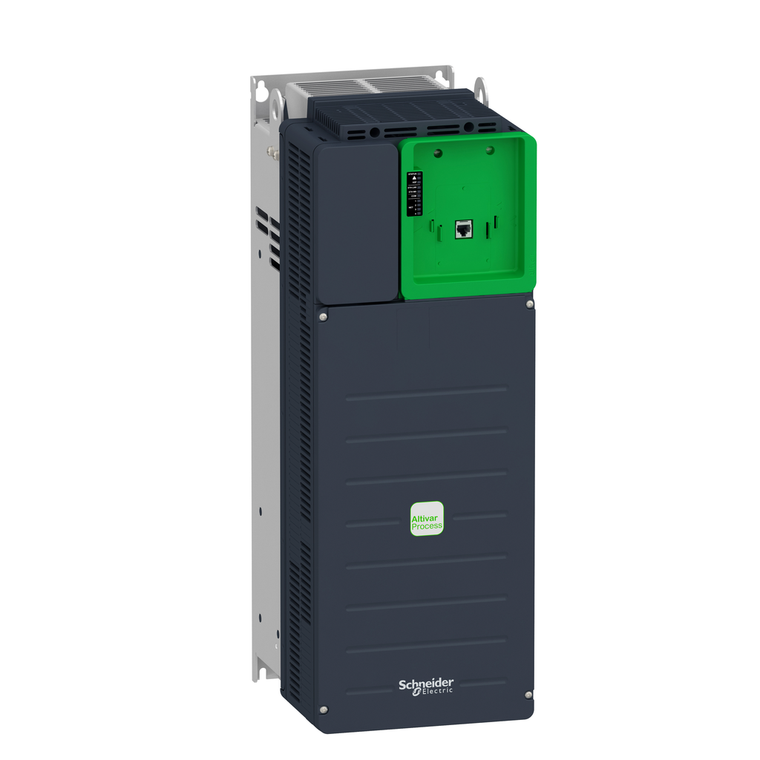

ATV630
Supply:
external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d
Operating Position:
vertical +/- 10 degree
Sampling Duration:
2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01...9999 s
Prospective Line Isc:
50 kA
Ambient Air Temperature For Operation:
-15-50 °C without derating) || 50-60 °C with derating factor)
control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 25...50 mm² AWG 4...AWG 1 || motor screw terminal 25...50 mm² AWG 4...AWG 1
Upgradeability:
Upgraded components available
Analogue Input Type:
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
Type Of Cooling:
forced convection
Discrete Input Number:
8
Type Of Polarization:
no impedance
Pollution Degree:
2
Option Card:
slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c
Communication Port Protocol:
Ethernet || Modbus TCP || Modbus serial
Marking:
CE
Discrete Input Type:
DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
Discrete And Process Manufacturing:
building - HVAC compressor centrifugal || food and beverage processing other application || mining mineral and metal fan || mining mineral and metal pump || oil and gas fan || water and waste water other application || building - HVAC screw compresso
Mounting Mode:
cabinet mount
Maximum Transient Current:
67.7 A 60 s normal duty) || 69.5 A 60 s heavy duty)
Continuous Output Current:
61.5 A 4 kHz normal duty || 46.3 A 4 kHz heavy duty
Overvoltage Category:
III
Depth:
262 mm
Quantity Per Set:
1
Linearity Error:
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output
China Rohs Regulation:
X
Protection Type:
thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Vibration Resistance:
1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
Regulation Loop:
adjustable PID regulator
Relative Humidity:
5-95 % without condensation IEC 60068-2-3
Number Of Addresses:
1-247 Modbus serial
Braking To Standstill:
by DC injection
Enclosure Mounting:
with heat sink
Ambient Air Temperature For Storage:
-40-70 °C
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
Rohs Exemption Information:
Yes
Physical Interface:
Ethernet || 2-wire RS 485
Range Of Product:
Altivar Process ATV600
Net Weight:
25.8 kg
Safety Function:
STO (safe torque off) SIL 3
Mercury Free:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Accuracy:
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Maximum Horse Power Rating:
40 hp normal duty || 30 hp heavy duty
Exchange Mode:
half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Permissible Temporary Current Boost:
1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
Maximum Thdi:
<48 % from 80...100 % of load IEC 61000-3-12
Emc Filter:
integrated 10 m IEC 61800-3 category C2 || integrated 50 m IEC 61800-3 category C3 || with EMC plate option
Product Certifications:
TÃV || ATEX INERIS || UL || CSA || ATEX zone 2/22 || DNV-GL
Ip Degree Of Protection:
IP20IEC 61800-5-1 || IP00 at bottom terminals)IEC 60529
Output Voltage:
<= power supply voltage
Isolation:
between power and control terminals
Local Signalling:
for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)
Volume Of Cooling Air:
240 m3/h
Insulation Resistance:
> 1 MOhm 500 V DC for 1 minute to earth
Motor Power Kw:
30 kW normal duty) || 22 kW heavy duty)
Line Current:
53.3 A 380 V normal duty) || 45.9 A 480 V normal duty) || 40.5 A 380 V heavy duty) || 35.8 A 480 V heavy duty)
Phase:
3 phase
Apparent Power:
38.2 kVA 480 V normal duty) || 29.8 kVA 480 V heavy duty)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Method Of Access:
slave Modbus TCP
Switching Frequency:
2...12 kHz adjustable || 4...12 kHz with derating factor
Analogue Output Type:
software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
Pollution Degree:
2 IEC 61800-5-1
Maximum Output Frequency:
500 kHz
Analogue Input Number:
3
Assembly Style:
with heat sink
Power Range:
30-50 kW 380-440 V 3 phase || 30-50 kW 480-500 V 3 phase
Connector Type:
RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial
