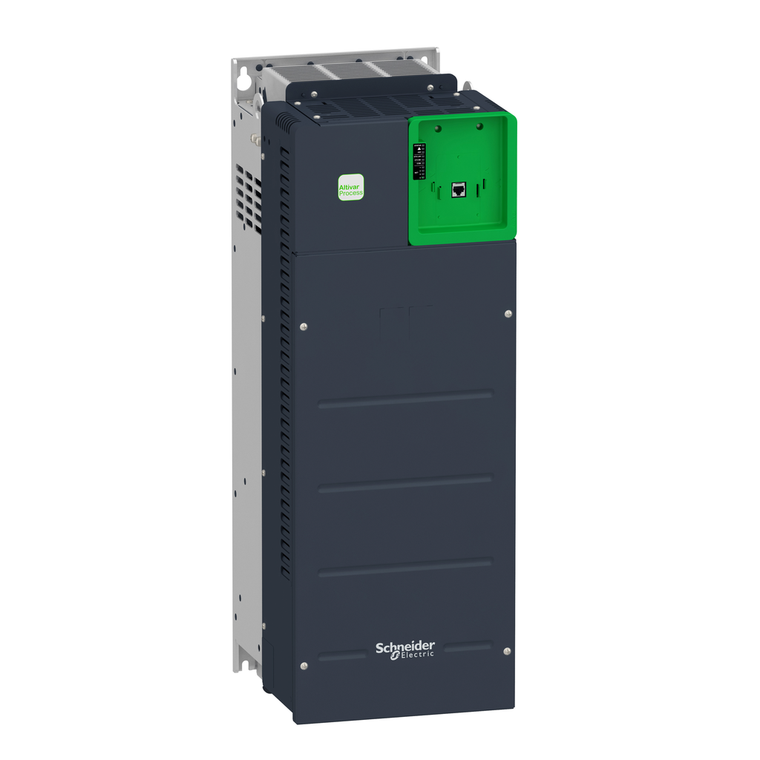

Schneider Electric ATV630D55N4ZU Atv630 T12 Rdy Ip00 75Hp 400V Wo Keypad

SKU:

ATV630D55N4ZU

UPC:

3.61E+12

MPN:

Condition:

New

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Transmission Frame:

RTU

Width:

265 mm

Operating Position:

vertical +/- 10 degree

Emc Filter:

integrated 50 m EN/IEC 61800-3 category C3 || with EMC plate option

Discrete Input Logic:

16 preset speeds

Mercury Free:

Yes

[Us] Rated Supply Voltage:

380...480 V

Motor Power Kw:

55 kW normal duty) || 45 kW heavy duty)

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

China Rohs Regulation:

X

Phase:

3 phase

Marking:

CE

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Continuous Output Current:

106 A 2.5 kHz normal duty || 88 A 2.5 kHz heavy duty

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Destination:

asynchronous motors || synchronous motors

Noise Level:

62.4 dB

Maximum Output Frequency:

500 kHz

Braking To Standstill:

by DC injection

Standards:

UL 508C || EN/IEC 61800-3 || EN/IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Net Weight:

52.6 kg

Apparent Power:

70 kVA 480 V normal duty) || 59.7 kVA 480 V heavy duty)

Pollution Degree:

2

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Mounting Mode:

cabinet mount

Input Compatibility:

DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2

Asynchronous Motor Control Profile:

constant torque standard || variable torque standard || optimized torque mode

Maximum Transient Current:

116.6 A 60 s normal duty) || 132 A 60 s heavy duty)

Permissible Temporary Current Boost:

1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)

Connector Type:

RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output

Local Signalling:

for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Volume Of Cooling Air:

295 m3/h

Switching Frequency:

2.5...8 kHz with derating factor || 2...8 kHz adjustable

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Overvoltage Category:

III

Range Of Product:

Altivar Process ATV600

Line Current:

97.2 A 380 V normal duty) || 84.2 A 480 V normal duty) || 81.4 A 380 V heavy duty) || 71.8 A 480 V heavy duty)

Power Range:

55-100 kW 380-440 V 3 phase || 55-100 kW 480-500 V 3 phase

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Ip Degree Of Protection:

IP20IEC 61800-5-1 || IP00 at bottom terminals)IEC 60529

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Circularity Profile:

ENVEOLI2007013EN

Noise Level:

62.4 dB 86/188/EEC

Isolation:

between power and control terminals

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Option Card:

slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Power Dissipation In W:

natural convection 131 W 380 V 2.5 kHz || forced convection 917 W 380 V 2.5 kHz

Depth:

307 mm

Number Of Addresses:

1-247 Modbus serial

Safety Function:

STO (safe torque off) SIL 3

Prospective Line Isc:

50 kA

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Electrical Connection:

control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 70...120 mm² AWG 1/0...250 kcmil || motor screw terminal 70...120 mm² AWG 1/0...250 kcmil

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

Environmental Disclosure:

ENVPEP2007013EN

Motor Slip Compensation:

not available in permanent magnet motor law || can be suppressed || automatic whatever the load || adjustable

Relay Output Number:

3

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Communication Port Protocol:

Ethernet || Modbus serial || Modbus TCP

Nominal Switching Frequency:

2.5 kHz

Height:

748 mm

Physical Interface:

Ethernet || 2-wire RS 485

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Discrete And Process Manufacturing:

building - HVAC compressor centrifugal || food and beverage processing other application || mining mineral and metal fan || mining mineral and metal pump || oil and gas fan || water and waste water other application || building - HVAC screw compresso

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Method Of Access:

slave Modbus TCP

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Supply Frequency:

50...60 Hz - 5...5 %

Output Voltage:

<= power supply voltage

Device Short Name:

ATV630

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Frequency Resolution:

display unit 0.1 Hz || analog input 0.012/50 Hz

Ambient Air Temperature For Storage:

-40-70 °C

Product Certifications:

CSA || UL || DNV-GL || ATEX INERIS || ATEX zone 2/22 || TÜV

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Maximum Horse Power Rating:

75 hp normal duty || 60 hp heavy duty

Regulation Loop:

adjustable PID regulator

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Discrete Output Number:

0

Quantity Per Set:

1

Speed Drive Output Frequency:

0.1-500 Hz

Assembly Style:

with heat sink

Data Format:

8 bits, configurable odd, even or no parity

Upgradeability:

Upgraded components available

Discrete Input Number:

8

Product Specific Application:

process and utilities

Sustainable Offer Status:

Green Premium product

Variant:

standard version

Pollution Degree:

2 EN/IEC 61800-5-1

Product Or Component Type:

variable speed drive

Analogue Output Number:

2

Type Of Cooling:

forced convection

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles

Analogue Input Number:

3

Type Of Polarization:

no impedance

Enclosure Mounting:

with heat sink

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2
