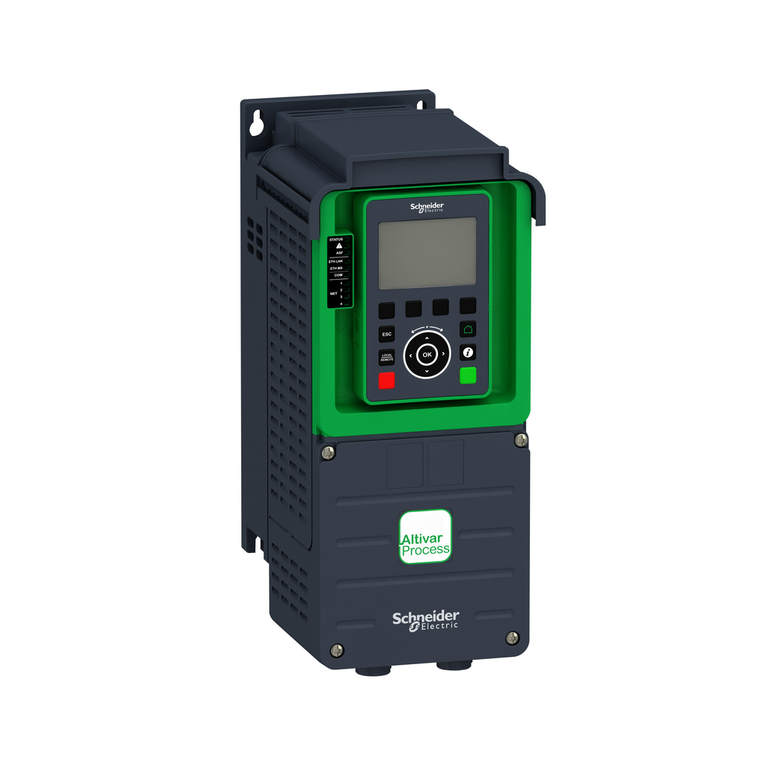

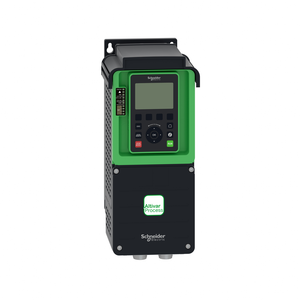

Schneider Electric ATV630U15M3 Variable Speed Drive Ip21 1,5Kw 200V/240

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV630U15M3 Variable Speed Drive Ip21 1,5Kw 200V/240

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV630U15M3

UPC:

3606480761621

MPN:

Condition:

New

Maximum Thdi:

<48 % full load IEC 61000-3-12

Ambient Air Temperature For Storage:

-40-70 °C

Type Of Cooling:

forced convection

Isolation:

between power and control terminals

Electrical Connection:

control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 2.5...6 mm² AWG 14...AWG 10 || line side screw terminal 2.5...6 mm² AWG 14...AWG 10

Maximum Transient Current:

8.8 A 60 s normal duty) || 6.9 A 60 s heavy duty)

Phase:

3 phase

Noise Level:

54.5 dB

Nominal Switching Frequency:

4 kHz

Sustainable Offer Status:

Green Premium product

Product Destination:

asynchronous motors || synchronous motors

Circularity Profile:

ENVEOLI1501005EN

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Safety Function:

STO (safe torque off) SIL 3

Analogue Input Number:

3

Analogue Output Number:

2

Communication Port Protocol:

Modbus serial || Ethernet || Modbus TCP

Prospective Line Isc:

50 kA

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles

Output Voltage:

<= power supply voltage

Data Format:

8 bits, configurable odd, even or no parity

Maximum Horse Power Rating:

2 hp normal duty || 1 hp heavy duty

Switching Frequency:

2...12 kHz adjustable || 4...12 kHz with derating factor

Asynchronous Motor Control Profile:

constant torque standard || variable torque standard || optimized torque mode

Range Of Product:

Altivar Process ATV600

Device Short Name:

ATV630

Marking:

CE

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Enclosure Mounting:

wall mounted

Product Certifications:

ATEX INERIS || CSA || TÜV || ATEX zone 2/22 || DNV-GL || UL

Motor Power Kw:

1.5 kW normal duty) || 0.75 kW heavy duty)

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output

Discrete Input Number:

8

Discrete Output Number:

0

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output

Overvoltage Category:

III

Relay Output Number:

3

Upgradeability:

Upgraded components available

Height:

350 mm

Emc Filter:

without EMC filter

Rohs Exemption Information:

Yes

Volume Of Cooling Air:

38 m3/h

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

Noise Level:

54.5 dB 86/188/EEC

Frequency Resolution:

display unit 0.1 Hz || analog input 0.012/50 Hz

Input Compatibility:

DI1...DI6 discrete input level 1 PLC IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Line Current:

5.9 A 200 V normal duty) || 5 A 240 V normal duty) || 3.3 A 200 V heavy duty) || 3 A 240 V heavy duty)

Braking To Standstill:

by DC injection

[Us] Rated Supply Voltage:

200...240 V - 15...10 %

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Motor Slip Compensation:

automatic whatever the load || can be suppressed || adjustable || not available in permanent magnet motor law

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Depth:

203 mm

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Speed Drive Output Frequency:

0.1-500 Hz

Regulation Loop:

adjustable PID regulator

Transmission Frame:

RTU

Standards:

UL 508C || IEC 61800-3 || IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Number Of Addresses:

1-247 Modbus serial

Physical Interface:

Ethernet || 2-wire RS 485

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Mounting Mode:

wall mount

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Ip Degree Of Protection:

IP21IEC 61800-5-1 || IP21IEC 60529

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Local Signalling:

for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Pollution Degree:

2 IEC 61800-5-1

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Apparent Power:

2.1 kVA 240 V normal duty) || 1.2 kVA 240 V heavy duty)

Supply Frequency:

50...60 Hz - 5...5 %

Mercury Free:

Yes

[Us] Rated Supply Voltage:

200...240 V

Discrete Input Logic:

16 preset speeds

Connector Type:

RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial

Type Of Polarization:

no impedance

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Width:

144 mm

Power Range:

1.1-2 kW 200-240 V 3 phase

Operating Position:

vertical +/- 10 degree

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Environmental Disclosure:

ENVPEP1501005EN

Product Or Component Type:

variable speed drive

China Rohs Regulation:

X

Degree Of Protection:

UL type 1 UL 508C

Variant:

standard version

Discrete And Process Manufacturing:

building - HVAC compressor centrifugal || food and beverage processing other application || mining mineral and metal fan || mining mineral and metal pump || oil and gas fan || water and waste water other application || building - HVAC screw compresso

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Quantity Per Set:

1

Power Dissipation In W:

natural convection 29 W 200 V 4 kHz || forced convection 53 W 200 V 4 kHz

Option Card:

slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c

Product Specific Application:

process and utilities

Method Of Access:

slave Modbus TCP

Continuous Output Current:

8 A 4 kHz normal duty || 4.6 A 4 kHz heavy duty

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Maximum Output Frequency:

500 kHz

Net Weight:

4.3 kg

Pollution Degree:

2
