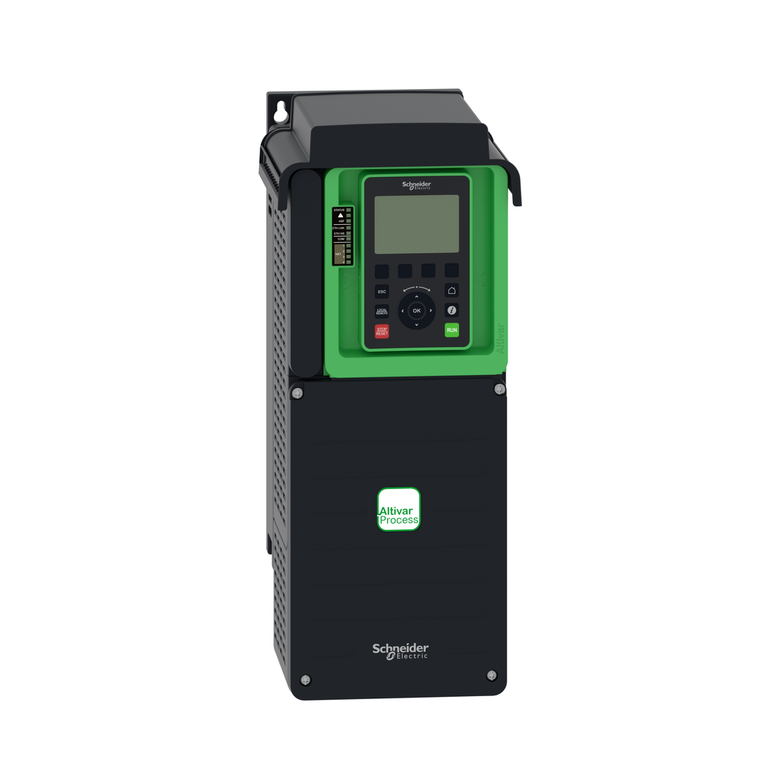

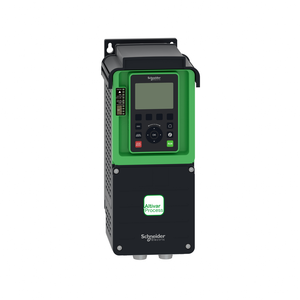

Schneider Electric ATV630U55M3 Variable Speed Drive Ip21 5,5Kw 200V/240

Schneider Electric ATV630U55M3 Variable Speed Drive Ip21 5,5Kw 200V/240

Schneider Electric
SKU:
ATV630U55M3
|
UPC:
3606485410883
Availability:
Contact us to confirm availability and lead times.
$2,611.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 200V to 240V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’operation without additional costs. It is suitable for motors with power rating up to 5.5kW / 7.5hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 4kW / 5hp for applications requiring significant overload (up to 150%). It weighs 7.7kg and its dimensions are, 171mm wide, 409mm high, 233mm deep. This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications. Accessories (fan kit, graphic display terminal) and options (I/O expansion modules, communication modules, EMC input filters) are available with Altivar Process ATV600 drives, depending on the drive rating. It is designed to be mounted in vertical position (+/- 10 °) on a wall. This new concept of drives meets the major needs of process and utilities in terms of equipment efficiency and total cost of ownership by supporting the energy management, asset management and also the overall performance of the process.
Additional Information
Regulation Loop:
adjustable PID regulator
Isolation:
between power and control terminals
Nominal Switching Frequency:
4 kHz
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
Maximum Thdi:
<48 % from 80...100 % of load IEC 61000-3-12
Ambient Air Temperature For Operation:
-15-50 °C without derating) || 50-60 °C with derating factor)
Input Compatibility:
DI1...DI6 discrete input level 1 PLC IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2
Supply Frequency:
50...60 Hz - 5...5 %
Permissible Temporary Current Boost:
1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)
Maximum Output Frequency:
500 kHz
Refresh Time:
relay output R1, R2, R3)5 ms +/- 0.5 ms)
Relay Output Type:
configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles
Motor Slip Compensation:
can be suppressed || not available in permanent magnet motor law || adjustable || automatic whatever the load
Maximum Switching Current:
relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
Discrete Input Type:
DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
Option Card:
slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c
Transmission Rate:
10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Accuracy:
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output
Depth:
233 mm
Marking:
CE
Product Certifications:
UL || ATEX zone 2/22 || CSA || DNV-GL || TÜV || ATEX INERIS
Local Signalling:
for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)
Motor Power Kw:
5.5 kW normal duty) || 4 kW heavy duty)
Switching Frequency:
2...12 kHz adjustable || 4...12 kHz with derating factor
Variant:
standard version
Speed Drive Output Frequency:
0.1-500 Hz
Asynchronous Motor Control Profile:
optimized torque mode || constant torque standard || variable torque standard
Discrete Output Number:
0
Mounting Mode:
wall mount
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Overvoltage Category:
III
Relative Humidity:
5-95 % without condensation IEC 60068-2-3
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01...9999 s
Analogue Input Number:
3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation:
X
Upgradeability:
Upgraded components available
Width:
171 mm
Device Short Name:
ATV630
Discrete Input Logic:
16 preset speeds
Discrete Output Type:
relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V
Physical Interface:
Ethernet || 2-wire RS 485
Pollution Degree:
2 IEC 61800-5-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Connector Type:
RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial
Data Format:
8 bits, configurable odd, even or no parity
[Us] Rated Supply Voltage:
200...240 V - 15...10 %
Range Of Product:
Altivar Process ATV600
Degree Of Protection:
UL type 1 UL 508C
Power Dissipation In W:
natural convection 47 W 200 V 4 kHz || forced convection 179 W 200 V 4 kHz
Environmental Disclosure:
ENVPEP1508010EN
Analogue Output Type:
software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
Prospective Line Isc:
50 kA
Phase:
3 phase
Relay Output Number:
3
Type Of Cooling:
forced convection
Rohs Exemption Information:
Yes
Frequency Resolution:
display unit 0.1 Hz || analog input 0.012/50 Hz
Maximum Transient Current:
27.9 A 60 s normal duty) || 28.1 A 60 s heavy duty)
Communication Port Protocol:
Modbus serial || Modbus TCP || Ethernet
Height:
409 mm
Type Of Polarization:
no impedance
Circularity Profile:
ENVEOLI1508010EN
Ip Degree Of Protection:
IP21IEC 61800-5-1 || IP21IEC 60529
Mercury Free:
Yes
Maximum Horse Power Rating:
7.5 hp normal duty || 5 hp heavy duty
Pollution Degree:
2
Braking To Standstill:
by DC injection
Discrete And Process Manufacturing:
building - HVAC compressor centrifugal || food and beverage processing other application || mining mineral and metal fan || mining mineral and metal pump || oil and gas fan || water and waste water other application || building - HVAC screw compresso
Number Of Addresses:
1-247 Modbus serial
Output Voltage:
<= power supply voltage
[Us] Rated Supply Voltage:
200...240 V
Discrete Input Logic:
positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V
Analogue Output Number:
2
Sampling Duration:
2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output
Discrete Input Number:
8
Safety Function:
STO (safe torque off) SIL 3
Electrical Connection:
control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 10 mm² AWG 8 || line side screw terminal 6 mm² AWG 10
Method Of Access:
slave Modbus TCP
Line Current:
20.2 A 200 V normal duty) || 17.1 A 240 V normal duty) || 15.1 A 200 V heavy duty) || 13 A 240 V heavy duty)
Apparent Power:
7.1 kVA 240 V normal duty) || 5.4 kVA 240 V heavy duty)
Minimum Switching Current:
relay output R1, R2, R3 5 mA 24 V DC
Product Specific Application:
process and utilities
Linearity Error:
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Volume Of Cooling Air:
103 m3/h
Synchronous Motor Control Profile:
permanent magnet motor || synchronous reluctance motor
Product Destination:
asynchronous motors || synchronous motors
Power Range:
4-6 kW 200-240 V 3 phase
Noise Level:
56 dB
Continuous Output Current:
25.4 A 4 kHz normal duty || 18.7 A 4 kHz heavy duty
Operating Position:
vertical +/- 10 degree
Ambient Air Temperature For Storage:
-40-70 °C
Vibration Resistance:
1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
Supply:
external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d
Product Or Component Type:
variable speed drive
Exchange Mode:
half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Protection Type:
thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c
Standards:
UL 508C || IEC 61800-3 || IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1
Analogue Input Type:
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
Transmission Frame:
RTU
Enclosure Mounting:
wall mounted
Insulation Resistance:
> 1 MOhm 500 V DC for 1 minute to earth
Net Weight:
7.7 kg
Emc Filter:
without EMC filter
Noise Level:
56 dB 86/188/EEC
Quantity Per Set:
1
Sustainable Offer Status:
Green Premium product
