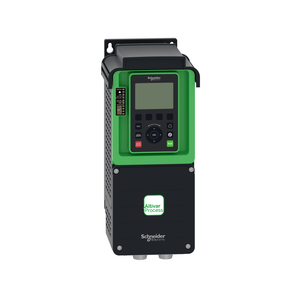

Schneider Electric ATV630U55N4 Variable Speed Drive Ip21 5,5Kw 400V/480

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV630U55N4 Variable Speed Drive Ip21 5,5Kw 400V/480

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV630U55N4

UPC:

3606480758140

MPN:

Condition:

New

Safety Function:

STO (safe torque off) SIL 3

Enclosure Mounting:

wall mounted

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI4) - discrete input || 5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output

Local Signalling:

for local diagnostic 3 LEDs || for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red)

Supply Frequency:

50...60 Hz - 5...5 %

Frequency Resolution:

display unit 0.1 Hz || analog input 0.012/50 Hz

Product Destination:

asynchronous motors || synchronous motors

Height:

350 mm

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Input Compatibility:

DI1...DI6 discrete input level 1 PLC EN/IEC 61131-2 || DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC EN/IEC 61131-2

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Environmental Disclosure:

ENVPEP1501005EN

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Volume Of Cooling Air:

38 m3/h

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Switching Frequency:

2...12 kHz adjustable || 4...12 kHz with derating factor

Width:

144 mm

Type Of Cooling:

forced convection

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Power Dissipation In W:

natural convection 36 W 380 V 4 kHz || forced convection 145 W 380 V 4 kHz

Electrical Connection:

control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 4...6 mm² AWG 12...AWG 10 || line side screw terminal 2.5...6 mm² AWG 14...AWG 10

Product Specific Application:

process and utilities

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Noise Level:

54.5 dB

Physical Interface:

Ethernet || 2-wire RS 485

Net Weight:

4.7 kg

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Device Short Name:

ATV630

Rohs Exemption Information:

Yes

Nominal Switching Frequency:

4 kHz

Maximum Output Frequency:

500 kHz

Number Of Addresses:

1-247 Modbus serial

Emc Filter:

integrated 50 m EN/IEC 61800-3 category C2 || integrated 150 m EN/IEC 61800-3 category C3

Pollution Degree:

2

Isolation:

between power and control terminals

Maximum Transient Current:

14 A 60 s normal duty) || 14 A 60 s heavy duty)

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Regulation Loop:

adjustable PID regulator

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles

Method Of Access:

slave Modbus TCP

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Connector Type:

RJ45 on the remote graphic terminal)Ethernet/Modbus TCP || RJ45 on the remote graphic terminal)Modbus serial

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Maximum Thdi:

<48 % full load IEC 61000-3-12

Prospective Line Isc:

50 kA

China Rohs Regulation:

X

Marking:

CE

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Motor Slip Compensation:

can be suppressed || not available in permanent magnet motor law || automatic whatever the load || adjustable

Line Current:

10.4 A 380 V normal duty) || 9.1 A 480 V normal duty) || 8 A 380 V heavy duty) || 7.2 A 480 V heavy duty)

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Discrete Output Number:

0

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Overvoltage Category:

III

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Standards:

UL 508C || EN/IEC 61800-3 || EN/IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || EN/IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Product Certifications:

DNV-GL || CSA || ATEX zone 2/22 || ATEX INERIS || TÜV || UL

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 250 V AC || relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2

Noise Level:

54.5 dB 86/188/EEC

Range Of Product:

Altivar Process ATV600

Transmission Frame:

RTU

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Discrete Input Logic:

16 preset speeds

Analogue Output Number:

2

Discrete And Process Manufacturing:

building - HVAC compressor centrifugal || food and beverage processing other application || mining mineral and metal fan || mining mineral and metal pump || oil and gas fan || water and waste water other application || building - HVAC screw compresso

Pollution Degree:

2 EN/IEC 61800-5-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Braking To Standstill:

by DC injection

Power Range:

4-6 kW 380-440 V 3 phase || 4-6 kW 480-500 V 3 phase

Communication Port Protocol:

Modbus serial || Modbus TCP || Ethernet

Data Format:

8 bits, configurable odd, even or no parity

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Permissible Temporary Current Boost:

1.1 x In 60 s normal duty) || 1.5 x In 60 s heavy duty)

Ambient Air Temperature For Storage:

-40-70 °C

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AO1, AO2 for a temperature variation 60 °C analog output

Degree Of Protection:

UL type 1 UL 508C

Output Voltage:

<= power supply voltage

Operating Position:

vertical +/- 10 degree

Variant:

standard version

Product Or Component Type:

variable speed drive

Mounting Mode:

wall mount

Type Of Polarization:

no impedance

Speed Drive Output Frequency:

0.1-500 Hz

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Circularity Profile:

ENVEOLI1501005EN

Relay Output Number:

3

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AO1, AO2 +/- 0.2 % analog output

Phase:

3 phase

Depth:

203 mm

Continuous Output Current:

12.7 A 4 kHz normal duty || 9.3 A 4 kHz heavy duty

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Option Card:

slot A communication module, Profibus DP V1 || slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A c

Apparent Power:

7.6 kVA 480 V normal duty) || 6 kVA 480 V heavy duty)

Ip Degree Of Protection:

IP21IEC 61800-5-1 || IP21IEC 60529

Sustainable Offer Status:

Green Premium product

Discrete Input Number:

8

Upgradeability:

Upgraded components available

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Horse Power Rating:

7.5 hp normal duty || 5 hp heavy duty

Asynchronous Motor Control Profile:

constant torque standard || variable torque standard || optimized torque mode

Mercury Free:

Yes

Analogue Input Number:

3

Quantity Per Set:

1

Motor Power Kw:

5.5 kW normal duty) || 4 kW heavy duty)

[Us] Rated Supply Voltage:

380...480 V
