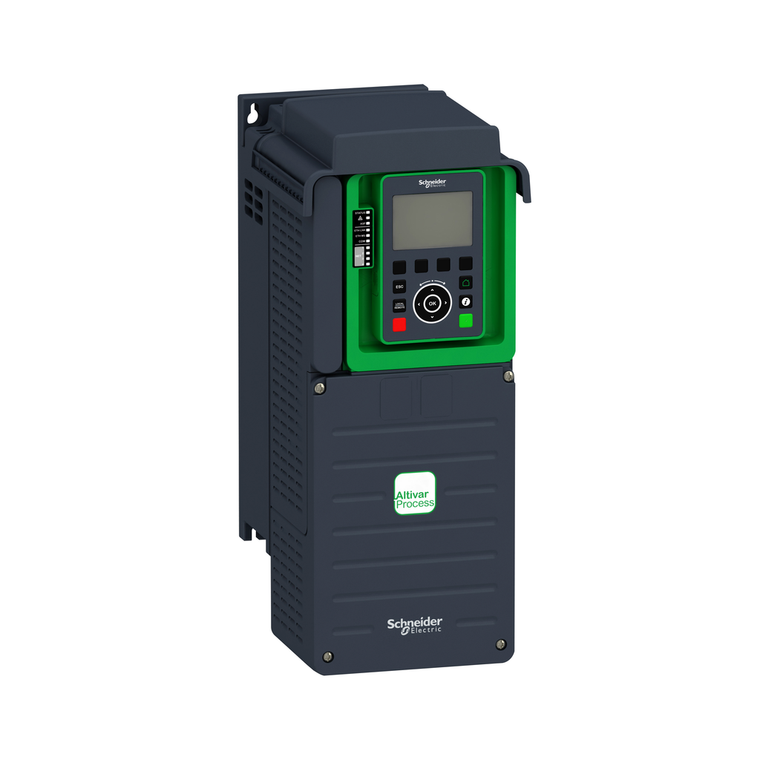

Schneider Electric ATV630U75S6X Atv630 Ip21 10Hp 600V Variateur De Vit.

Schneider Electric ATV630U75S6X Atv630 Ip21 10Hp 600V Variateur De Vit.

Schneider Electric
SKU:
ATV630U75S6X
|
UPC:
3606481324863
$3,191.19
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
variable speed drive, Altivar Process ATV600, ATV630, 10hp, 600V, IP21
Additional Information
Width:
171 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pollution Degree:
2 IEC 61800-5-1
Upgradeability:
Upgraded components available
Output Voltage:
<= power supply voltage
Method Of Access:
slave Modbus TCP
Motor Slip Compensation:
can be suppressed || automatic whatever the load || adjustable
Ambient Air Temperature For Operation:
50-60 °C with derating factor) || -15-50 °C without derating)
Transmission Rate:
10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps
Sustainable Offer Status:
Green Premium product
Isolation:
between power and control terminals
Refresh Time:
relay output R1, R2, R3)5 ms +/- 0.5 ms)
Discrete Input Logic:
positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Emc Filter:
without EMC filter
Frequency Resolution:
analog input 0.012/50 Hz || display unit 0.1 Hz
Supply:
internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection || external suppl
Relay Output Type:
configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles || configurable relay logic R1 fault relay NO/NC 100000 cycles
Safety Function:
STO (safe torque off) SIL 3
Transmission Frame:
RTU
Range Of Product:
Altivar Process ATV600
Volume Of Cooling Air:
103 m3/h
Protection Type:
safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || m
Number Of Addresses:
1-247 Modbus serial
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Net Weight:
5.5 kg
Variant:
standard version
Operating Altitude:
1000...4800 m with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Quantity Per Set:
1
Synchronous Motor Control Profile:
synchronous reluctance motor || permanent magnet motor
Height:
409 mm
Mercury Free:
Yes
Operating Position:
vertical +/- 10 degree
Maximum Thdi:
<48 % with external line choke IEC 61000-3-12
Linearity Error:
AO1, AO2 +/- 0.2 % analog output || AI1, AI2, AI3 +/- 0.15 % of maximum value analog input
Pollution Degree:
2
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01...9999 s
Discrete Input Logic:
16 preset speeds
Prospective Line Isc:
70 kA
Discrete Input Number:
8
Regulation Loop:
adjustable PID regulator
Maximum Output Frequency:
500 kHz
Accuracy:
+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output || +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input
Power Dissipation In W:
forced convection 44 W 380 V 4 kHz || natural convection 105 W 600 V 4 kHz
Communication Port Protocol:
Modbus serial || Modbus TCP
Ambient Air Temperature For Storage:
-40-70 °C
Noise Level:
56 dB
Product Specific Application:
process and utilities
Discrete Output Type:
relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V
Minimum Switching Current:
relay output R1, R2, R3 5 mA 24 V DC
Electrical Connection:
motor screw terminal 6...10 mm² AWG 10...AWG 8 || line side screw terminal 4...6 mm² AWG 12...AWG10 || control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16
Insulation Resistance:
> 1 MOhm 500 V DC for 1 minute to earth
Permissible Temporary Current Boost:
1.5 x In 60 s heavy duty) || 1.1 x In 60 s normal duty)
Relative Humidity:
5-95 % without condensation IEC 60068-2-3
Relay Output Number:
3
Apparent Power:
7.6 kVA 480 V heavy duty) || 10.3 kVA 600 V normal duty)
Type Of Polarization:
no impedance
[Us] Rated Supply Voltage:
600 V - 15...10 %
Ip Degree Of Protection:
IP20IEC 60529 || IP21IEC 61800-5-1
Degree Of Protection:
UL type 1 UL 508C
Continuous Output Current:
12.7 A 4 kHz heavy duty || 13.5 A 4 kHz normal duty
Analogue Input Number:
3
Environmental Disclosure:
ENVPEP1707007EN
Nominal Switching Frequency:
4 kHz
Maximum Switching Current:
relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R1, R2, R3 resistive, cos phi = 1 3
Device Short Name:
ATV630
Switching Frequency:
4...12 kHz with derating factor || 2...12 kHz adjustable
Phase:
3 phase
Noise Level:
52 dB 86/188/EEC
Maximum Transient Current:
19.1 A 60 s heavy duty) || 14.9 A 60 s normal duty)
Supply Frequency:
50...60 Hz - 5...5 %
Type Of Cooling:
forced convection
Asynchronous Motor Control Profile:
optimized torque mode || constant torque standard || variable torque standard
Standards:
IEC 61800-3 || IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 508C
Mounting Mode:
wall mount
Option Card:
slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A
Sampling Duration:
5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output || 2 ms +/- 0.5 ms DI1...DI4) - discrete input
Discrete Output Number:
0
Physical Interface:
Ethernet || 2-wire RS 485
Rohs Exemption Information:
Yes
Vibration Resistance:
1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6
Analogue Input Type:
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits
Maximum Horse Power Rating:
7.5 hp heavy duty || 10 hp 600 V normal duty
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Or Component Type:
variable speed drive
Depth:
233 mm
Overvoltage Category:
III
Power Range:
7-11 kW 480-500 V 3 phase
Electromagnetic Compatibility:
radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency
Product Destination:
asynchronous motors || synchronous motors
Circularity Profile:
ENVEOLI1707007EN
Line Current:
11.9 A 480 V normal duty) || 10.5 A 380 V heavy duty) || 9.2 A 480 V heavy duty) || 9.9 A 600 V normal duty)
Braking To Standstill:
by DC injection
Analogue Output Type:
software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA
[Us] Rated Supply Voltage:
600 V
China Rohs Regulation:
X
Discrete Input Type:
DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)
Motor Power Kw:
5.5 kW heavy duty)
Data Format:
8 bits, configurable odd, even or no parity
Connector Type:
RJ45 on the remote graphic terminal)Modbus serial || RJ45 on the remote graphic terminal)Ethernet/Modbus TCP
Exchange Mode:
half duplex, full duplex, autonegotiation Ethernet/Modbus TCP
Input Compatibility:
DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2 || DI1...DI6 discrete input level 1 PLC IEC 61131-2
Speed Drive Output Frequency:
0.1-500 Hz
Discrete And Process Manufacturing:
food and beverage processing other application || mining mineral and metal fan || mining mineral and metal pump || oil and gas fan || water and waste water other application || building - HVAC screw compressor || food and beverage processing pump ||
Local Signalling:
for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red) || for local diagnostic 3 LEDs
Product Certifications:
ATEX INERIS || UL || ATEX zone 2/22 || CSA || TÜV
Enclosure Mounting:
wall mounted
Analogue Output Number:
2
Datasheet:
View
