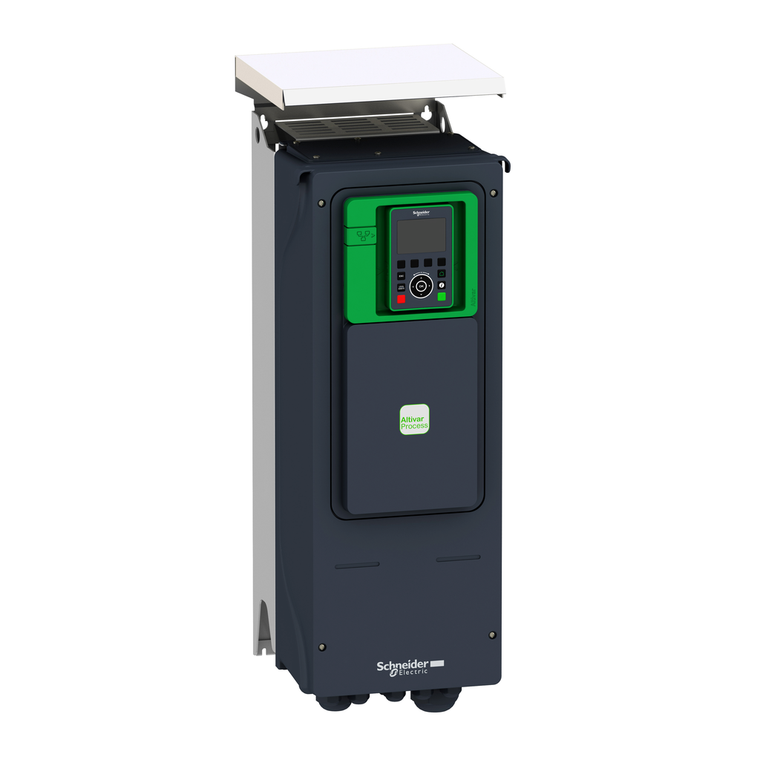

Schneider Electric ATV650D15N4U Atv650 Ip55 Ul Type12 15Kw 20Hp 400V/480

SKU:

ATV650D15N4U

UPC:

3.60648E+12

MPN:

Condition:

New

Switching Frequency:

4...12 kHz with derating factor || 2...12 kHz adjustable

Depth:

299 mm

Connector Type:

RJ45 on the remote graphic terminal)Modbus serial || RJ45 on the remote graphic terminal)Ethernet/Modbus TCP

Pollution Degree:

3

Circularity Profile:

ENVEOLI1406001EN

Mercury Free:

Yes

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Maximum Transient Current:

35.3 A 60 s heavy duty) || 34.9 A 60 s normal duty)

Standards:

IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || UL 508C

Discrete Input Number:

8

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Prospective Line Isc:

50 kA

Ambient Air Temperature For Operation:

40-50 °C with derating factor) || -15-40 °C without derating)

Operating Altitude:

1000...4800 m with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating

Braking To Standstill:

by DC injection

Asynchronous Motor Control Profile:

variable torque standard || constant torque standard

Product Or Component Type:

variable speed drive

Variant:

standard version

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Communication Port Protocol:

Modbus serial || Ethernet

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Quantity Per Set:

1

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

Regulation Loop:

adjustable PID regulator

Data Format:

8 bits, configurable odd, even or no parity

Noise Level:

53.7 dB 86/188/EEC

Physical Interface:

Ethernet || 2-wire RS 485

Linearity Error:

AO1, AO2 +/- 0.2 % analog output || AI1, AI2, AI3 +/- 0.15 % of maximum value analog input

Range Of Product:

Altivar Process ATV600

Relay Output Number:

3

Enclosure Mounting:

wall mounted

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Local Signalling:

for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red) || for local diagnostic 3 LEDs

Ambient Air Temperature For Storage:

-40-70 °C

Environmental Disclosure:

ENVPEP1406001EN

Marking:

CE

Upgradeability:

Upgraded components available

Motor Slip Compensation:

not available in permanent magnet motor law || can be suppressed || automatic whatever the load

Analogue Output Number:

2

Mounting Mode:

wall mount

Electrical Connection:

line side screw terminal 10...16 mm² || motor screw terminal 10...16 mm² || control removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16

China Rohs Regulation:

X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Overvoltage Category:

III

Height:

678 mm

Emc Filter:

integrated 50 m IEC 61800-3 category C2 || integrated 150 m IEC 61800-3 category C3

Discrete Output Number:

0

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Frequency Resolution:

analog input 0.012/50 Hz || display unit 0.1 Hz

Rohs Exemption Information:

Yes

Vibration Resistance:

1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6

Type Of Polarization:

no impedance

Ip Degree Of Protection:

IP55IEC 60529 || IP55IEC 61800-5-1

Option Card:

slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A

Supply Frequency:

50...60 Hz - 5...5 %

Analogue Input Number:

3

[Us] Rated Supply Voltage:

380...480 V

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R1, R2, R3 resistive, cos phi = 1 3

Discrete Input Logic:

16 preset speeds

Motor Power Kw:

11 kW heavy duty) || 15 kW normal duty)

Nominal Switching Frequency:

4 kHz

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Output Voltage:

<= power supply voltage

Maximum Horse Power Rating:

15 hp heavy duty || 20 hp normal duty

Noise Level:

53.7 dB

Net Weight:

19.6 kg

Apparent Power:

15 kVA 480 V heavy duty) || 19.4 kVA 480 V normal duty)

Sustainable Offer Status:

Green Premium product

Synchronous Motor Control Profile:

synchronous reluctance motor || permanent magnet motor

Continuous Output Current:

23.5 A 4 kHz heavy duty || 31.7 A 4 kHz normal duty

Supply:

internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection || external suppl

Sampling Duration:

5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output || 2 ms +/- 0.5 ms DI1...DI4) - discrete input

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Phase:

3 phase

Safety Function:

STO (safe torque off) SIL 3

Accuracy:

+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output || +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input

Maximum Output Frequency:

500 kHz

Transmission Frame:

RTU

Relay Output Type:

configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles || configurable relay logic R1 fault relay NO/NC 100000 cycles

Protection Type:

safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || m

Number Of Addresses:

1-247 Modbus serial

Product Certifications:

Bureau Veritas || UL || ATEX INERIS || CSA || ABS || DNV-GL

Product Specific Application:

process and utilities

Isolation:

between power and control terminals

Electromagnetic Compatibility:

radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency

Width:

264 mm

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Type Of Cooling:

forced convection

Degree Of Protection:

UL type 12 UL 508C

Pollution Degree:

2 IEC 61800-5-1

Method Of Access:

slave Modbus TCP

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Device Short Name:

ATV650

Speed Drive Output Frequency:

0.1-500 Hz

Operating Position:

vertical +/- 10 degree

Permissible Temporary Current Boost:

1.5 x In 60 s heavy duty) || 1.1 x In 60 s normal duty)

Input Compatibility:

DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2 || DI1...DI6 discrete input level 1 PLC IEC 61131-2

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Line Current:

23.3 A 480 V normal duty) || 20.6 A 380 V heavy duty) || 18.1 A 480 V heavy duty) || 27 A 380 V normal duty)

Product Destination:

asynchronous motors || synchronous motors
