Schneider Electric

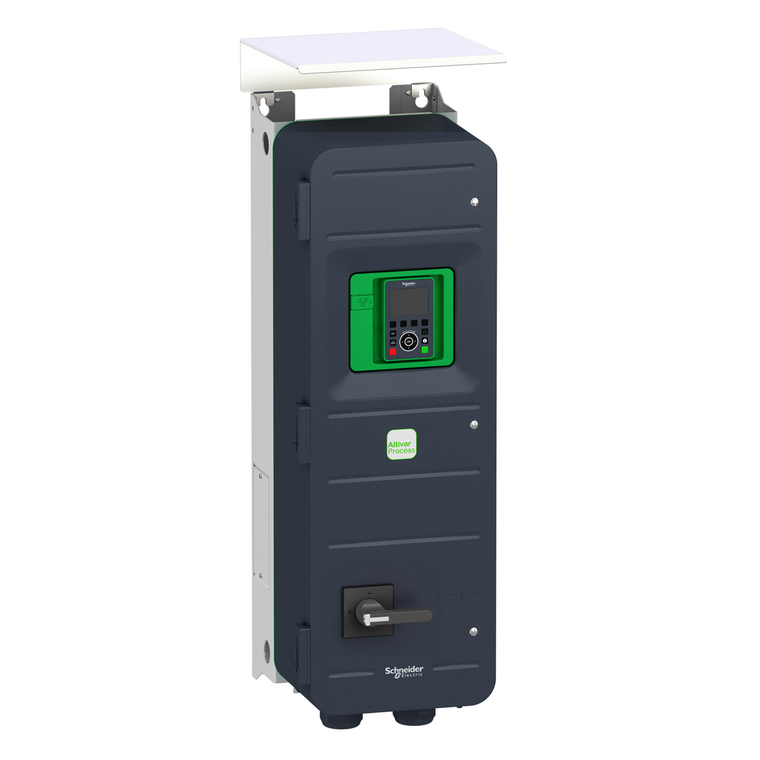

Schneider Electric ATV650D37N4EU Atv650 Ip55 Ultype12 37Kw 50Hp 400V/480V

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV650D37N4EU Atv650 Ip55 Ultype12 37Kw 50Hp 400V/480V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV650D37N4EU

UPC:

3.60648E+12

MPN:

Condition:

New

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Analogue Output Number:

2

Standards:

IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || IEC 61800-3

Quantity Per Set:

1

Product Specific Application:

process and utilities

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R1, R2, R3 resistive, cos phi = 1 3

Switching Frequency:

4...12 kHz with derating factor || 2...12 kHz adjustable

Electromagnetic Compatibility:

radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency

Supply Frequency:

50...60 Hz - 5...5 %

Maximum Transient Current:

92.3 A 60 s heavy duty) || 82 A 60 s normal duty)

Ambient Air Temperature For Storage:

-40-70 °C

Regulation Loop:

adjustable PID regulator

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Type Of Polarization:

no impedance

Operating Position:

vertical +/- 10 degree

Ip Degree Of Protection:

IP55IEC 60529 || IP55IEC 61800-5-1

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

Sampling Duration:

5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output || 2 ms +/- 0.5 ms DI1...DI4) - discrete input

Noise Level:

69.7 dB 86/188/EEC

Rohs Exemption Information:

Yes

Relay Output Type:

configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles || configurable relay logic R1 fault relay NO/NC 100000 cycles

Motor Power Kw:

30 kW heavy duty) || 37 kW normal duty)

Physical Interface:

Ethernet || 2-wire RS 485

Synchronous Motor Control Profile:

synchronous reluctance motor || permanent magnet motor

Noise Level:

69.7 dB

Variant:

with disconnect switch

China Rohs Regulation:

X

Data Format:

8 bits, configurable odd, even or no parity

Speed Drive Output Frequency:

0.1-500 Hz

Environmental Disclosure:

ENVPEP1506001EN

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Upgradeability:

Upgraded components available

Connector Type:

RJ45 on the remote graphic terminal)Modbus serial || RJ45 on the remote graphic terminal)Ethernet/Modbus TCP

Net Weight:

50 kg

[Us] Rated Supply Voltage:

380...480 V

Width:

290 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Discrete Input Logic:

16 preset speeds

Ambient Air Temperature For Operation:

40-50 °C with derating factor) || -15-40 °C without derating)

Overvoltage Category:

III

Range Of Product:

Altivar Process ATV600

Nominal Switching Frequency:

4 kHz

Motor Slip Compensation:

not available in permanent magnet motor law || adjustable || can be suppressed

Pollution Degree:

2 IEC 61800-5-1

Electrical Connection:

line side screw terminal 25...50 mm² || motor screw terminal 35...50 mm² || control removable screw terminals 0.5...1.5 mm²

Supply:

internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection || external suppl

Height:

910 mm

Number Of Addresses:

1-247 Modbus serial

Mercury Free:

Yes

Pollution Degree:

3

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Degree Of Protection:

UL type 12 UL 508C

Type Of Cooling:

forced convection

Output Voltage:

<= power supply voltage

Emc Filter:

integrated 50 m IEC 61800-3 category C2 || integrated 150 m IEC 61800-3 category C3

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Permissible Temporary Current Boost:

1.5 x In 60 s heavy duty) || 1.1 x In 60 s normal duty)

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

Communication Port Protocol:

Modbus TCP || Modbus serial

Device Short Name:

ATV650

Safety Function:

STO (safe torque off) SIL 3

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Mode:

wall mount

Transmission Frame:

RTU

Line Current:

57.3 A 480 V normal duty) || 54.8 A 380 V heavy duty) || 48.3 A 480 V heavy duty) || 66.2 A 380 V normal duty)

Local Signalling:

for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red) || for local diagnostic 3 LEDs

Linearity Error:

AO1, AO2 +/- 0.2 % analog output || AI1, AI2, AI3 +/- 0.15 % of maximum value analog input

Circularity Profile:

ENVEOLI1506001EN

Braking To Standstill:

by DC injection

Continuous Output Current:

59 A 4 kHz heavy duty || 72 A 4 kHz normal duty

Input Compatibility:

DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2 || DI1...DI6 discrete input level 1 PLC IEC 61131-2

Method Of Access:

slave Modbus TCP

Frequency Resolution:

analog input 0.012/50 Hz || display unit 0.1 Hz

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Product Or Component Type:

variable speed drive

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Depth:

401 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Output Frequency:

500 kHz

Accuracy:

+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output || +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input

Isolation:

between power and control terminals

Product Destination:

asynchronous motors || synchronous motors

Enclosure Mounting:

wall mounted

Vibration Resistance:

1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Relay Output Number:

3

Operating Altitude:

1000...4800 m with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating

Option Card:

slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A

Marking:

CE

Protection Type:

safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || m

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Product Certifications:

ATEX zone 2/22 || CSA || ATEX INERIS || DNV-GL || TÜV

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Asynchronous Motor Control Profile:

optimized torque mode || variable torque standard

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Analogue Input Number:

3

Discrete Input Number:

8

Apparent Power:

40.2 kVA 480 V heavy duty) || 47.6 kVA 480 V normal duty)

Discrete Output Number:

0

Phase:

3 phase

Maximum Horse Power Rating:

40 hp heavy duty || 50 hp normal duty

Sustainable Offer Status:

Green Premium product

Prospective Line Isc:

50 kA

Datasheet:

View
