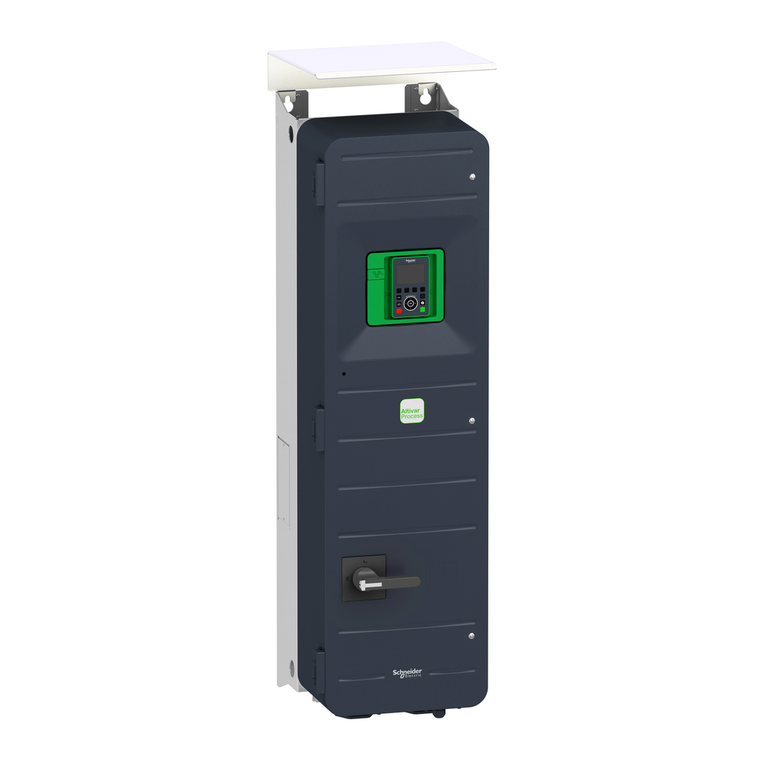

Schneider Electric ATV650D55N4EU Atv650 Ip55 Ultype12 55Kw 75Hp 400V/480V

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATV650D55N4EU Atv650 Ip55 Ultype12 55Kw 75Hp 400V/480V

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV650D55N4EU

UPC:

3.61E+12

MPN:

Condition:

New

Motor Power Kw:

45 kW heavy duty) || 55 kW normal duty)

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet/Modbus TCP

[Us] Rated Supply Voltage:

380...480 V

Maximum Switching Current:

relay output R1, R2, R3 resistive, cos phi = 1 3 A 30 V DC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1, R2, R3 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R1, R2, R3 resistive, cos phi = 1 3

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Maximum Output Frequency:

500 kHz

Analogue Input Number:

3

Isolation:

between power and control terminals

Maximum Horse Power Rating:

60 hp heavy duty || 75 hp normal duty

Type Of Polarization:

no impedance

Circularity Profile:

ENVEOLI1506002EN

Product Certifications:

ATEX INERIS || ATEX zone 2/22 || TÜV || UL || DNV-GL || CSA

Noise Level:

69.9 dB 86/188/EEC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Mode:

wall mount

Mercury Free:

Yes

Safety Function:

STO (safe torque off) SIL 3

Rohs Exemption Information:

Yes

Discrete Output Number:

0

Data Format:

8 bits, configurable odd, even or no parity

Sampling Duration:

5 ms +/- 1 ms DI5, DI6) - discrete input || 5 ms +/- 0.1 ms AI1, AI2, AI3) - analog input || 10 ms +/- 1 ms AO1) - analog output || 2 ms +/- 0.5 ms DI1...DI4) - discrete input

Degree Of Protection:

UL type 12 UL 508C

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Sustainable Offer Status:

Green Premium product

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Standards:

IEC 61800-3 environment 1 category C2 || EN/IEC 61800-3 environment 2 category C3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1 || IEC 61800-3

Ip Degree Of Protection:

IP55IEC 60529 || IP55IEC 61800-5-1

Discrete Input Type:

DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V)

Permissible Temporary Current Boost:

1.5 x In 60 s heavy duty) || 1.1 x In 60 s normal duty)

Supply:

internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for digital inputs and STO 24 V DC 21-27 V), <200 mA overload and short-circuit protection || external suppl

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 10 bits || software-configurable current DQ-, DQ+ 30 V DC || software-configurable current DQ-, DQ+ 100 mA

Discrete Output Type:

relay outputs R1A, R1B, R1C 250 V AC 3000 mA || relay outputs R1A, R1B, R1C 30 V DC 3000 mA || relay outputs R2A, R2C 250 V AC 5000 mA || relay outputs R2A, R2C 30 V DC 5000 mA || relay outputs R3A, R3C 250 V AC 5000 mA || relay outputs R3A, R3C 30 V

Synchronous Motor Control Profile:

synchronous reluctance motor || permanent magnet motor

Device Short Name:

ATV650

Variant:

with disconnect switch

Nominal Switching Frequency:

2.5 kHz

Continuous Output Current:

87 A 2.5 kHz heavy duty || 106 A 2.5 kHz normal duty

Operating Altitude:

1000...4800 m with current derating 1 % per 100 m || <= 3280.84 ft (1000 m) without derating

Relay Output Number:

3

Discrete Input Logic:

16 preset speeds

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Line Current:

84.2 A 480 V normal duty) || 81.4 A 380 V heavy duty) || 71.8 A 480 V heavy duty) || 97.2 A 380 V normal duty)

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 31.5 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA 250 Ohm 12 bits || AI2 voltage analog input - 10...10 V DC 31.5 kOhm 12 bits

Phase:

3 phase

Connector Type:

RJ45 on the remote graphic terminal)Modbus serial || RJ45 on the remote graphic terminal)Ethernet/Modbus TCP

Pollution Degree:

2 IEC 61800-5-1

Product Destination:

asynchronous motors || synchronous motors

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Operating Position:

vertical +/- 10 degree

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Output Voltage:

<= power supply voltage

Product Or Component Type:

variable speed drive

Transmission Rate:

10, 100 Mbits || 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps

Number Of Addresses:

1-247 Modbus serial

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Ambient Air Temperature For Storage:

-40-70 °C

Enclosure Mounting:

wall mounted

Ambient Air Temperature For Operation:

40-50 °C with derating factor) || -15-40 °C without derating)

Supply Frequency:

50...60 Hz - 5...5 %

Discrete Input Number:

8

Upgradeability:

Upgraded components available

Electromagnetic Compatibility:

radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5 || conducted radio-frequency

Braking To Standstill:

by DC injection

Option Card:

slot A communication module, PROFINET || slot A communication module, DeviceNet || slot A communication module, Modbus TCP/EtherNet/IP || slot A communication module, CANopen daisy chain RJ45 || slot A communication module, CANopen SUB-D 9 || slot A

Switching Frequency:

2...8 kHz adjustable || 2.5...8 kHz with derating factor

Pollution Degree:

3

Linearity Error:

AO1, AO2 +/- 0.2 % analog output || AI1, AI2, AI3 +/- 0.15 % of maximum value analog input

Input Compatibility:

DI5, DI6 discrete input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2 || DI1...DI6 discrete input level 1 PLC IEC 61131-2

Local Signalling:

for embedded communication status 3 LEDs (dual colour) || for communication module status 4 LEDs (dual colour) || for presence of voltage 1 LED (red) || for local diagnostic 3 LEDs

Emc Filter:

integrated 150 m IEC 61800-3 category C3

Overvoltage Category:

III

Accuracy:

+/- 1 % AO1, AO2 for a temperature variation 60 °C analog output || +/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input

Range Of Product:

Altivar Process ATV600

Speed Drive Output Frequency:

0.1-500 Hz

Communication Port Protocol:

Modbus serial || Ethernet

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Depth:

436 mm

Motor Slip Compensation:

automatic whatever the load || not available in permanent magnet motor law || can be suppressed

Product Specific Application:

process and utilities

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Environmental Disclosure:

ENVPEP1506002EN

Width:

345 mm

Apparent Power:

59.7 kVA 480 V heavy duty) || 70 kVA 480 V normal duty)

Prospective Line Isc:

50 kA

Analogue Output Number:

2

Noise Level:

69.9 dB

Maximum Transient Current:

132 A 60 s heavy duty) || 116.6 A 60 s normal duty)

Frequency Resolution:

analog input 0.012/50 Hz || display unit 0.1 Hz

Quantity Per Set:

1

Method Of Access:

slave Modbus TCP

Regulation Loop:

adjustable PID regulator

Net Weight:

87 kg

Vibration Resistance:

1 gn 13-200 Hz)IEC 60068-2-6 || 1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6

Height:

1250 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Physical Interface:

Ethernet || 2-wire RS 485

Relay Output Type:

configurable relay logic R2 sequence relay NO 100000 cycles || configurable relay logic R3 sequence relay NO 100000 cycles || configurable relay logic R1 fault relay NO/NC 100000 cycles

Marking:

CE

Type Of Cooling:

forced convection

Protection Type:

safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-circuit protection drive || m

China Rohs Regulation:

X

Asynchronous Motor Control Profile:

variable torque standard || optimized torque mode

Transmission Frame:

RTU

Electrical Connection:

line side screw terminal 70...95 mm² || motor screw terminal 70...120 mm² || control removable screw terminals 0.5...1.5 mm²

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12
