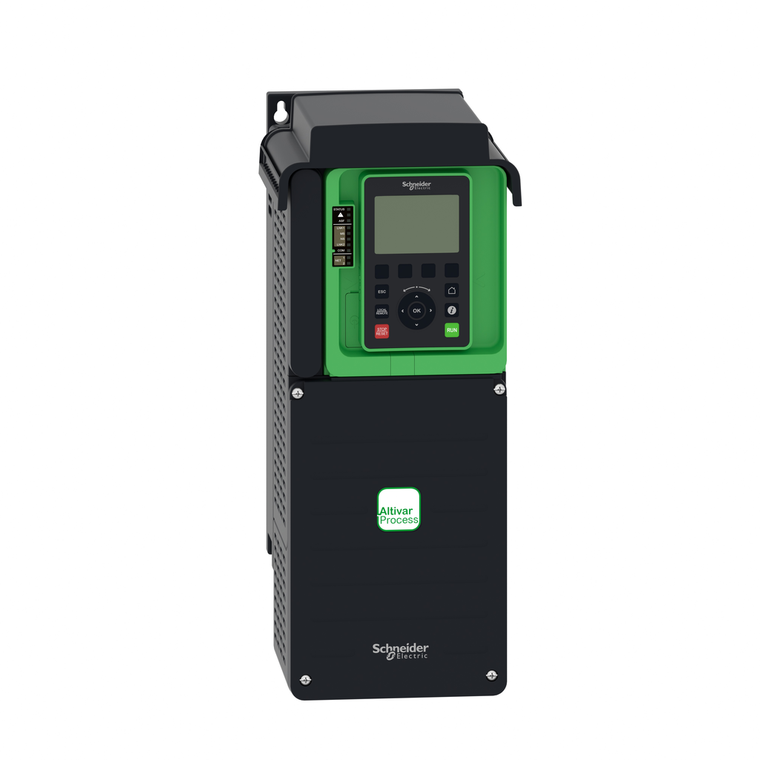

Schneider Electric ATV930D11N4 Atv930 Ip21 11Kw 400V/480V Variable Spee

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV930D11N4 Atv930 Ip21 11Kw 400V/480V Variable Spee

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV930D11N4

UPC:

3606480883323

MPN:

Condition:

New

Braking To Standstill:

by DC injection

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Brake Chopper Integrated:

TRUE

With Safety Function Safely Limited Speed (Sls):

TRUE

Discrete Output Number:

2

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Standards:

UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Noise Level:

56 dB

Rohs Exemption Information:

Yes

Nominal Switching Frequency:

4 kHz

Option Card:

slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module

Relative Symmetric Network Frequency Tolerance:

0.05

Overvoltage Category:

III

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Ambient Air Temperature For Storage:

-40-70 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Upgradeability:

Upgraded components available

Prospective Line Isc:

50 kA

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Environmental Characteristic:

chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3

Operating Position:

vertical +/- 10 degree

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

4 Quadrant Operation Possible:

TRUE

Device Application:

Industrial Application

Regulation Loop:

adjustable PID regulator

[Us] Rated Supply Voltage:

380...480 V - 15...10 %

Data Format:

8 bits, configurable odd, even or no parity

Mounting Mode:

wall mount

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP

Base Load Current At Low Overload:

23.5 A

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Phase:

3 phase

Analogue Input Number:

3

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Isolation:

between power and control terminals

Relay Output Number:

3

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Marking:

CE

Base Load Current At High Overload:

16.5 A

Volume Of Cooling Air:

103 m3/h

Degree Of Protection:

UL type 1

Analogue Output Number:

2

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Network Frequency:

50-60 Hz

Range Of Product:

Altivar Process ATV900

Line Current:

19.8 A 380 V normal duty) || 14.1 A 380 V heavy duty) || 17.0 A 480 V normal duty) || 12.5 A 480 V heavy duty)

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

With Safety Function Safely Limited Position (Slp):

FALSE

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

Physical Interface:

Ethernet || 2-wire RS 485

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Pollution Degree:

2

With Safety Function Safe Programmable Logic:

FALSE

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V

Maximum Transient Current:

28.2 A 60 s normal duty) || 24.8 A 60 s heavy duty)

Electrical Connection:

control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 6...10 mm² AWG 10...AWG 8 || line side screw terminal 6 mm² AWG 10 || DC bus screw terminal 6 mm² AWG 10

Maximum Output Frequency:

599 Hz

Data Format:

8 bits, configurable odd, even or no parity Modbus serial

Asynchronous Motor Control Profile:

variable torque standard || optimized torque mode || constant torque standard

Discrete Output Type:

logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA

Discrete Input Number:

10

Continuous Output Current:

23.5 A 4 kHz normal duty || 16.5 A 4 kHz heavy duty

Number Of Addresses:

1-247

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output

Transmission Rate:

10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Environmental Disclosure:

ENVPEP1508010EN

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

Mercury Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Noise Level:

56 dB 86/188/EEC

Product Or Component Type:

variable speed drive

Communication Port Protocol:

EtherNet/IP || Modbus serial || Modbus TCP

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

With Safety Function Safe Operating Stop (Sos):

FALSE

Product Destination:

asynchronous motors || synchronous motors

Variant:

standard version || with braking chopper

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Maximum Switching Current:

relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R

Emc Filter:

integrated || with EMC plate option

With Safety Function Safe Torque Off (Sto):

TRUE

Motor Slip Compensation:

adjustable || automatic whatever the load || can be suppressed || not available in permanent magnet motor law

Motor Power Kw:

11.0 kW normal duty || 7.5 kW heavy duty

Number Of Addresses:

1-247 Modbus serial

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output

Product Certifications:

UL || TÜV || CSA

Discrete Input Logic:

16 preset speeds

With Safety Function Safe Direction (Sdi):

FALSE

Ambient Air Transport Temperature:

-40-70 °C

Type Of Polarization:

no impedance

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Local Signalling:

local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)

Circularity Profile:

ENVEOLI1508010EN

Apparent Power:

14.1 kVA 480 V normal duty) || 10.4 kVA 480 V heavy duty)

Transmission Frame:

RTU

Input Compatibility:

DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Ip Degree Of Protection:

IP21

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

With Safety Function Safe Stop 1 (Ss1):

TRUE

China Rohs Regulation:

X

Type Of Polarization:

no impedance Modbus serial

With Safety Function Safe Position (Sp):

FALSE

Net Weight:

7.7 kg

Method Of Access:

slave Modbus TCP

Quantity Per Set:

1

Width:

171 mm

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Power Dissipation In W:

natural convection 51 W 380 V 4 kHz || forced convection 255 W 380 V 4 kHz

Depth:

236 mm

Maximum Output Voltage:

480.0 V

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

Discrete Input Type:

DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

Transmission Rate:

10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial

Product Specific Application:

process for industrial

Assembly Style:

enclosed

Connector Type:

2 RJ45 || 1 RJ45

Height:

409 mm

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles
