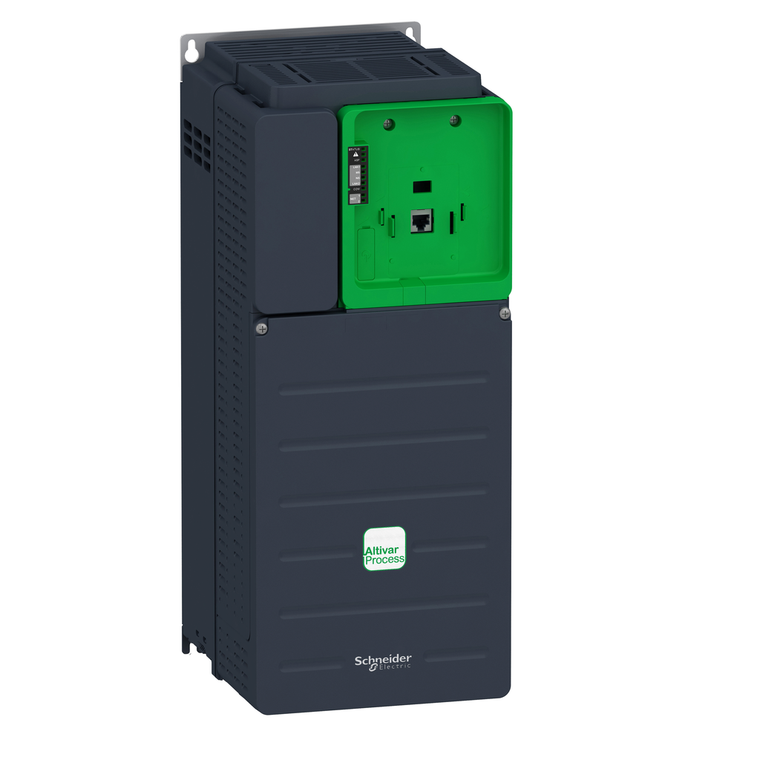

Schneider Electric ATV930D22N4ZU Atv930 T12 Rdy Ip20 30Hp 400V Wo Keypad Pack of 4
SKU:
ATV930D22N4ZU
UPC:
3606489740283
MPN:
Condition:
New
Isolation:
between power and control terminals
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Motor Power Kw:
22.0 kW normal duty || 18.5 kW heavy duty
Data Format:
8 bits, configurable odd, even or no parity
Protection Type:
thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c
Product Destination:
synchronous motors || asynchronous motors
Discrete Input Number:
10
Phase:
3 phase
Discrete Output Type:
logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA
Number Of Addresses:
1-247
Nominal Switching Frequency:
4 kHz
Line Current:
39.6 A 380 V normal duty) || 34.1 A 380 V heavy duty) || 34.4 A 480 V normal duty) || 29.9 A 480 V heavy duty)
Discrete Input Logic:
16 preset speeds
Sampling Duration:
2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output
With Safety Function Safe Position (Sp):
FALSE
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Analogue Output Number:
2
Ambient Air Transport Temperature:
-40-70 °C
With Safety Function Safe Brake Management (Sbc/Sbt):
TRUE
Base Load Current At High Overload:
39.2 A
Emc Filter:
integrated || with EMC plate option
Range Of Product:
Altivar Process ATV900
Regulation Loop:
adjustable PID regulator
Analogue Output Type:
software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
Width:
195 mm
Assembly Style:
with heat sink
Height:
480 mm
Mercury Free:
Yes
Relative Symmetric Network Frequency Tolerance:
0.05
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
permanent magnet motor || synchronous reluctance motor
Maximum Switching Current:
relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R
With Safety Function Safely Limited Position (Slp):
FALSE
Discrete Output Number:
2
Switching Frequency:
2...16 kHz adjustable || 4...16 kHz with derating factor
Type Of Polarization:
no impedance
Volume Of Cooling Air:
215 m3/h
Quantity Per Set:
1
Maximum Thdi:
<48 % from 80...100 % of load IEC 61000-3-12
With Safety Function Safe Stop 1 (Ss1):
TRUE
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Communication Port Protocol:
Modbus serial || EtherNet/IP || Modbus TCP
Device Application:
Industrial Application
Product Or Component Type:
variable speed drive
Transmission Frame:
RTU
Noise Level:
59.5 dB
Analogue Input Number:
3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Motor Slip Compensation:
adjustable || automatic whatever the load || can be suppressed || not available in permanent magnet motor law
Accuracy:
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
With Safety Function Safely Limited Speed (Sls):
TRUE
Product Certifications:
CSA || UL || TÃV
Ambient Air Temperature For Operation:
-15-50 °C without derating) || 50-60 °C with derating factor)
Option Card:
slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module
Electrical Connection:
control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 10...16 mm² AWG 8...AWG 6 || DC bus screw terminal 10...16 mm² AWG 8...AWG 6 || motor screw terminal 16 mm² AWG 6
Ambient Air Temperature For Storage:
-40-70 °C
Type Of Polarization:
no impedance Modbus serial
Overvoltage Category:
III
Power Dissipation In W:
natural convection 68 W 380 V 4 kHz || forced convection 505 W 380 V 4 kHz
Relative Humidity:
5-95 % without condensation IEC 60068-2-3
Supply:
external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d
Upgradeability:
Upgraded components available
Analogue Input Type:
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Relay Output Number:
3
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Net Weight:
13.7 kg
With Safety Function Safe Direction (Sdi):
FALSE
Brake Chopper Integrated:
TRUE
Prospective Line Isc:
50 kA
Maximum Output Voltage:
480.0 V
Insulation Resistance:
> 1 MOhm 500 V DC for 1 minute to earth
Linearity Error:
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output
4 Quadrant Operation Possible:
TRUE
With Safety Function Safe Operating Stop (Sos):
FALSE
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
Connector Type:
2 RJ45 || 1 RJ45
Operating Position:
vertical +/- 10 degree
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im
half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Degree Of Protection:
UL type 12
With Safety Function Safe Programmable Logic:
FALSE
Local Signalling:
local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
Mounting Mode:
cabinet mount
Base Load Current At Low Overload:
46.3 A
Maximum Transient Current:
55.6 A 60 s normal duty) || 58.8 A 60 s heavy duty)
Environmental Characteristic:
chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3
Continuous Output Current:
46.3 A 4 kHz normal duty || 39.2 A 4 kHz heavy duty
