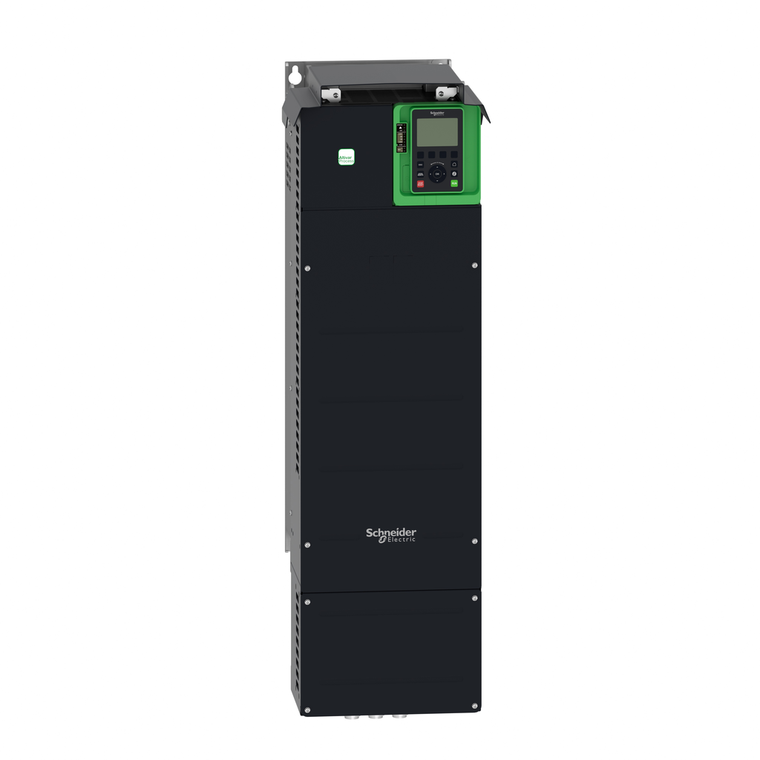

Schneider Electric ATV930D30M3 Atv930 Ip21 30Kw 200V/240V Variable Spee

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV930D30M3 Atv930 Ip21 30Kw 200V/240V Variable Spee

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV930D30M3

UPC:

3.60648E+12

MPN:

Condition:

New

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

Mounting Mode:

wall mount

With Safety Function Safe Position (Sp):

FALSE

Relay Output Number:

3

Upgradeability:

Upgraded components available

Variant:

with braking chopper || standard version

Ip Degree Of Protection:

IP21

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Width:

290 mm

China Rohs Regulation:

X

Nominal Switching Frequency:

2.5 kHz

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Transmission Frame:

RTU

Mercury Free:

Yes

With Safety Function Safe Speed Monitor (Ssm):

FALSE

[Us] Rated Supply Voltage:

200...240 V - 15...10 %

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Degree Of Protection:

UL type 1

Noise Level:

68.3 dB 86/188/EEC

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output

Environmental Characteristic:

chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3

Transmission Rate:

10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s

Asynchronous Motor Control Profile:

variable torque standard || optimized torque mode || constant torque standard

Ambient Air Transport Temperature:

-40-70 °C

Product Certifications:

TÜV || UL || CSA

Product Destination:

synchronous motors || asynchronous motors

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

Product Specific Application:

process for industrial

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Discrete Input Number:

10

Electrical Connection:

control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 70...120 mm² AWG 1/0...250 kcmil || DC bus screw terminal 70...120 mm² AWG 1/0...250 kcmil || motor screw terminal 70...120 mm² AWG 2/0...250 kcmil

Maximum Output Frequency:

599 Hz

Maximum Transient Current:

147.6 A 60 s normal duty) || 138.9 A 60 s heavy duty)

Continuous Output Current:

123 A 2.5 kHz normal duty || 92.6 A 2.5 kHz heavy duty

Line Current:

104.7 A 200 V normal duty) || 78.3 A 200 V heavy duty) || 88.6 A 240 V normal duty) || 67.1 A 240 V heavy duty)

Marking:

CE

Phase:

3 phase

Base Load Current At High Overload:

92.6 A

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Braking To Standstill:

by DC injection

Range Of Product:

Altivar Process ATV900

Transmission Rate:

10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial

Noise Level:

68.3 dB

Pollution Degree:

2

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Local Signalling:

local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

With Safety Function Safe Torque Off (Sto):

TRUE

Height:

922 mm

Type Of Polarization:

no impedance

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output

Relative Symmetric Network Frequency Tolerance:

0.05

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output

Analogue Input Number:

3

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

Standards:

UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Apparent Power:

36.8 kVA 240 V normal duty) || 27.9 kVA 240 V heavy duty)

Communication Port Protocol:

Modbus TCP || Modbus serial || EtherNet/IP

Physical Interface:

Ethernet || 2-wire RS 485

Switching Frequency:

1...8 kHz adjustable || 2.5...8 kHz with derating factor

With Safety Function Safe Stop 1 (Ss1):

TRUE

Power Dissipation In W:

natural convection 129 W 200 V 2.5 kHz || forced convection 862 W 200 V 2.5 kHz

Regulation Loop:

adjustable PID regulator

Circularity Profile:

ENVEOLI1411014EN

Operating Position:

vertical +/- 10 degree

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

With Safety Function Safely Limited Speed (Sls):

TRUE

Input Compatibility:

DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

With Safety Function Safe Programmable Logic:

FALSE

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Type Of Polarization:

no impedance Modbus serial

Discrete Output Number:

2

Method Of Access:

slave Modbus TCP

Ambient Air Temperature For Storage:

-40-70 °C

With Safety Function Safe Operating Stop (Sos):

FALSE

Discrete Output Type:

logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA

Number Of Addresses:

1-247 Modbus serial

Motor Slip Compensation:

automatic whatever the load || adjustable || can be suppressed || not available in permanent magnet motor law

Isolation:

between power and control terminals

With Safety Function Safe Direction (Sdi):

FALSE

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Quantity Per Set:

1

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Depth:

325.5 mm

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Discrete Input Logic:

16 preset speeds

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles

Emc Filter:

integrated || with EMC plate option

Option Card:

slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module

Maximum Switching Current:

relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R

Assembly Style:

enclosed

Brake Chopper Integrated:

TRUE

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

Product Or Component Type:

variable speed drive

Data Format:

8 bits, configurable odd, even or no parity Modbus serial

Device Application:

Industrial Application

Maximum Output Voltage:

240.0 V

Rohs Exemption Information:

Yes

Prospective Line Isc:

50 kA

Discrete Input Type:

DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

Analogue Output Number:

2

Number Of Addresses:

1-247

Connector Type:

2 RJ45 || 1 RJ45

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Overvoltage Category:

III

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Data Format:

8 bits, configurable odd, even or no parity

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP

Volume Of Cooling Air:

295 m3/h

Network Frequency:

50-60 Hz

Net Weight:

57.6 kg

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Environmental Disclosure:

ENVPEP1411014EN

Sustainable Offer Status:

Green Premium product

4 Quadrant Operation Possible:

TRUE

Motor Power Kw:

30.0 kW normal duty || 22.0 kW heavy duty

Base Load Current At Low Overload:

123.0 A

With Safety Function Safely Limited Position (Slp):

FALSE

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
