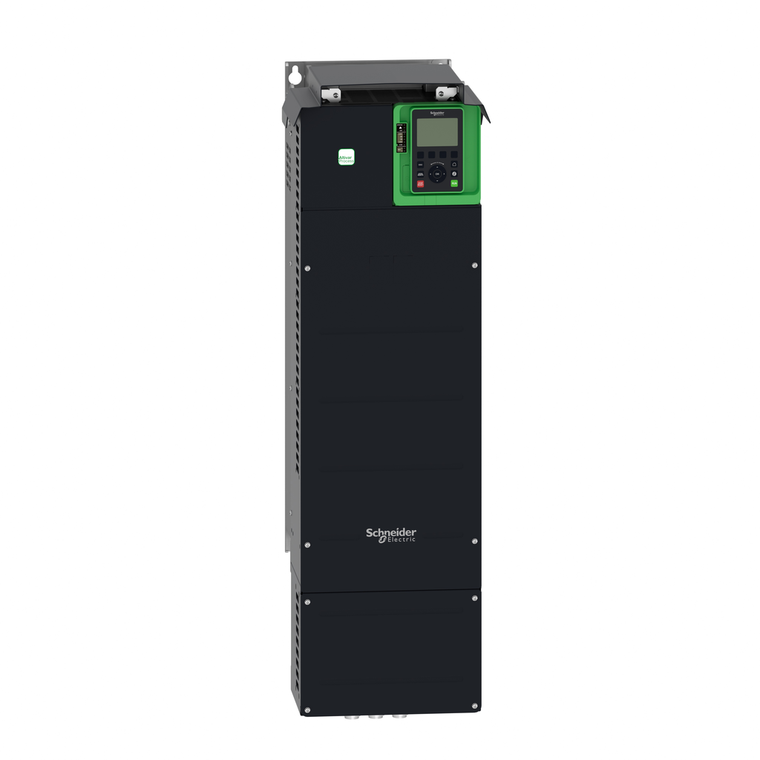

Schneider Electric ATV930D37M3 Atv930 Ip21 37Kw 200V/240V Variable Spee

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric ATV930D37M3 Atv930 Ip21 37Kw 200V/240V Variable Spee

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV930D37M3

UPC:

3606480883668

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Transport Temperature:

-40-70 °C

Transmission Frame:

RTU

With Safety Function Safe Direction (Sdi):

FALSE

Regulation Loop:

adjustable PID regulator

Emc Filter:

integrated || with EMC plate option

Base Load Current At High Overload:

123.0 A

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Transmission Rate:

10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s

Local Signalling:

local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

Discrete Input Type:

DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

Motor Power Kw:

37.0 kW normal duty || 30.0 kW heavy duty

Data Format:

8 bits, configurable odd, even or no parity

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Us] Rated Supply Voltage:

200...240 V - 15...10 %

Number Of Addresses:

1-247

Assembly Style:

enclosed

Braking To Standstill:

by DC injection

Mercury Free:

Yes

Line Current:

128.0 A 200 V normal duty) || 104.7 A 200 V heavy duty) || 107.8 A 240 V normal duty) || 88.6 A 240 V heavy duty)

Product Certifications:

TÜV || CSA || UL

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

With Safety Function Safe Stop 1 (Ss1):

TRUE

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP

Mounting Mode:

wall mount

Degree Of Protection:

UL type 1

Device Application:

Industrial Application

Relative Symmetric Network Frequency Tolerance:

0.05

Apparent Power:

44.8 kVA 240 V normal duty) || 36.8 kVA 240 V heavy duty)

Relay Output Number:

3

Noise Level:

68.3 dB

Option Card:

slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module

Type Of Polarization:

no impedance Modbus serial

Product Or Component Type:

variable speed drive

Electrical Connection:

control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || motor screw terminal 95...120 mm² AWG 3/0...250 kcmil || line side screw terminal 70...120 mm² AWG 2/0...250 kcmil || DC bus screw terminal 70...120 mm² AWG 2/0...250 kcmil

Standards:

UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Communication Port Protocol:

Modbus serial || Modbus TCP || EtherNet/IP

Product Specific Application:

process for industrial

Brake Chopper Integrated:

TRUE

With Safety Function Safely Limited Position (Slp):

FALSE

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output

Network Frequency:

50-60 Hz

Noise Level:

68.3 dB 86/188/EEC

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

Height:

922 mm

Environmental Disclosure:

ENVPEP1411014EN

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Upgradeability:

Upgraded components available

Net Weight:

57.6 kg

Maximum Switching Current:

relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R

Analogue Output Number:

2

Nominal Switching Frequency:

2.5 kHz

Analogue Input Number:

3

Discrete Input Logic:

16 preset speeds

Pollution Degree:

2

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Prospective Line Isc:

50 kA

Quantity Per Set:

1

Variant:

standard version || with braking chopper

Method Of Access:

slave Modbus TCP

Overvoltage Category:

III

Width:

290 mm

Maximum Output Voltage:

240.0 V

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Switching Frequency:

1...8 kHz adjustable || 2.5...8 kHz with derating factor

Ip Degree Of Protection:

IP21

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

Data Format:

8 bits, configurable odd, even or no parity Modbus serial

Circularity Profile:

ENVEOLI1411014EN

Maximum Thdi:

<48 % from 80...100 % of load IEC 61000-3-12

With Safety Function Safe Torque Off (Sto):

TRUE

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Connector Type:

2 RJ45 || 1 RJ45

With Safety Function Safe Position (Sp):

FALSE

Marking:

CE

With Safety Function Safe Operating Stop (Sos):

FALSE

Volume Of Cooling Air:

295 m3/h

Physical Interface:

Ethernet || 2-wire RS 485

Rohs Exemption Information:

Yes

Discrete Input Number:

10

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Motor Slip Compensation:

not available in permanent magnet motor law || can be suppressed || adjustable || automatic whatever the load

Phase:

3 phase

Power Dissipation In W:

natural convection 156 W 200 V 2.5 kHz || forced convection 1141 W 200 V 2.5 kHz

Input Compatibility:

DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Depth:

325.5 mm

Environmental Characteristic:

chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Operating Position:

vertical +/- 10 degree

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Discrete Output Type:

logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA

4 Quadrant Operation Possible:

TRUE

Isolation:

between power and control terminals

Type Of Polarization:

no impedance

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

Discrete Output Number:

2

Transmission Rate:

10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial

Asynchronous Motor Control Profile:

constant torque standard || optimized torque mode || variable torque standard

With Safety Function Safe Programmable Logic:

FALSE

Base Load Current At Low Overload:

149.0 A

With Safety Function Safely Limited Speed (Sls):

TRUE

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output

Ambient Air Temperature For Storage:

-40-70 °C

Range Of Product:

Altivar Process ATV900

Sustainable Offer Status:

Green Premium product

Product Destination:

asynchronous motors || synchronous motors

Continuous Output Current:

149 A 2.5 kHz normal duty || 123 A 2.5 kHz heavy duty

Number Of Addresses:

1-247 Modbus serial

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles

Maximum Transient Current:

178.8 A 60 s normal duty) || 184.5 A 60 s heavy duty)

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

China Rohs Regulation:

X

Maximum Output Frequency:

599 Hz
