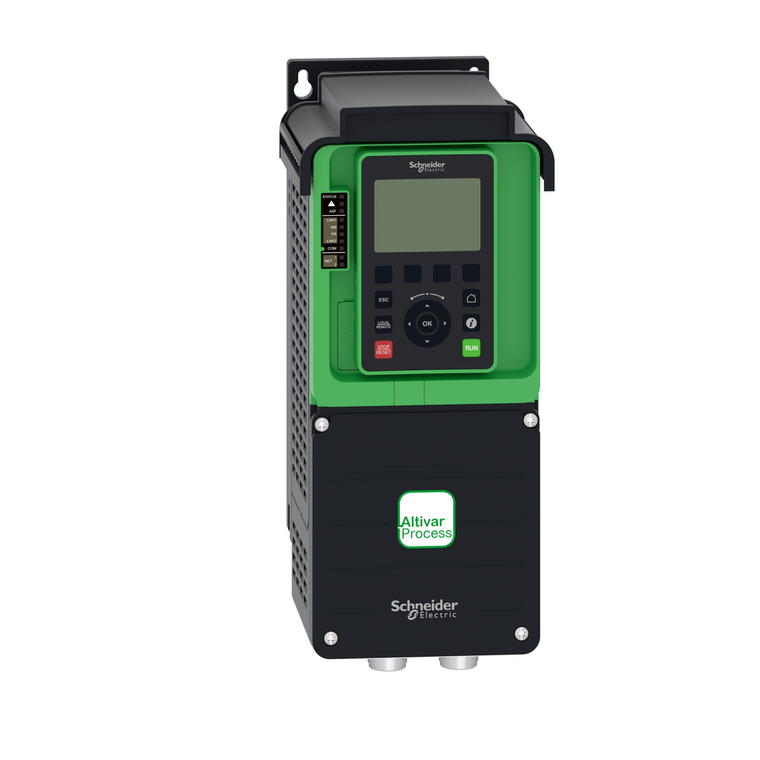

Schneider Electric ATV930U40M3 Atv930 Ip21 4Kw 200V/240V Variable Speed

(No reviews yet) Write a Review

Write a Review

Schneider Electric ATV930U40M3 Atv930 Ip21 4Kw 200V/240V Variable Speed

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ATV930U40M3

UPC:

3606480883583

MPN:

Condition:

New

Volume Of Cooling Air:

38 m3/h

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

China Rohs Regulation:

X

Ambient Air Transport Temperature:

-40-70 °C

Operating Altitude:

<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m

Refresh Time:

relay output R1, R2, R3)5 ms +/- 0.5 ms)

Acceleration And Deceleration Ramps:

linear adjustable separately from 0.01...9999 s

Sustainable Offer Status:

Green Premium product

Nominal Switching Frequency:

4 kHz

Relative Symmetric Network Frequency Tolerance:

0.05

Mounting Mode:

wall mount

Discrete Input Logic:

positive logic (source) DI1...DI8), < 5 V, > 11 V || negative logic (sink) DI1...DI8), > 16 V, < 10 V || positive logic (source) DI7, DI8), < 0.6 V, > 2.5 V || positive logic (source) STOA, STOB), < 5 V, > 11 V

Motor Slip Compensation:

automatic whatever the load || not available in permanent magnet motor law || adjustable || can be suppressed

4 Quadrant Operation Possible:

TRUE

Communication Port Protocol:

Modbus serial || Modbus TCP || EtherNet/IP

Permitted Relative Humidity (During Operation):

class 3K5 according to EN 60721-3

Base Load Current At High Overload:

13.7 A

Pollution Degree:

2

Regulation Loop:

adjustable PID regulator

Discrete Input Logic:

16 preset speeds

Ambient Air Temperature For Operation:

-15-50 °C without derating) || 50-60 °C with derating factor)

Line Current:

15.1 A 200 V normal duty) || 11.7 A 200 V heavy duty) || 12.9 A 240 V normal duty) || 10.2 A 240 V heavy duty)

With Safety Function Safe Speed Monitor (Ssm):

FALSE

Power Dissipation In W:

natural convection 38 W 200 V 4 kHz || forced convection 141 W 200 V 4 kHz

With Safety Function Safe Torque Off (Sto):

TRUE

Transmission Rate:

10, 100 Mbits || 4.8 kbps || 9600 bit/s || 19200 bit/s

Physical Interface:

Ethernet || 2-wire RS 485

Emc Filter:

integrated || with EMC plate option

Continuous Output Current:

18.7 A 4 kHz normal duty || 13.7 A 4 kHz heavy duty

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Range Of Product:

Altivar Process ATV900

Number Of Addresses:

1-247 Modbus serial

Connector Type:

2 RJ45 || 1 RJ45

Analogue Output Number:

2

With Safety Function Safe Programmable Logic:

FALSE

Protection Type:

thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c

Exchange Mode:

half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP

Analogue Output Type:

software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Variant:

standard version || with braking chopper

Shock Resistance:

15 gn 11 ms IEC 60068-2-27

Analogue Input Type:

AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits

Maximum Switching Current:

relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R

Relay Output Number:

3

Product Certifications:

UL || CSA || TÜV

With Safety Function Safely Limited Position (Slp):

FALSE

Type Of Polarization:

no impedance Modbus serial

With Safety Function Safe Stop 1 (Ss1):

TRUE

Discrete Output Number:

2

Standards:

UL 508C || IEC 61800-3 || IEC 61800-5-1 || IEC 61000-3-12 || IEC 60721-3 || IEC 61508 || IEC 13849-1

Product Destination:

asynchronous motors || synchronous motors

Sampling Duration:

2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output

[Us] Rated Supply Voltage:

200...240 V - 15...10 %

Net Weight:

4.6 kg

Relay Output Type:

configurable relay logic R1 fault relay NO/NC 100000 cycles || configurable relay logic R2 sequence relay NO 1000000 cycles || configurable relay logic R3 sequence relay NO 1000000 cycles

Network Frequency:

50-60 Hz

Maximum Output Voltage:

240.0 V

With Safety Function Safe Brake Management (Sbc/Sbt):

TRUE

Depth:

206 mm

Maximum Thdi:

<48 % full load IEC 61000-3-12

Transmission Frame:

RTU

Assembly Style:

enclosed

Maximum Output Frequency:

599 Hz

Relative Humidity:

5-95 % without condensation IEC 60068-2-3

Device Application:

Industrial Application

Product Specific Application:

process for industrial

Type Of Polarization:

no impedance

Insulation Resistance:

> 1 MOhm 500 V DC for 1 minute to earth

With Safety Function Safely Limited Speed (Sls):

TRUE

Degree Of Protection:

UL type 1

Analogue Input Number:

3

Electromagnetic Compatibility:

electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge im

With Sft Fct Safe Stop 2 (Ss2):

FALSE

Environmental Disclosure:

ENVPEP1501005EN

Environmental Characteristic:

chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3

Environmental Class (During Operation):

class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3

Minimum Switching Current:

relay output R1, R2, R3 5 mA 24 V DC

Option Card:

slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module

Noise Level:

54.5 dB

Synchronous Motor Control Profile:

permanent magnet motor || synchronous reluctance motor

Noise Level:

54.5 dB 86/188/EEC

Supply:

external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d

Ambient Air Temperature For Storage:

-40-70 °C

With Safety Function Safe Position (Sp):

FALSE

Discrete Output Type:

logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA

Phase:

3 phase

Height:

350 mm

Braking To Standstill:

by DC injection

Data Format:

8 bits, configurable odd, even or no parity

Width:

144 mm

Linearity Error:

AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output

Electrical Connection:

control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 4...6 mm² AWG 12...AWG 10 || DC bus screw terminal 4...6 mm² AWG 12...AWG 10 || motor screw terminal 6 mm² AWG 10

Mercury Free:

Yes

Product Or Component Type:

variable speed drive

Rohs Exemption Information:

Yes

Apparent Power:

5.4 kVA 240 V normal duty) || 4.2 kVA 240 V heavy duty)

With Safety Function Safe Direction (Sdi):

FALSE

Upgradeability:

Upgraded components available

Operating Position:

vertical +/- 10 degree

Local Signalling:

local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)

Maximum Transient Current:

22.4 A 60 s normal duty) || 20.6 A 60 s heavy duty)

Maximum Acceleration Under Vibrational Stress (During Operation):

10 m/s² at 13...200 Hz

Maximum Deflection Under Vibratory Load (During Operation):

1.5 mm at 2...13 Hz

Discrete Input Number:

10

Accuracy:

+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output

Circularity Profile:

ENVEOLI1501005EN

Switching Frequency:

2...16 kHz adjustable || 4...16 kHz with derating factor

With Safety Function Safe Operating Stop (Sos):

FALSE

Motor Power Kw:

4.0 kW normal duty || 3.0 kW heavy duty

Discrete Input Type:

DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm

Ip Degree Of Protection:

IP21

Number Of Addresses:

1-247

Marking:

CE

Overvoltage Category:

III

Asynchronous Motor Control Profile:

optimized torque mode || constant torque standard || variable torque standard

Isolation:

between power and control terminals

Transmission Rate:

10/100 Mbit/s Ethernet IP/Modbus TCP || 4.8, 9.6, 19.2, 38.4 kbit/s Modbus serial

Base Load Current At Low Overload:

18.7 A

Input Compatibility:

DI1...DI8 discrete input level 1 PLC IEC 61131-2 || DI7, DI8 pulse input level 1 PLC IEC 65A-68 || STOA, STOB discrete input level 1 PLC IEC 61131-2

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Acceleration Under Shock Impact (During Operation):

150 m/s² at 11 ms

Data Format:

8 bits, configurable odd, even or no parity Modbus serial

Quantity Per Set:

1

Method Of Access:

slave Modbus TCP

Prospective Line Isc:

50 kA

Vibration Resistance:

1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6

Brake Chopper Integrated:

TRUE
