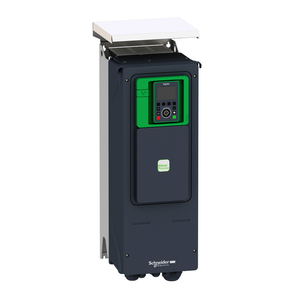

Schneider Electric ATV950D37N4U Atv950 Ip55 Ultype12 37Kw 400V/480V Vari
SKU:
ATV950D37N4U
UPC:
3.60648E+12
MPN:
Condition:
New
Analogue Input Number:
3
Local Signalling:
local diagnostic 3 LED mono/dual colour) || embedded communication status 5 LED dual colour) || communication module status 2 LED dual colour) || presence of voltage 1 LED red)
Type Of Polarization:
no impedance
Maximum Output Voltage:
480.0 V
Data Format:
8 bits, configurable odd, even or no parity
Discrete Input Logic:
16 preset speeds
With Safety Function Safe Operating Stop (Sos):
FALSE
Communication Port Protocol:
Modbus serial || EtherNet/IP || Modbus TCP
Apparent Power:
47.6 kVA 480 V normal duty) || 40.2 kVA 480 V heavy duty)
Permitted Relative Humidity (During Operation):
class 3K5 according to EN 60721-3
Type Of Polarization:
no impedance Modbus serial
Quantity Per Set:
1
Discrete Input Type:
DI1...DI8 programmable, 24 V DC <= 30 V)3.5 kOhm || DI7, DI8 programmable as pulse input 0-30 kHz, 24 V DC <= 30 V) || STOA, STOB safe torque off, 24 V DC <= 30 V)> 2.2 kOhm
Isolation:
between power and control terminals
Prospective Line Isc:
50 kA
Pollution Degree:
2
With Safety Function Safely Limited Speed (Sls):
TRUE
Brake Chopper Integrated:
TRUE
Line Current:
66.2 A 380 V normal duty) || 54.8 A 380 V heavy duty) || 57.3 A 480 V normal duty) || 48.3 A 480 V heavy duty)
Range Of Product:
Altivar Process ATV900
Network Frequency:
50-60 Hz
With Safety Function Safe Torque Off (Sto):
TRUE
With Safety Function Safe Direction (Sdi):
FALSE
With Safety Function Safe Stop 1 (Ss1):
TRUE
[Us] Rated Supply Voltage:
380...480 V - 15...10 %
Operating Altitude:
<= 3280.84 ft (1000 m) without derating || 1000...4800 m with current derating 1 % per 100 m
89.4 A 60 s normal duty) || 92.3 A 60 s heavy duty)
Option Card:
slot A communication module Profibus DP V1 || slot A communication module PROFINET || slot A communication module DeviceNet || slot A communication module EtherCAT || slot A communication module CANopen daisy chain RJ45 || slot A communication module
Phase:
3 phase
Number Of Addresses:
1-247 Modbus serial
Relay Output Number:
3
Data Format:
8 bits, configurable odd, even or no parity Modbus serial
Environmental Disclosure:
ENVPEP1506001EN
Electrical Connection:
control screw terminal 0.5...1.5 mm² AWG 20...AWG 16 || line side screw terminal 25...50 mm² AWG 4...AWG 1 || DC bus screw terminal 25...50 mm² AWG 4...AWG 1 || motor screw terminal 35...50 mm² AWG 3...AWG 1
Exchange Mode:
half duplex, full duplex, autonegotiation Ethernet IP/Modbus TCP
Synchronous Motor Control Profile:
permanent magnet motor || synchronous reluctance motor
Maximum Acceleration Under Shock Impact (During Operation):
150 m/s² at 11 ms
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Analogue Output Type:
software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10 bits || software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits
Ambient Air Transport Temperature:
-40-70 °C
Continuous Output Current:
74.5 A 4 kHz normal duty || 61.5 A 4 kHz heavy duty
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Relative Humidity:
5-95 % without condensation IEC 60068-2-3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
With Safety Function Safely Limited Position (Slp):
FALSE
With Safety Function Safe Programmable Logic:
FALSE
Protection Type:
thermal protection motor || safe torque off motor || motor phase break motor || thermal protection drive || safe torque off drive || overheating drive || overcurrent between output phases and earth drive || overload of output voltage drive || short-c
Maximum Output Frequency:
599 Hz
Environmental Characteristic:
chemical pollution resistance class 3C3 IEC 60721-3-3 || dust pollution resistance class 3S3 IEC 60721-3-3
AI1, AI2, AI3 +/- 0.15 % of maximum value analog input || AQ1, AQ2 +/- 0.2 % analog output
Environmental Class (During Operation):
class 3C3 according to IEC 60721-3-3 || class 3S3 according to IEC 60721-3-3
Ambient Air Temperature For Storage:
-40-70 °C
Motor Slip Compensation:
can be suppressed || adjustable || automatic whatever the load || not available in permanent magnet motor law
Maximum Thdi:
<48 % from 80...100 % of load IEC 61000-3-12
Maximum Acceleration Under Vibrational Stress (During Operation):
10 m/s² at 13...200 Hz
Vibration Resistance:
1.5 mm peak to peak 2-13 Hz)IEC 60068-2-6 || 1 gn 13-200 Hz)IEC 60068-2-6
Motor Power Kw:
37.0 kW normal duty || 30.0 kW heavy duty
Analogue Input Type:
AI1, AI2, AI3 software-configurable voltage 0...10 V DC 30 kOhm 12 bits || AI1, AI2, AI3 software-configurable current 0...20 mA/4...20 mA 250 Ohm 12 bits
Maximum Deflection Under Vibratory Load (During Operation):
1.5 mm at 2...13 Hz
Operating Position:
vertical +/- 10 degree
Regulation Loop:
adjustable PID regulator
Number Of Addresses:
1-247
Connector Type:
2 RJ45 || 1 RJ45
Discrete Output Type:
logic output DQ+ 0-1 kHz <= 30 V DC 100 mA || programmable as pulse output DQ+ 0-30 kHz <= 30 V DC 20 mA || logic output DQ- 0-1 kHz <= 30 V DC 100 mA
Rohs Exemption Information:
Yes
Upgradeability:
Upgraded components available
Asynchronous Motor Control Profile:
variable torque standard || constant torque standard || optimized torque mode
Noise Level:
69.7 dB 86/188/EEC
Supply:
external supply for digital inputs 24 V DC 19-30 V), <1.25 mA overload and short-circuit protection || internal supply for reference potentiometer (1 to 10 kOhm) 10.5 V DC +/- 5 %, <10 mA overload and short-circuit protection || internal supply for d
Acceleration And Deceleration Ramps:
linear adjustable separately from 0.01...9999 s
With Safety Function Safe Speed Monitor (Ssm):
FALSE
Mercury Free:
Yes
Electromagnetic Compatibility:
electrostatic discharge immunity test level 3 IEC 61000-4-2 || radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3 || electrical fast transient/burst immunity test level 4 IEC 61000-4-4 || 1.2/50 µs - 8/20 µs surge immu
Physical Interface:
Ethernet || 2-wire RS 485
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog input || +/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output
Width:
290 mm
Minimum Switching Current:
relay output R1, R2, R3 5 mA 24 V DC
Degree Of Protection:
UL type 12
Method Of Access:
slave Modbus TCP
Assembly Style:
enclosed
Base Load Current At Low Overload:
74.5 A
Circularity Profile:
ENVEOLI1506001EN
Mounting Mode:
wall mount
Discrete Input Number:
10
With Safety Function Safe Brake Management (Sbc/Sbt):
TRUE
Base Load Current At High Overload:
61.5 A
Relative Symmetric Network Frequency Tolerance:
0.05
Product Certifications:
ATEX INERIS || DNV-GL || ABS || CSA || TÜV || Bureau Veritas || UL
Net Weight:
50 kg
Sampling Duration:
2 ms +/- 0.5 ms DI1...DI8) - discrete input || 5 ms +/- 1 ms DI7, DI8) - pulse input || 1 ms +/- 1 ms AI1, AI2, AI3) - analog input || 5 ms +/- 1 ms AQ1, AQ2) - analog output
Variant:
with braking chopper || standard version
Emc Filter:
integrated || with EMC plate option
Maximum Switching Current:
relay output R1 resistive, cos phi = 1 3 A 250 V AC || relay output R1 resistive, cos phi = 1 3 A 30 V DC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 250 V AC || relay output R1 inductive, cos phi = 0.4 7 ms 2 A 30 V DC || relay output R2, R
Nominal Switching Frequency:
4 kHz
With Sft Fct Safe Stop 2 (Ss2):
FALSE
Device Application:
Industrial Application
Ambient Air Temperature For Operation:
-15-40 °C without derating) || 40-50 °C with derating factor)
Braking To Standstill:
by DC injection
China Rohs Regulation:
X
Shock Resistance:
15 gn 11 ms IEC 60068-2-27
Height:
910 mm
Sustainable Offer Status:
Green Premium product
4 Quadrant Operation Possible:
TRUE
Switching Frequency:
2...16 kHz adjustable || 4...16 kHz with derating factor
