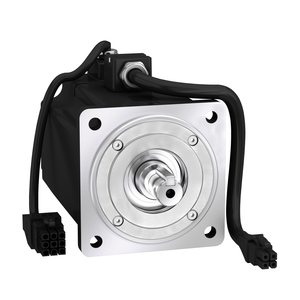

Schneider Electric BCH2HF0731CA5C 80Mm 750W 20Bit E. Key Leads
SKU:
BCH2HF0731CA5C
UPC:
3.60648E+12
MPN:
Condition:
New
Net Weight:
2.9 kg
Rotor Inertia:
1.54 kg.cm²
Nominal Speed:
3000 rpm LXM28... 4.5 A, 220 V, single phase || 3000 rpm LXM28... 4.5 A, 220 V, three phase || 3000 rpm LXM28... 9 A, 110 V, single phase
Peak Stall Torque:
7.16 N.m LXM28... 4.5 A, 220 V, single phase || 7.16 N.m LXM28... 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 9 A, 110 V, single phase
Maximum Current Irms:
13.23 A LXM28... 0.75 kW, 220 V || 13.23 A LXM28... 0.75 kW, 110 V
Brake Pull-In Power:
10.2 W
Length:
138 mm
Phase:
three phase || single phase
Stator Inductance:
6.1 mH 20 °C
Shaft Length:
35 mm
Environmental Disclosure:
ENVPEP1504002EN
Ambient Air Temperature For Operation:
-20-40 °C
Continuous Stall Torque:
2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
Nominal Output Power:
750 W LXM28... 4.5 A, 220 V, single phase || 750 W LXM28... 4.5 A, 220 V, three phase || 750 W LXM28... 9 A, 110 V, single phase
Range Compatibility:
Lexium 28
Back Emf Constant:
36 V/krpm 20 °C
Electrical Connection:
free lead
Distance Shaft Shoulder-Flange:
4 mm
Maximum Mechanical Speed:
5000 rpm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ip Degree Of Protection:
IP54 IM B5, IM V1 || IP50 IM V3
Circularity Profile:
ENVEOLI1504002EN
Type Of Cooling:
natural convection
Maximum Permanent Current:
4.29 A
Shaft Diameter:
19 mm
Motor Flange Size:
80 mm
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of Svhc:
Yes
Torque Constant:
0.6 N.m/A 20 °C
Circle Diameter Of The Mounting Holes:
90 mm
Maximum Radial Force Fr:
332 N 3000 rpm
Sustainable Offer Status:
Green Premium product
Holding Brake:
without
Stator Electrical Time Constant:
4.07 ms 20 °C
Number Of Motor Stacks:
2
Centring Collar Depth:
4 mm
China Rohs Regulation:
X
Pvc Free:
Yes
Stator Resistance:
1.5 Ohm 20 °C
Continuous Power:
750 W
Rohs Exemption Information:
Yes
Mercury Free:
Yes
Shaft End:
keyed
Mounting Support:
asian standard flange
Maximum Axial Force Fa:
115 N
Key Width:
6 mm
Product Or Component Type:
servo motor
Number Of Mounting Holes:
4
Device Short Name:
BCH2
Continuous Stall Current:
4.01 A
Feedback Type:
20 bits single turn absolute encoder
Nominal Torque:
2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Compatibility:
LXM28... servo drive 0.75 kW, 220 V, single phase || LXM28... servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 110 V, single phase
Reach Regulation:
Free of Substances of Very High Concern above the threshold
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It...
This product is part of the Lexium 28 range, an offer of motion servo drives for machines from 0.05 to 4.5kW. The brushless servo motor features a high moment of inertia with maximum mechanical speed...
