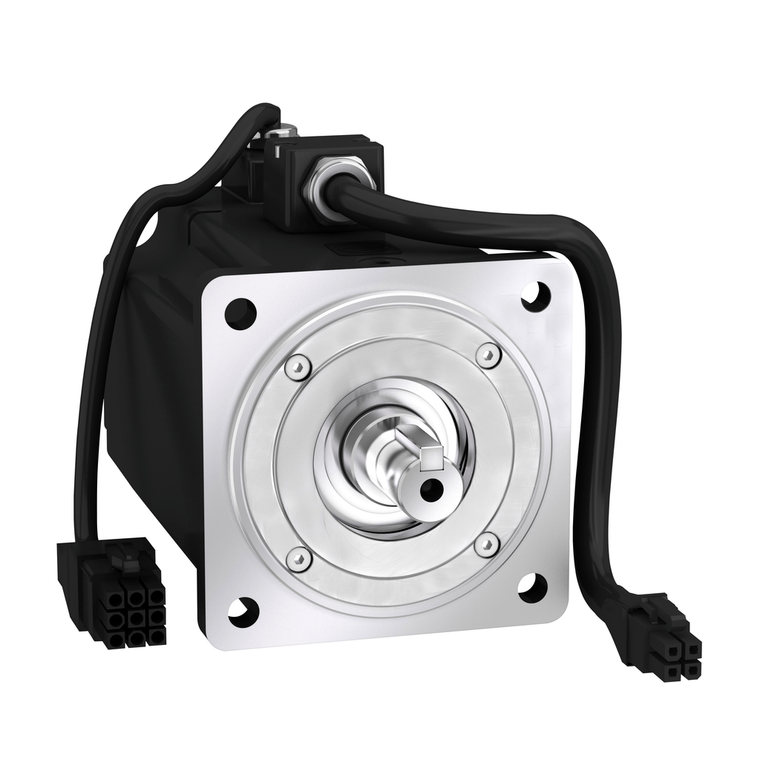

Schneider Electric BCH2HF0733CF5C 80Mm 750W 20Bit E. Oil S. Key Brk Leads

(No reviews yet) Write a Review

Write a Review

Schneider Electric BCH2HF0733CF5C 80Mm 750W 20Bit E. Oil S. Key Brk Leads

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

BCH2HF0733CF5C

UPC:

3606480733796

MPN:

Condition:

New

Number Of Mounting Holes:

4

Circle Diameter Of The Mounting Holes:

90 mm

Reach Free Of Svhc:

Yes

Product Compatibility:

LXM26D servo drive 0.75 kW, 220 V, single phase || LXM26D servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 220 V, single phase || LXM28... servo drive 0.75 kW, 220 V, three phase || LXM28... servo drive 0.75 kW, 110 V, single

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mounting Support:

asian standard flange

Net Weight:

3.7 kg

Ip Degree Of Protection:

IP50 IM V3 || IP65 IM B5, IM V1

Key Width:

6 mm

Pvc Free:

Yes

Back Emf Constant:

36 V/krpm 20 °C

Phase:

single phase || three phase

Distance Shaft Shoulder-Flange:

4 mm

Sustainable Offer Status:

Green Premium product

Rotor Inertia:

1.59 kg.cm²

Number Of Motor Stacks:

2

Holding Brake:

with

Continuous Stall Current:

4.01 A

Circularity Profile:

ENVEOLI1504002EN

Shaft Diameter:

19 mm

Peak Stall Torque:

7.16 N.m LXM26D 4.5 A, 220 V, single phase || 7.16 N.m LXM26D 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 4.5 A, 220 V, single phase || 7.16 N.m LXM28... 4.5 A, 220 V, three phase || 7.16 N.m LXM28... 9 A, 110 V, single phase

Maximum Permanent Current:

4.29 A

Maximum Axial Force Fa:

115 N

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Environmental Disclosure:

ENVPEP1504002EN

Continuous Stall Torque:

2.39 N.m LXM26D 4.5 A, 220 V, single phase || 2.39 N.m LXM26D 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase

Stator Electrical Time Constant:

4.07 ms 20 °C

Ambient Air Temperature For Operation:

0-40 °C

Device Short Name:

BCH2

Range Compatibility:

Lexium 28

Stator Resistance:

1.5 Ohm 20 °C

Mercury Free:

Yes

Maximum Current Irms:

13.23 A LXM28... 0.75 kW, 220 V || 13.23 A LXM28... 0.75 kW, 110 V

Brake Pull-In Power:

10.2 W

Centring Collar Diameter:

70 mm

Holding Torque:

2.5 N.m built-in

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Holes Diameter:

6.6 mm

Nominal Output Power:

750 W LXM26D 4.5 A, 220 V, single phase || 750 W LXM26D 4.5 A, 220 V, three phase || 750 W LXM28... 4.5 A, 220 V, single phase || 750 W LXM28... 4.5 A, 220 V, three phase || 750 W LXM28... 9 A, 110 V, single phase

Electrical Connection:

free lead

Motor Flange Size:

80 mm

[Us] Rated Supply Voltage:

220 V || 110 V

Centring Collar Depth:

4 mm

Length:

178 mm

Nominal Speed:

3000 rpm LXM26D 4.5 A, 220 V, single phase || 3000 rpm LXM26D 4.5 A, 220 V, three phase || 3000 rpm LXM28... 4.5 A, 220 V, single phase || 3000 rpm LXM28... 4.5 A, 220 V, three phase || 3000 rpm LXM28... 9 A, 110 V, single phase

Product Or Component Type:

servo motor

Shaft End:

keyed

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Maximum Mechanical Speed:

5000 rpm

Torque Constant:

0.6 N.m/A 20 °C

Feedback Type:

20 bits single turn absolute encoder

Continuous Power:

750 W

Type Of Cooling:

natural convection

Rohs Exemption Information:

Yes

Stator Inductance:

6.1 mH 20 °C

Maximum Radial Force Fr:

332 N 3000 rpm

China Rohs Regulation:

X

Nominal Torque:

2.39 N.m LXM26D 4.5 A, 220 V, single phase || 2.39 N.m LXM26D 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 4.5 A, 220 V, single phase || 2.39 N.m LXM28... 4.5 A, 220 V, three phase || 2.39 N.m LXM28... 9 A, 110 V, single phase

Shaft Length:

35 mm

Catalog:

View

Datasheet:

View
