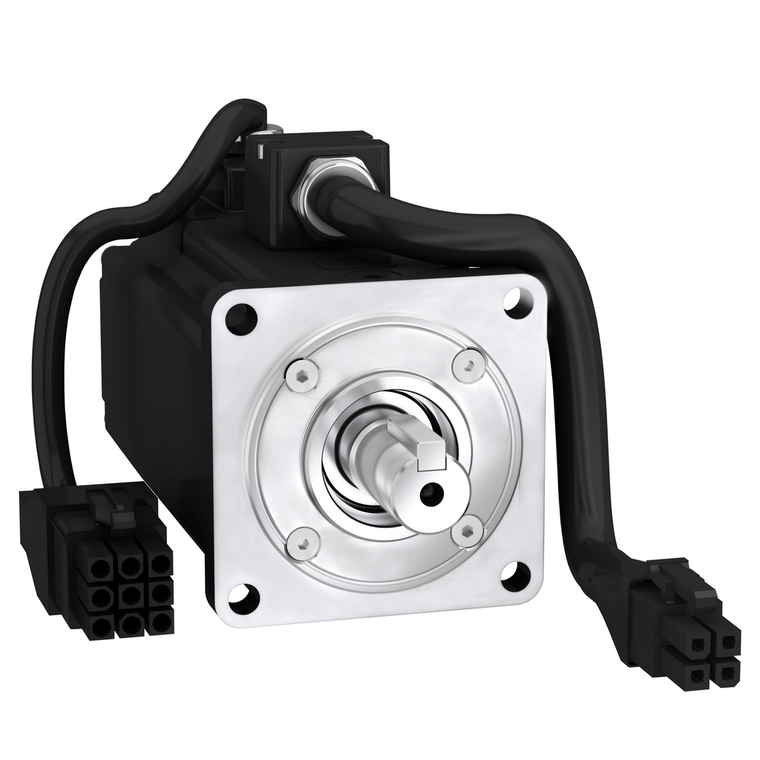

Schneider Electric BCH2LD0431CA5C 60Mm 400W 20Bit E. Key Leads
SKU:
BCH2LD0431CA5C
UPC:
3606480733581
MPN:
Condition:
New
Mounting Support:
asian standard flange
Stator Electrical Time Constant:
2.31 ms 20 °C
Stator Inductance:
12 mH 20 °C
Ambient Air Temperature For Operation:
-20-40 °C
Centring Collar Diameter:
50 mm
Maximum Permanent Current:
2.5 A
Continuous Stall Torque:
1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury Free:
Yes
Electrical Connection:
free lead
Feedback Type:
20 bits single turn absolute encoder
Rohs Exemption Information:
Yes
Brake Pull-In Power:
11.2 W
Range Compatibility:
Lexium 28
Sustainable Offer Status:
Green Premium product
Ip Degree Of Protection:
IP54 IM B5, IM V1 || IP50 IM V3
Mounting Holes Diameter:
5.5 mm
Nominal Speed:
3000 rpm LXM28... 2.6 A, 220 V, single phase || 3000 rpm LXM28... 2.6 A, 220 V, three phase || 3000 rpm LXM28... 5.7 A, 110 V, single phase
Circle Diameter Of The Mounting Holes:
70 mm
Motor Flange Size:
60 mm
Device Short Name:
BCH2
Nominal Torque:
1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Shaft Length:
30 mm
Environmental Disclosure:
ENVPEP1504002EN
Type Of Cooling:
natural convection
Net Weight:
1.45 kg
Distance Shaft Shoulder-Flange:
5.5 mm
Nominal Output Power:
400 W LXM28... 2.6 A, 220 V, single phase || 400 W LXM28... 2.6 A, 220 V, three phase || 400 W LXM28... 5.7 A, 110 V, single phase
Product Or Component Type:
servo motor
China Rohs Regulation:
X
Stator Resistance:
5.2 Ohm 20 °C
Torque Constant:
0.58 N.m/A 20 °C
Maximum Mechanical Speed:
5000 rpm
Reach Free Of Svhc:
Yes
Shaft Diameter:
14 mm
Product Compatibility:
LXM28... servo drive 0.4 kW, 220 V, single phase || LXM28... servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 110 V, single phase
Continuous Power:
400 W
Peak Stall Torque:
3.81 N.m LXM28... 2.6 A, 220 V, single phase || 3.81 N.m LXM28... 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 5.7 A, 110 V, single phase
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Circularity Profile:
ENVEOLI1504002EN
Shaft End:
keyed
Length:
129 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Phase:
single phase || three phase
Number Of Motor Stacks:
2
Maximum Axial Force Fa:
70 N
Pvc Free:
Yes
Key Width:
5 mm
Centring Collar Depth:
5.5 mm
Rotor Inertia:
0.27 kg.cm²
Maximum Current Irms:
7.76 A LXM28... 0.4 kW, 220 V || 7.76 A LXM28... 0.4 kW, 110 V
Back Emf Constant:
35 V/krpm 20 °C
Maximum Radial Force Fr:
200 N 3000 rpm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It...
