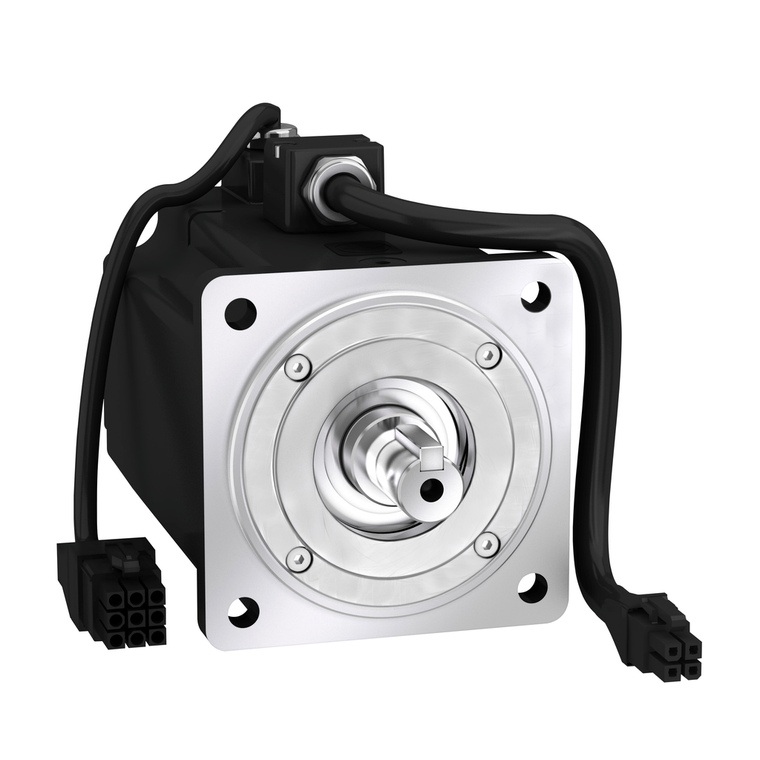

Schneider Electric BCH2LF0432CA5C 80Mm 400W 20Bit E. Oil S. Leads
SKU:
BCH2LF0432CA5C
UPC:
3606480733680
MPN:
Condition:
New
Environmental Disclosure:
ENVPEP1504002EN
Range Compatibility:
Lexium 28
Mounting Support:
asian standard flange
Mounting Holes Diameter:
6.6 mm
Stator Resistance:
3.2 Ohm 20 °C
Circularity Profile:
ENVEOLI1504002EN
Centring Collar Diameter:
70 mm
Shaft Length:
30 mm
Continuous Power:
400 W
Ip Degree Of Protection:
IP50 IM V3 || IP65 IM B5, IM V1
Sustainable Offer Status:
Green Premium product
Torque Constant:
0.55 N.m/A 20 °C
Continuous Stall Current:
2.29 A
Circle Diameter Of The Mounting Holes:
90 mm
Device Short Name:
BCH2
Stator Inductance:
11.3 mH 20 °C
Phase:
three phase || single phase
Back Emf Constant:
33.5 V/krpm 20 °C
China Rohs Regulation:
X
Continuous Stall Torque:
1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Number Of Mounting Holes:
4
Nominal Torque:
1.27 N.m LXM28... 2.6 A, 220 V, single phase || 1.27 N.m LXM28... 2.6 A, 220 V, three phase || 1.27 N.m LXM28... 5.7 A, 110 V, single phase
Maximum Axial Force Fa:
115 N
Nominal Speed:
3000 rpm LXM28... 2.6 A, 220 V, single phase || 3000 rpm LXM28... 2.6 A, 220 V, three phase || 3000 rpm LXM28... 5.7 A, 110 V, single phase
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Motor Flange Size:
80 mm
Rohs Exemption Information:
Yes
Number Of Motor Stacks:
1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Operation:
-20-40 °C
Net Weight:
2 kg
Type Of Cooling:
natural convection
Maximum Current Irms:
7.73 A LXM28... 0.4 kW, 220 V || 7.73 A LXM28... 0.4 kW, 110 V
Centring Collar Depth:
4 mm
Stator Electrical Time Constant:
3.53 ms 20 °C
Reach Free Of Svhc:
Yes
Shaft Diameter:
14 mm
Holding Brake:
without
Maximum Radial Force Fr:
332 N 3000 rpm
Mercury Free:
Yes
[Us] Rated Supply Voltage:
220 V || 110 V
Length:
112 mm
Rotor Inertia:
0.67 kg.cm²
Nominal Output Power:
400 W LXM28... 2.6 A, 220 V, single phase || 400 W LXM28... 2.6 A, 220 V, three phase || 400 W LXM28... 5.7 A, 110 V, single phase
Product Or Component Type:
servo motor
Shaft End:
smooth shaft
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Feedback Type:
20 bits single turn absolute encoder
Maximum Mechanical Speed:
5000 rpm
Distance Shaft Shoulder-Flange:
4 mm
Peak Stall Torque:
3.81 N.m LXM28... 2.6 A, 220 V, single phase || 3.81 N.m LXM28... 2.6 A, 220 V, three phase || 3.81 N.m LXM28... 5.7 A, 110 V, single phase
Brake Pull-In Power:
10.2 W
Electrical Connection:
free lead
Maximum Permanent Current:
2.52 A
Product Compatibility:
LXM28... servo drive 0.4 kW, 220 V, single phase || LXM28... servo drive 0.4 kW, 220 V, three phase || LXM28... servo drive 0.4 kW, 110 V, single phase
This product is part of the Lexium 28 range, an offer of servo motors from 0.05kW to 4.5kW. The servo motor features maximum mechanical speed of 5000RPM and keyed shaft end without holding brake. It...
